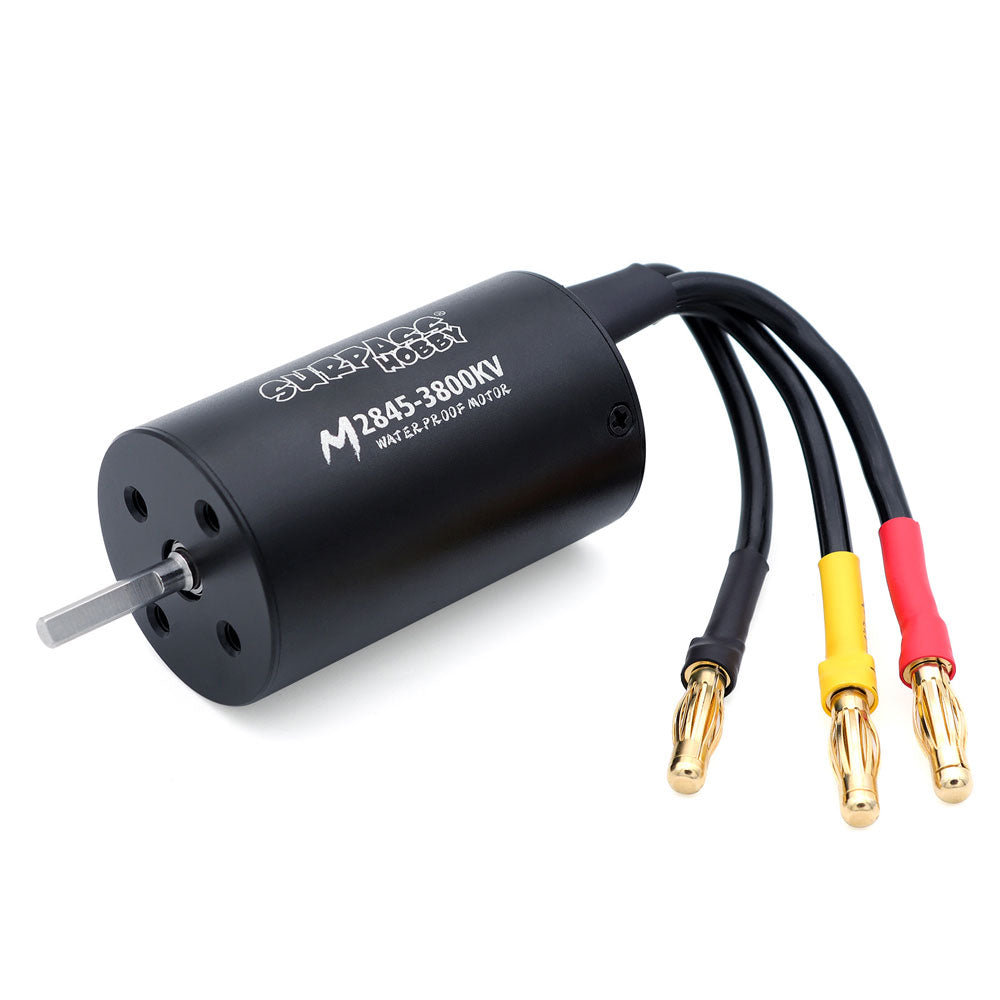

M2845 Brushless Waterproof Motor for 1/12 1/14 Off-Road Flat Sports RC Cars Vehicles Models Parts 4400/3800/3100KV
Description
- Scale: 1:14
- Brand: LinkMejor
- Motor: Brushless
- Color: Black
Description:
Item Number:M2845
Item Name:Brushless motor
Material:Metal
Color:Black
Compatible Model:flat sports off-road 3s 1/12,All series 2s 1/14 rc cars vehicles models
The Specification of the Motor:
M2845 4400KV:
KV:4400
Watts:800
Max Voltage:<11.1V
Max Amps:72A
Rotor Poles:4
IO:3.8A
Resistance:0.0167
Max RPM:50000
Stator Size:φ28*47mm
Weight:115g
Shaft:φ3.175mm
Length of extend shaft:15mm
Connector:4.0mm gold
M2845 3800KV:
KV:3800
Watts:800
Max Voltage:<13.2V
Max Amps:60A
Rotor Poles:4
IO:2.8A
Resistance:0.0203
Max RPM:50000
Stator Size:φ28*47mm
Weight:115g
Shaft:φ3.175mm
Length of extend shaft:15mm
Connector:3.5mm gold
M2845 3100KV:
KV:3100
Watts:800
Max Voltage:<15.8V
Max Amps:51A
Rotor Poles:4
IO:2.0A
Resistance:0.0295
Max RPM:50000
Stator Size:φ28*47mm
Weight:115g
Shaft:φ3.175mm
Length of extend shaft:15mm
Connector:3.5mm gold
Feature:
1. 4 Pole 12 Slot Hi-torque rotor design, stable output power.
2. High hardness aluminum CNC case, 0.35mm stator.
3. High Purity High temperature resistance Copper Windings Maximizes Efficiency.
4. High precision and high quality ABEC5 large bearing, smooth and wear- resistant.
5. Removable/replaceable explosion-proof high-precision balancing rotor.
6. Fits all1/14th or 1/16thscale BL cars, 4 of M3 screw mounting holes.
Package included:
1x M2845 All Black Waterproof Brushless Motor
