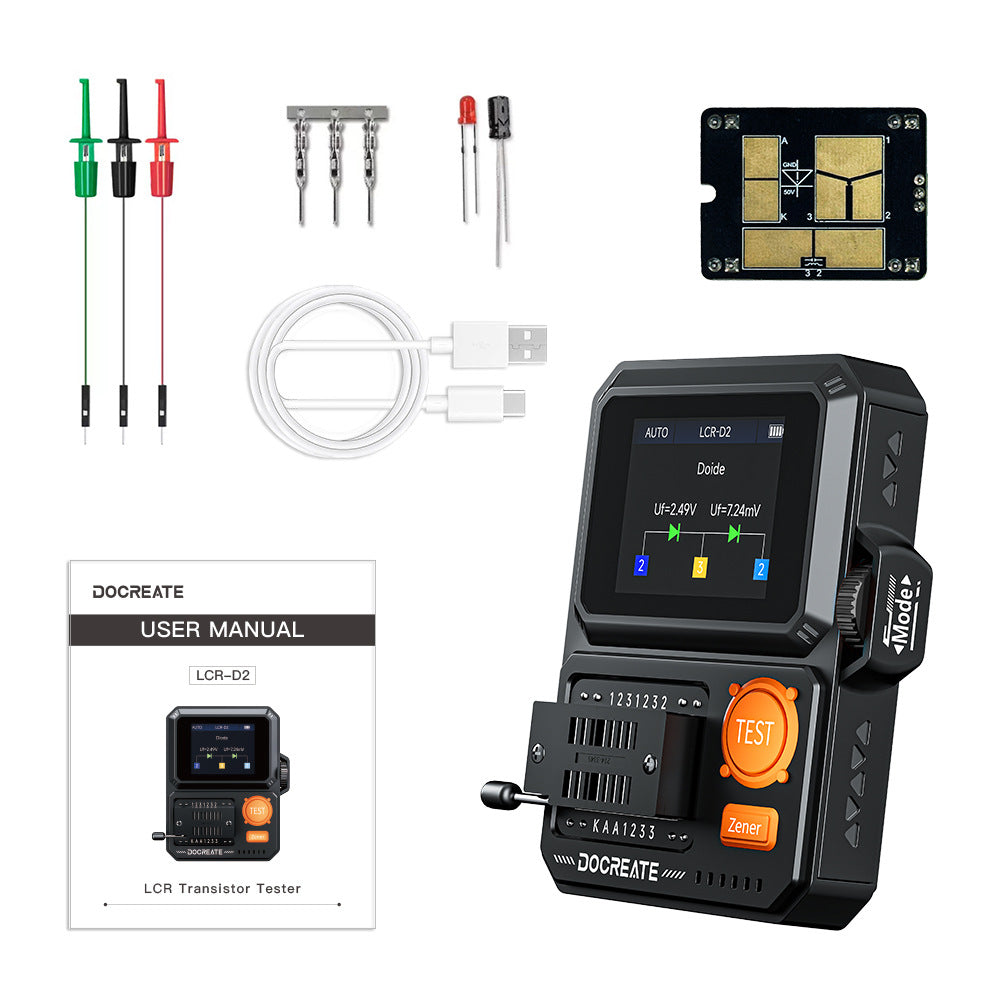

LCR-D2 Transistor Tester Digital LCR ESR Meter SMD Component Analyzer with IR Decoder for Diode Capacitor Inductor Resistor MOSFET IGBT
Description
Specification
Product Name |
LCR Transistor Tester |
|
Product Model |
LCR-D2 |
|
Operating Current |
90mA (Non-Zener Mode) |
|
Operating Current |
150mA (Zener Mode) |
|
| ||
Type |
Scope |
Illustrate |
BJT |
10 < β < 600 |
Magnification (hFE), Base-Emitter Voltage (Ube), Ic/Ie, Collector-Emitter cutoff current (Iceo, Ices), Protection diode Uf |
Diode |
Forward Voltage Drop > 4.5V |
Forward voltage drop, Junction Capacitance, Reverse leakage current |
Zener Diode |
0.01-45V |
Reverse breakdown voltage (KAA) |
FET |
JFET, MOSFET |
Gate capacitance (Cg), Drain current (Id) at Vgs, Turn-on voltage (Vt), Drain-source resistance , Protection diode (Uf) |
IGBT |
Turn-on voltage < 5 V |
Turn-on voltage (Vt), Gate capacitance (Cg), Drain-source resistance , Protection diode forward voltage drop (Uf) |
SCR |
Gate trigger current < 6mA |
Gate turn-on voltage (Only identifies components with holding current < 6mA) |
Triac | ||
Capacitor |
25pF-100mF |
|
