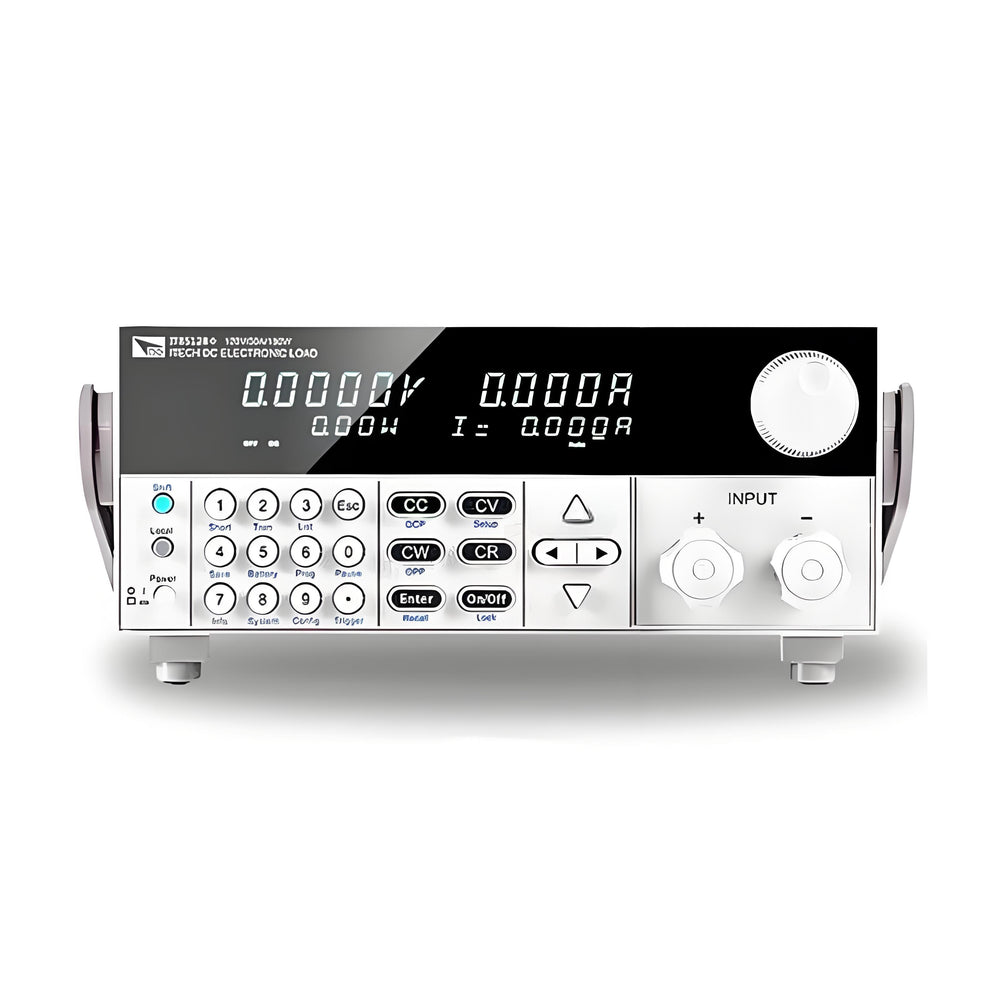

IT8512A+/IT8512B+ Programmable DC Electronic Load Meter 300W High Resolution Multiple Modes Enhanced Testing Functions

Specifications:

IT8512B+

- Voltage: 500V

- Current: 15A

- Power: 300W

- Resolution: 0.1mV, 0.1mA

IT8512A+

- Voltage: 150V

- Current: 30A

- Power: 300W

- Resolution: 0.1mV, 1mA

Features:

1. High Dynamic Mode Frequency: Operates in dynamic mode up to 10kHz, allowing precise adjustments and testing under varying conditions.

2. Versatile Working Modes: Includes four modes - constant voltage (CV), constant current (CC), constant resistance (CR), and constant power (CP) to meet different testing requirements.

3. Enhanced Resolution: Features high resolution of 0.1mV for voltage and 0.1mA for current, enabling accurate measurements.

4. Comprehensive Testing Functions: Equipped with battery test, automatic test, OPP test, and OCP test functions for extensive evaluation of electronic components.

5. User-Friendly Design: Incorporates a rotary coding switch for straightforward and efficient operations.

Package Included:

1 x Electronic Load Meter

1 x User's Manual
