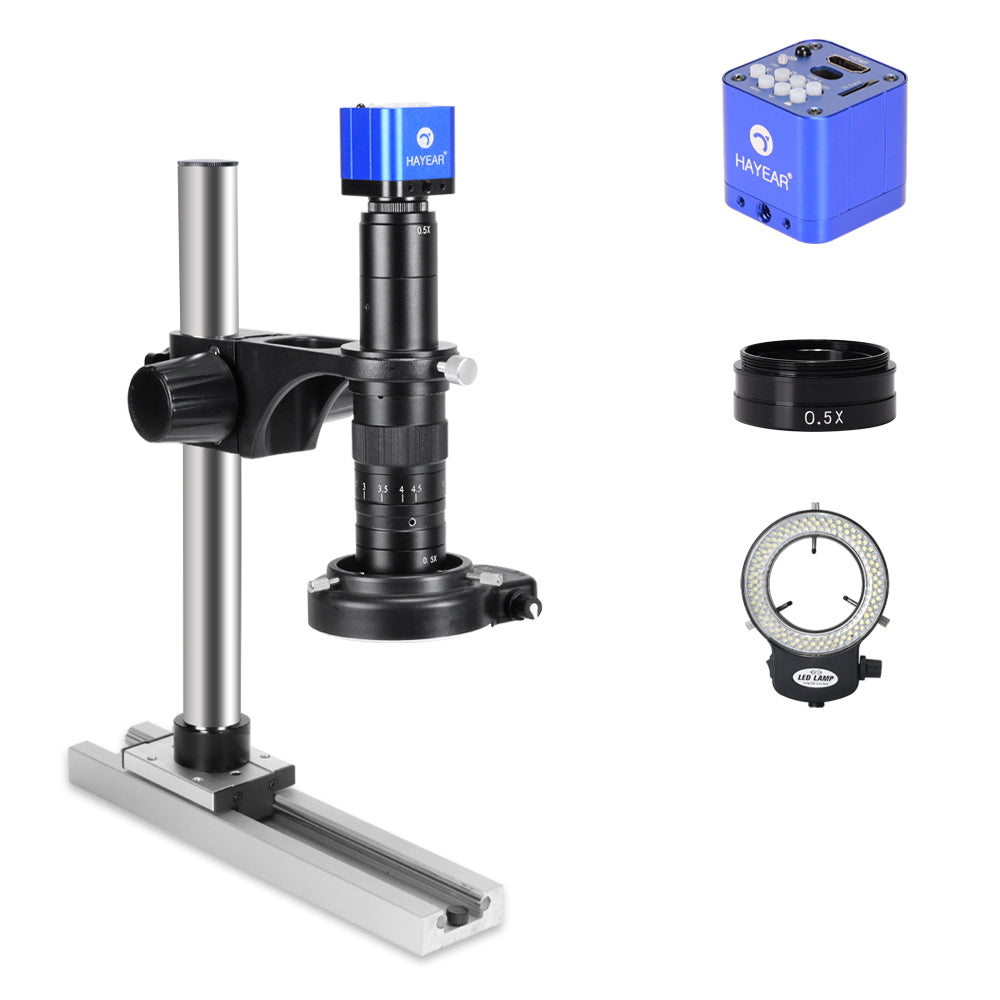

HY-5100 24MP Digital Microscope Camera 180X Lens HDM USB LED Ring Light for Mobile Phone Repair Soldering Tools

Specifications:

Item Type: Microscope Camera

Model: HY-5100

Sensor: 24MP CMOS

Optical Format: 1/2.9 inch

Pixel Size: 2.85 μm x 2.85 μm

Interface: HDM (Type A), USB (Type B), Small Memory Card

Photographic Image Resolution: 16MP (4K: 4680 x 3456)

HDM Resolution: 1920 x 1080P

HDM Scale: 4: 3, 16: 9, 16: 10 screen support

USB2.0 Resolution: 1920 x 1080 at 30FPS, 1280 x 720 at 30FPS, 640 x 480 at 30FPS

Small Memory Card: Up to 128GB (not included)

Exposure: Automatic/manual

Cross Line: 8 lines, customizable color, width, and position

Sharpness Contrast Color Gain: Supported

Digital Zoom: Supported

Infrared Remote Control: Supported

Voltage Input: DC 12V

Power Adapter Input: AC100-240V, Output: DC12V

Lens Interface: C/CS port

Lens Working Distance: 100mm (0.5X Microscope Auxiliary Objective Lens: 200mm)

LED Life Span: 100,000 hours

LED Ring Light Inner Diameter: Approx. 27mm (1.1in)

LED Ring Light Outer Diameter: Approx. 45mm (1.8in)

LED Ring Light Working Distance: Approx. 27-120mm (1.1-4.7in)

Features:

High-Resolution Sensor: 24MP CMOS sensor for sharp photographic images and videos with a resolution up to 16MP (4K: 4680 x 3456).

Versatile Interface Options: HDM, USB2.0, and small memory card interfaces for flexible connectivity and storage options.

Advanced Imaging Functions: Supports digital zoom, color correction, and sharpness contrast color gain with an easy-to-use infrared remote control.

Adjustable LED Lighting: 144 bright LEDs with variable lighting direction and power control provide strong, shadowless illumination.

Comprehensive Language Support: Available in multiple languages including English, Chinese, French, Spanish, Japanese, and German for user convenience.

Package Included:

1 x Microscope Camera

1 x IR Remote Control

2 x Power Adapter

1 x 180X Lens

1 x 144-LED Ring Light

1 x 50mm Slide Rail Base Bracket

1 x Paper Manual
