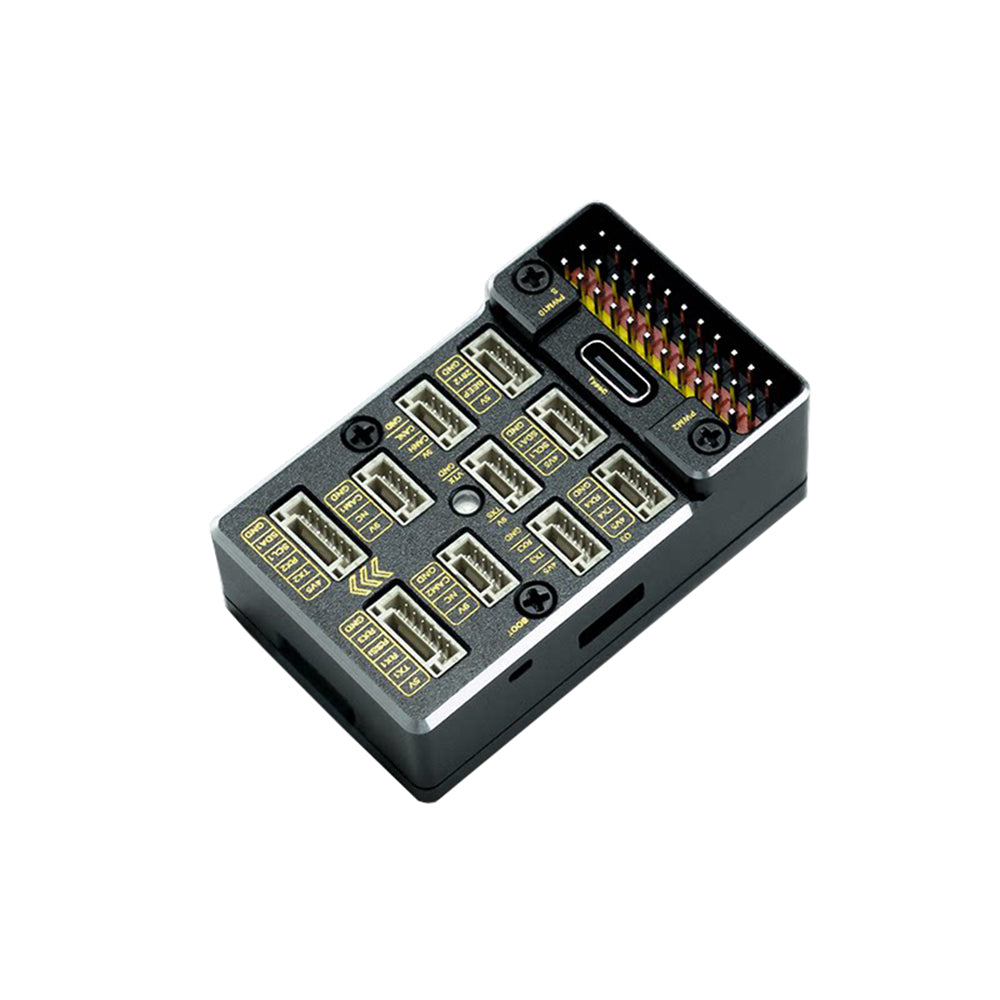

H743 Air Pro Flight Controller with bluetooth Module 5V/5A BEC Support AP/INAV Firmware For RC Airplane
Description
Specifications:
Model: H743 Air Pro
Main Control Chip: STM32H743, 480MHz, 2MB Flash
Gyroscope (IMU): ICM45686 + BMI270
Barometer: SPA06-003
OSD Chip: AT7456E
Bluetooth (BLE): Supported (external module)
Wi-Fi: Supported (external module)
Black Box Storage: CSNP1GCR01-BOW (onboard SD NAND, 128MB)
UART Ports: 5 sets
I2C Interfaces: 2x (SPA06-003 internally connected to I2C1)
ADC Interfaces: 5x (2x voltage, 2x current, 1x RSSI)
PWM Interfaces: 10x
ELRS/CRSF Receiver: Supported
SBUS Input: Supported
RGB LEDs: Onboard 1x RGB + 1x WS2812 LED strip interface
Supported Firmware: INAV/ArduPilot (factory default)
Input Voltage: 9–25.2V (3–6S LiPo); direct PDB connection up to 33.6V (8S requires external 50V capacitor)
TVS Diode: Included
Flight Controller BEC: 5V/5A
Video Transmitter/Camera BEC: 9V/3A
Servo BEC: 5.5V/10A
Pre-soldered Header+Bluetooth Module Version Included:
1 x H743 AIR PRO Flight Controller Mainboard
1 x Solderable Modular PDB
2 x 4P GH1.25 Cable
1 x 6P SH1.0 Cable
2 x 6P GH1.25 Cable
1 x Solid-state Capacitor
1 x Bluetooth Configuration Module
Pre-soldered Header+Bluetooth Module+GPS Version Included:
1 x H743 AIR PRO Flight Controller Mainboard
1 x Solderable Modular PDB
2 x 4P GH1.25 Cable
1 x 6P SH1.0 Cable
2 x 6P GH1.25 Cable
1 x Solid-state Capacitor
1 x Bluetooth Configuration Module
1 x GPS Module
FC with bluetooth module+Airspeed sensor Version Included:
1 x H743 AIR PRO Flight Controller Mainboard
1 x Solderable Modular PDB
2 x 4P GH1.25 Cable
1 x 6P SH1.0 Cable
2 x 6P GH1.25 Cable
1 x Solid-state Capacitor
1 x Bluetooth Configuration Module
1 x Airspeed sensor
FC with bluetooth+GPS+Airspeed sensor Version Included:
1 x H743 AIR PRO Flight Controller Mainboard
1 x Solderable Modular PDB
2 x 4P GH1.25 Cable
1 x 6P SH1.0 Cable
2 x 6P GH1.25 Cable
1 x Solid-state Capacitor
1 x Bluetooth Configuration Module
1 x GPS Module
1 x Airspeed sensor
