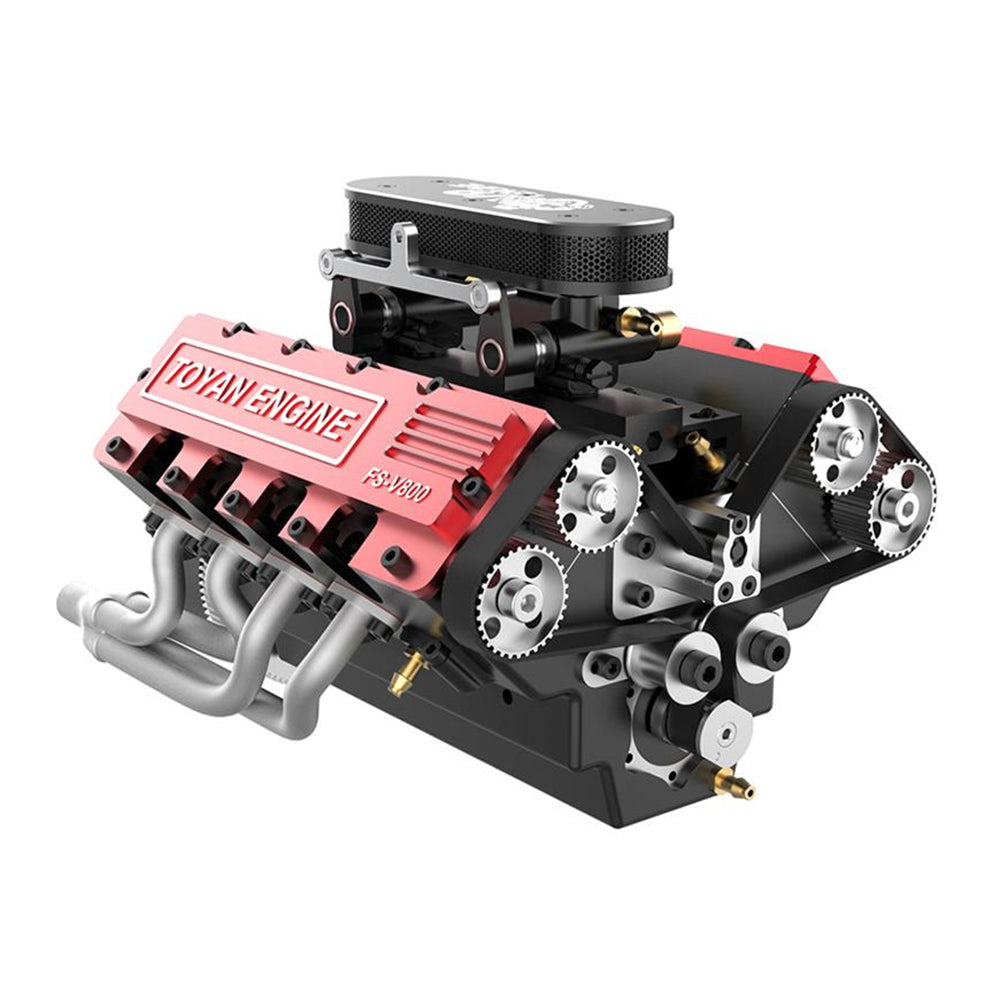

FS-V800 AC 1/10 V8 Four-Stroke Water Cooling 28cc Nitro Engine DIY Assembly Kit Build Your Own V8 Engine That it Works Physics Experiment Science Education Toys

Specification:

Model FS-V800 AC
Scale:1/10
Name:V8 Nitro Engine
Form:KIT (Set Parts)
Material:Metal
Color:Red and Black
Dimensions:123.42*32.0*127.3mm
Weight:2.05kg
Cylinder:V8
Stroke:Four-Stroke
Displacement:28 (3.5*8)cc
Bore:16.67mm
Stroke:17.00mm
Angle:90°
Speed:1800-12500rpm
Power:4.35ps@11200rpm
Cooling Method:Water Cooling
Starting Method:Electric Start (including starter motor)
Ignition Method:Two 4-in-1 (or 8-in-1) regulated ignition modules
Glow Plug Type:F-type four-stroke glow plugs
Lubrication Method:Splash lubrication (add a small amount of grease to the camshaft)
Fuel Type:20-25% Nitro Fuel
Starting Voltage:7.4V (Not included)

Product Features:
1. Miniature Simulation: 1/10 scale miniature real V8 internal combustion engine, with a racing engine-like visual appearance, red sports element design, and highly realistic shape.
2. Long Stroke: Based on the long stroke engine design, effectively providing higher torque. Customized flexible oil seals ensure sealing performance at high speeds.
3. Mechanical Water Cooling: Built-in mechanical water-cooled pump, powered by the crankshaft, providing circulation power to the coolant. A cooling fan can be added later to enhance self-cooling performance.
4. Precision Rocker Arm: Alloy rocker arms with independent intake and exhaust design for more precise valve operation.
5. One-Piece Crankshaft: Utilizes a 90-degree cross-shaped crankshaft structure; three-section support design, bearings at both ends, and a central bearing; resulting in smoother operation, more responsive acceleration, and a maximum speed of 12,500 rpm.
6. Dual Synchronous Belt Pulleys: Dual synchronous belt pulley timing structure significantly reduces the risk of gear skipping at high speeds.
7. Precision Carburetor: A brand-new dual carburetor design with a pump allows for more precise tuning, resulting in more responsive throttle and more stable operation.
8. One-Piece Exhaust Manifold: A compact, one-piece exhaust manifold made with advanced machining processes, giving the V8 engine a deeper and more powerful sound.
9. Lightweight Design: Lightweight structural design ensures better compatibility with RC models, significantly improving power-to-weight ratio.
10. DIY: High-precision parts manufacturing, a strong mechanical feel, and a smooth assembly experience provide users with a whole new level of enjoyment, allowing them to build their own V8 engine. 11. Wide Applications: Can be used as a desktop power engine model for play, can be modified for RC model cars or boats, can be used as a physics and mechanics teaching aid, and can be a high-end holiday gift for model enthusiasts.

Warm Reminder:
- The engine is a kit version and requires separate purchase of ignition and water cooling accessories. Please contact us if you have any questions.

Package included:
1 x TOYAN FS-V800 AC V8 Four-Stroke Nitro Engine DIY Assembly Kit
1 x Tool Kit
1 x Instruction Manual
