FR206E DC Power Clamp Multimeter 1700V 600A True RMS 6000 Counts Electrical Tester for Industrial New Energy Solar Power Generation Systems - Green

Specification

DC Power (kVA): 1020kVA

DC Current (A): 60A / 600A

AC Current (A): 60A / 600A

DC High Voltage (V): 1700V

AC High Voltage (V): 1000V

DC Voltage (V): 600V

AC Voltage (V): 600V

ACV / Bandwidth (Hz): 1kHz

ACA / Bandwidth (Hz): 60Hz

Frequency (ACV Hz): 60kHz

Resistance (Ω): 600Ω ~ 600kΩ, 6MΩ ~ 60MΩ

Capacitance (F): 6nF~600uF,6mF / 60mF

Temperature (°C): 1000°C

Temperature (°F): 1832°F

Display Counts: 6000

Auto Range: Yes

True RMS: Yes

ACV VFD: Yes

Continuity / Diode: Yes

Auto power off: Yes

Backlight / Torch: Yes

Battery: AAA1.5V×2

Category Ratings: CAT III 300V CAT II 600V

Features

1) Measures high DC voltage up to 1700V, perfect for new energy and solar power system circuit testing.

2) True RMS function ensures accurate measurement of both sinusoidal and non-sinusoidal AC waveforms.

3) Large 6000 counts display with backlight and torch allows for clear readings in various lighting conditions.

4) VFD mode provides precise voltage and frequency readings on variable frequency drive systems.

5) Auto-ranging capability automatically selects the appropriate measurement range for increased efficiency.

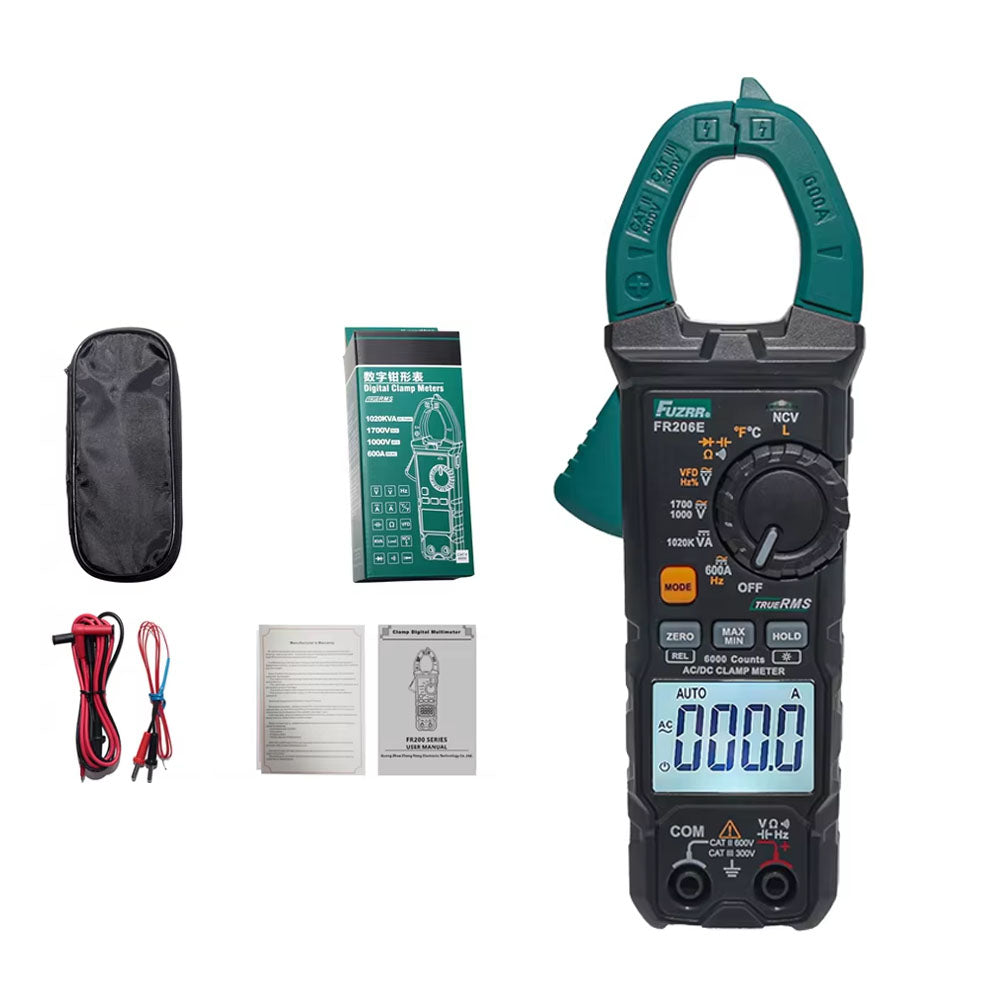

Package included

1 x FUZRR FR206E Digital Clamp Meter

1 x Test Leads

1 x Carrying Bag

1 x User Manual

1 x Packing Box
