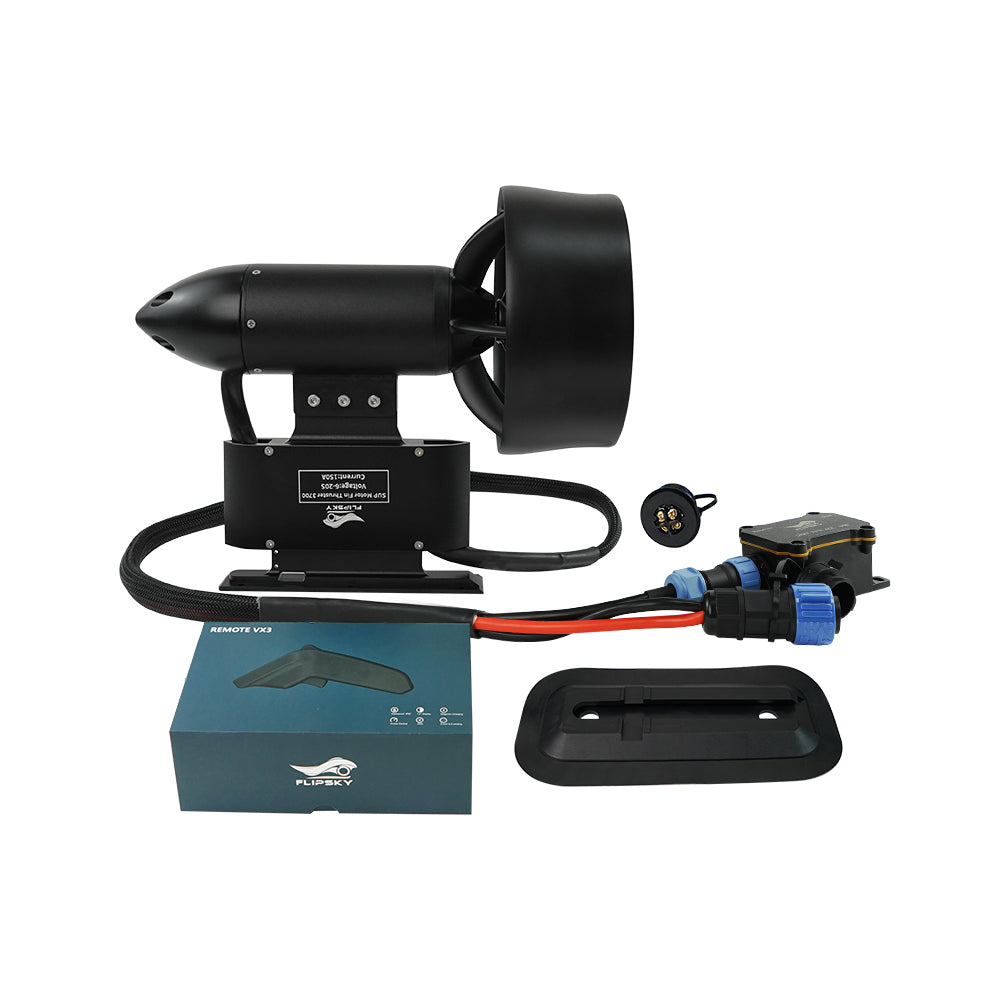

for SUP Motor Fin Thruster 3700 6600W Waterproof Underwater Thruster Electric Boat Thruster for Motor Kayak Paddle Surf Board /Jet boards /Outboard motor / Drive Boat Jet Parts
Description
Attention:This product do not include battery and glue,you need to prepare them by yourself
Description:
Item Name:for SUP Motor Fin Thruster
Material:Aluminum alloy and electronic parts
Color:Black
Suitable For:Waterproof Underwater Thruster Electric Boat Thruster for Motor Kayak Paddle Surf Board /Jet boards /Outboard motor / Drive Boat Jet
Motor Specification:
Voltage Range: 6-20S (24V-84V)
Rated Power: 3700W ; Max Power: 6600W
Waterproof level: IP68
Battery Box Parameters:
Battery Casing Dimensions: 240*158*135mm (including handle height)
Waterproof Rating: IP67
Battery Casing Material: Aluminum Alloy
Voltage: 50.4V
Cell Specifications: Molicel P42A 21700
Battery Capacity: 12S 4P 16.8AH/846.72WH/16800mAh
Charger: 50.4V 6A
ESC Specification:
ESC Model: FT85CS_WP (Waterproof ESC)
Voltage: 24V-84V (safe for 6-20S)
Continuous Current: 75A
Peak Current: 100A
ESC Drive Method: UART
Programmable Tool: Flipsky ESC TOOL
Power Cord Length: 1.2 m
Signal Cord Length: 1.3 m
Remote Controller Specification:
Remote Control: VX3
Control Mode: UART
Remote Distance: 25 meters straight line, interference-free
Waterproof Rating: IP68
Adjustable Speed Settings: 3 levels (L/M/H), H level is the highest
Functions: Cruise control, GPS, Speed display, Battery level display
Thrust Test
|
Power W |
Thrust KG |
| 500 | 12 |
| 1000 | 22 |
| 1500 | 27 |
| 2000 | 33 |
| 2500 | 36 |
| 3000 | 40 |
| 3300 | 42 |
| Speed | The specific speed depends on the type of boat and the environment in which it is used. The actual speed measured on calm water with a 350*81*15cm paddleboard is 28 km/h. |
With Remote Controller Package Included:(optional chosen by yourself)
1X Motor
1X VX3 Remote Controller
1X VX3 Receiver
Without Remote Controller Package Included:(optional chosen by yourself)
1X Motor
