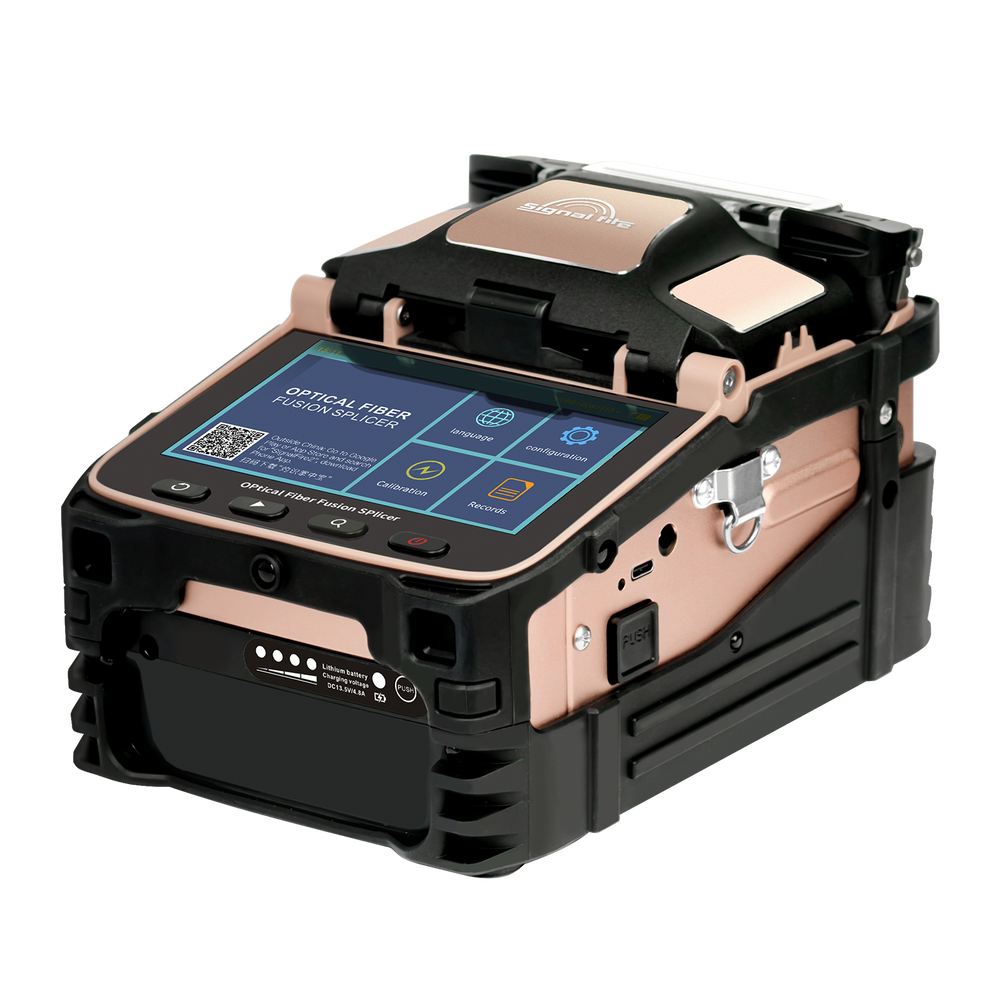

FIRE AI-12 Optical Fiber Fusion Splicer 6 Motors Core Cladding Alignment 5 Inch Touchscreen 7800mAh Battery Bluetooth 4.2 Optical Power Meter VFL

Product Name: SIGNAL FIRE AI-12 Optical Fiber Fusion Splicer

Fiber alignment: Core/cladding

Motor number: 6 motors, accurate of fiber alignment: 0.05 μm

Splicing time: 6s

Heating mode: 15s, can be customized according to the external environment

Fiber type: Single-mode fiber (SMF/G.652), multimode fiber (MMF/G.651), dispersion-shifted fiber (DSF/G.653), G.654 fiber, non-zero dispersion-shifted fiber (NZ-DSF/G.655), and bend-insensitive fiber (BIF/G.657); suitable for splicing bare fiber, pigtail, drop fiber, patch cord, and invisible fiber

The cladding diameter: 80-150 μm

Splicing loss: 0.02 dB (SM), 0.01 dB (MM), 0.04 dB (DS/NZDS)

Fiber identification: Automatic fiber recognition (in AUTO mode)

Splicing mode: Automatic focusing core alignment, conventional/high precision welding

Splicing way: Automatic, semi-automatic

Fiber holder: Three in one fixture, no need to change, suitable for single/multi-mode, multi-core cable/bare fiber, tail fiber, jumper, leather cable

Battery capacity: 7800mAh large capacity lithium battery, charging time ≤3.5 hours; it can continuously weld and heat about 260 cores

Magnification: 320x (X or Y axis single display), 200x (X and Y axis dual display)

Fiber diameter: Coating diameter: 80-150 μm / Coating diameter: 100-1000 μm

Cutting length: Coating layer 250 μm below: 8-16mm / coating layer 250-1000 μm: 16mm

Heat shrink tube: 60mm, 50mm, 40mm, 25mm

Tensile testing: Standard 2N

Display: 5-inch color touchscreen

Boot time: 1s, boot can enter the working mode

Data is stored: Unlimited, machine storage 1000 groups, the excess part can be stored in the server, can export data

Wireless communication: Based on bluetooth 4.2 protocol standard, the working band is 2.4GHz, the maximum transmission range is 60m

Software upgrade: Mobile phone APP Internet update, enable Bluetooth synchronization upgrade machine software

Management function: The equipment owner can be bound as the highest authority, and can remotely view the welding records, welding time, loss, etc. through the mobile phone APP. The number of welding times or working time of the equipment can be set. The manager can effectively manage a single or multiple equipment

Return loss: Better than 60 db

Product protection: Waterproof, dustproof and fall proof

Charging method: Three charging ports; the battery can be removed for charging, Type-C supports bidirectional charging and discharging (can charge mobile phones), with a maximum power of 45W

Power supply: Input AC100-240V 50/60Hz, output DC13.5V/4.8A, the current power mode can be identified, real-time monitoring of the current battery level

The work environment: Temperature: -15 to +50°C, humidity: < 95%RH (no condensation), working altitude: 0-5000m, maximum wind speed: ≤15m/s

Visual Fault Locator: Power: 15mw, 2hz flashing and constantly bright mode

Optical Power Meter: Wavelength: 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, 980nm, 1270nm, 1577nm, 1650nm; Measuring Range: -50+26dbm; Absolute Error: <0.3db (-50dbm ~ +3dbm Range)

Machine size: 198 x 135 x 122 mm

Machine weight: 2.10 kg (with battery), 1.68 kg (without battery)

Toolbox size: 270 x 237 x 293 mm

Toolbox weight: 6.95 kg (including machine and accessories)

1. Core/cladding alignment with 6 motors and 0.05 μm fiber alignment accuracy supports precise splicing performance.

2. Fast 6s splicing time and 15s heating mode improve working efficiency in daily fiber splicing tasks.

3. Three in one fiber holder fits SM, MM, bare fiber, pigtail, drop cable, and multi fiber cable without changing the fixture.

4. 5-inch color touchscreen, 1s boot time, Bluetooth 4.2, APP update, and remote record management support convenient operation.

5. Integrated preheating function in winter, cooling rack integration, and heating part compatible with SOC fiber add practical use in different jobs.

1 x Toolcase

1 x Fusion Splicer

1 x Versatile Fighter (Integrated fiber stripper and cleaver, includes 10 cleaning cotton balls)

1 x Spare electrode

1 x Alcohol Bottle

1 x Brush

1 x Toolbox strap

1 x Belt

1 x Power Adapter

1 x Allen key

1 x Inner hexagon

1 x Fiber for ARC

1 x User's manual
