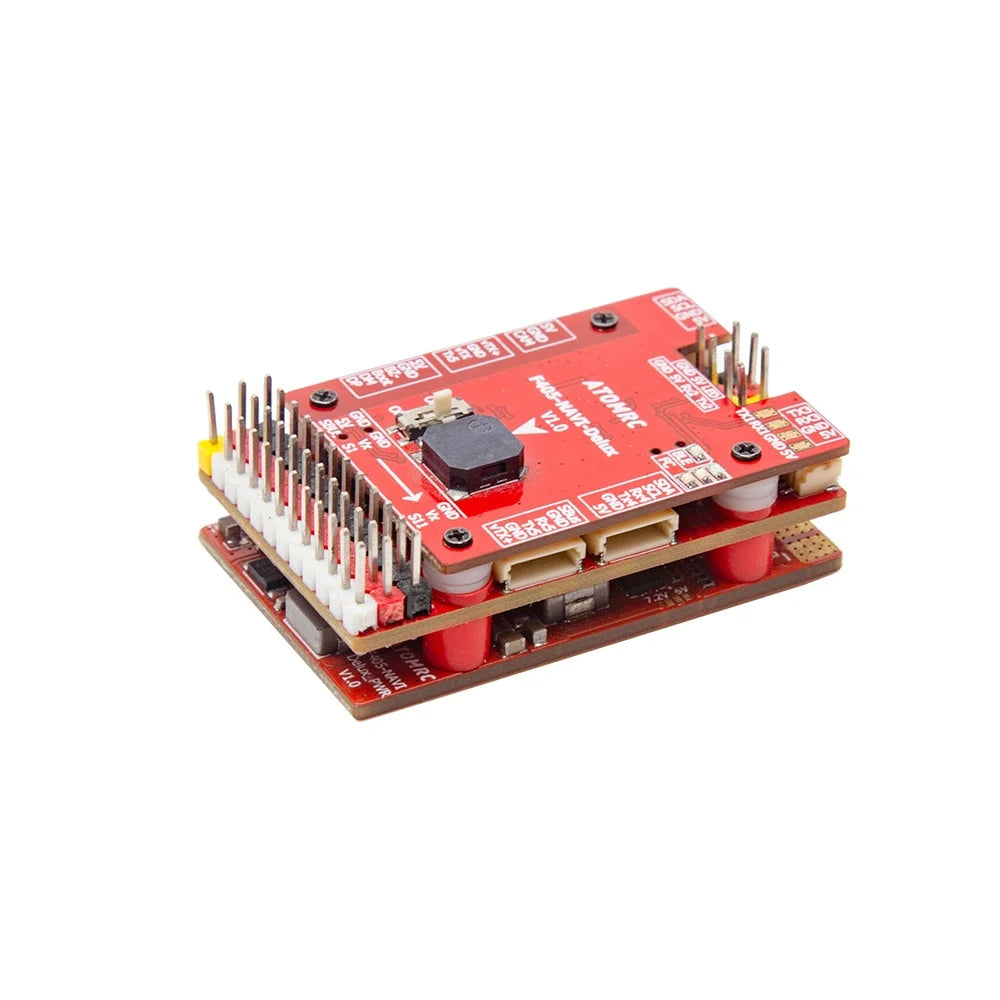

F405 NAVI Delux Module Flight Controller For FPV RC Airplane Fixed Wing Shock Absorption Support DJI Air Unit INAV - Red

Specification:

Model: F405 NAVI Delux

MCU: STM32F405RGT6

IMU: BMI270

Black Box: 16Mb

Servo BEC: 5V/6V/7.2V

VTX BEC: 9V

CAM BEC: 12V/5V

PWM Output: PWM*11

Uart: Uart+6

External USB-C Port: Buzzer/BOOT/Type C

LED: WS2812 LED Strip

Firmware: ArduPilot:ATOMRC F405 NAVI Delux; INAV:ATOMRC F405 NAVI Delux

Ammeter: 200A

Voltage Input: 12~30V (3~6S Lipo)

Mount Hole: 30×24x3 (mm)

Weight: 29g

Size: 50×31×17 (mm)

Feature:

1. Powerful MCU for Smooth Control: Integrated STM32F405RTG6 chip ensures high-speed processing and stable operation, ideal for INAV and ArduPilot firmware compatibility.

2. Built-in Bluetooth and WiFi Module: Equipped with Bluetooth module and WiFi functionality for convenient wireless parameter adjustments.

3. High Precision Sensors: Comes with BMI270 IMU and 200A current sensor for enhanced flight safety and precise telemetry readings.

4. Optimized Structural Design: Compact layered build with reduced heat dissipation interference for more efficient performance in tight installation spaces.

5. Versatile BEC Options: Supports multiple outputs including 5V/6V/7.2V servo BEC and 12V/5V camera BEC, accommodating diverse power needs.

Package Included:

1 x F405 NAVI Delux V1.1

1 x F405 NAVI Delux PWR V1.1

1 x F405 NAVI Delux BLE V1.1

4 x M2*11 Copper Column

12 x 1.0 White Shock-Absorbing Pads

8 x M2*4.5*2.6 Flat Head Cross Screws

1 x F405 NAVI USB L=70mm

1 x F405 NAVI DJI L=400mm

1 x F405 NAVI GPS L=150mm

1 x F405 USB Small Board

1 x F405 USB Small Board 3M Adhesive

1 x F405 NAVI CAM 3PIN L=300mm

2 x F405 NAVI UART 4PIN L=300mm

1 x DuPont 4PIN L=300mm

1 x DuPont 3PIN L=300mm

1 x 16AWG Red and Black Power Cable L=300mm

1 x F405 NAVI Delux Flight Controller 3M Adhesive

1 x 50V 1000uf Capacitor

1 x XT60 Connector
