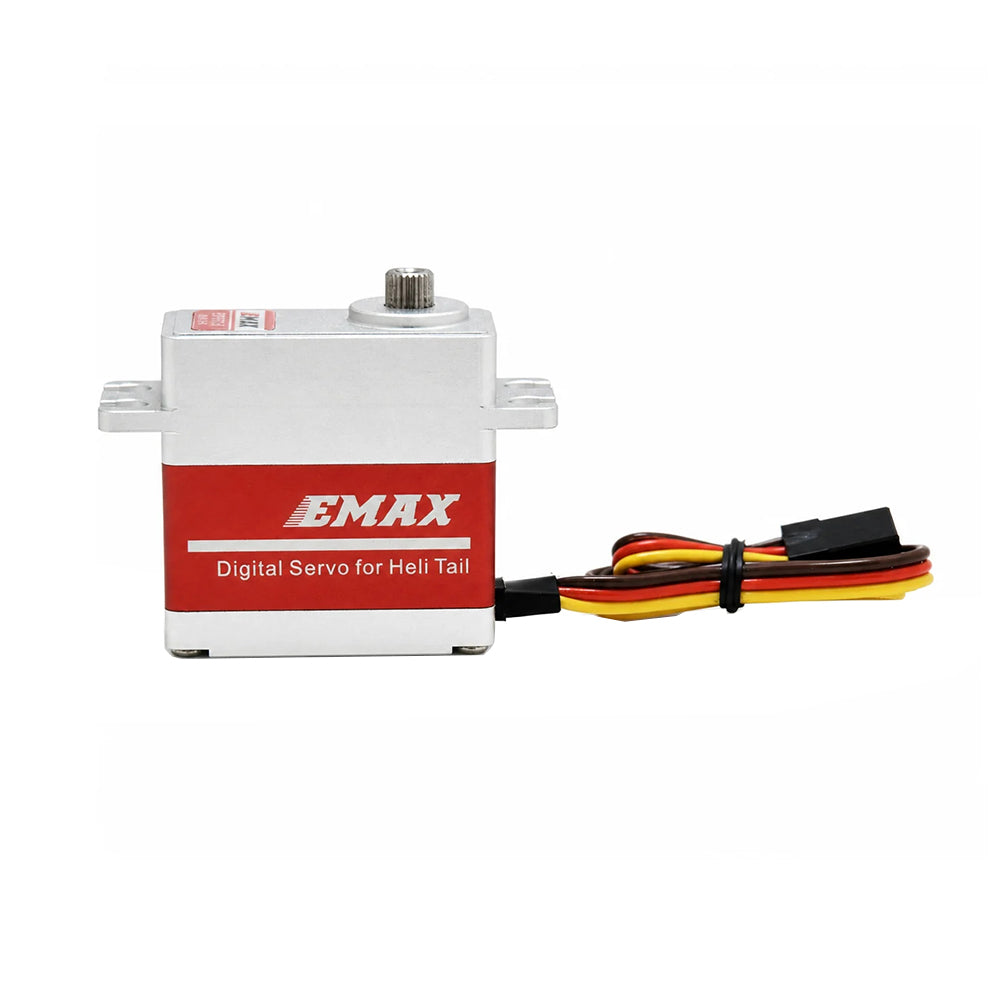

ES9054II 25KG 0.09sec Magnetic Encoder Digital All-Metal Servo for Helicopter Fixed-wing Aircraft Drone Robot

Specifications:
Model: ES9054II
Product Name: Magnetic Encoder / Brushed / Digital / All‑Metal Servo
Operating Voltage: 6.0‑8.4V
Speed (6.0 / 7.4 / 8.4V): 0.12 / 0.10 / 0.09 sec/60°
Stall Torque (6.0 / 7.4 / 8.4V): 18 / 22 / 25 kgf‑cm
Stall Current: Approx. 4.0‑5.5A (typical reference range)
Net Weight: 72 ±1g
Dimension: Approx. 40 × 20 × 38.5mm
Rotation Angle: 180° ±2°; supports 360° full‑range positional control
Connector: JR
Output Spline: 23T
PWM Range: 500‑2500μs

Feature:
-Balances response speed, torque output, and control precision.
-Supports the voltages, dimensions, and optional specifications listed on the page.
-Suitable for applications such as drones, robots, and RC models.

Application Scenarios:
-Large fixed-wing aircraft control surfaces
-RC helicopter tail assemblies
-Robotic joints and rotating mechanisms
-High-torque RC and automation platforms

Package Included:
1 x ES9054II Magnetic Encoder Servo
