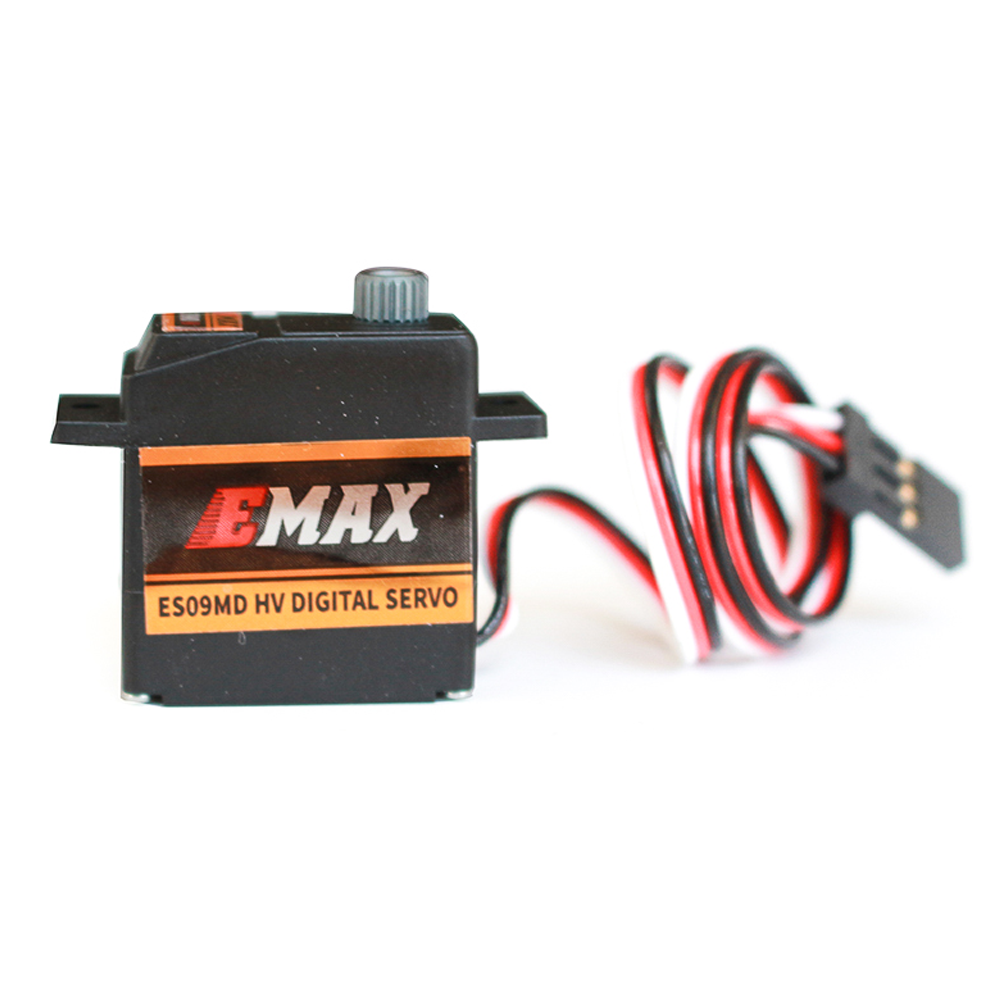

ES09MD HV High Voltage Servo - Black

Specifications:

Storage Temperature Range:-20℃~60℃

Operating Temperature Range:-10℃~50C

Electrical Specification (Function of the Performance)

Operating Speed (at no load): 6.0V:0.17 sec/60°/ 8.4V:0.12 sec/60°

Running Current (at no load): 6.0V:2000mA Max/ 8.4V:280mA Max

Stall Torque: 6.0V:2.3kg.cm Max/ 8.4V:3.1kg.cm Max

Maximum Current: 6.0V:0.65A Max/ 8.4V:0.9A Max

Idle Current:6.0V: 9.5mA/ 8.4V:9.5mA

Overall Dimensions:See Drawing Below

Weight:13.5±1g

Connector Wire Gauge:JR

Connector Wire Length:250±8mm(W/O Connector)

Output Gear Spline:21T

Bearing:2BB

Gear Type:Metal

Extreme Angle:360°

Control System:PWM

Operating Travel：90° ±8°( when 1000-2000μ sec )

Neutral Position：1500 μ sec

Rotating Direction:Counter Clockwise / Pulse Traveling 1500 to 1900μ sec

Pulse Width Range:500-2500μ sec

Maximum Travel:175°±10°(500-2500μ sec )

Package included:

1X EMAX ES09MD HV High Voltage Servo
