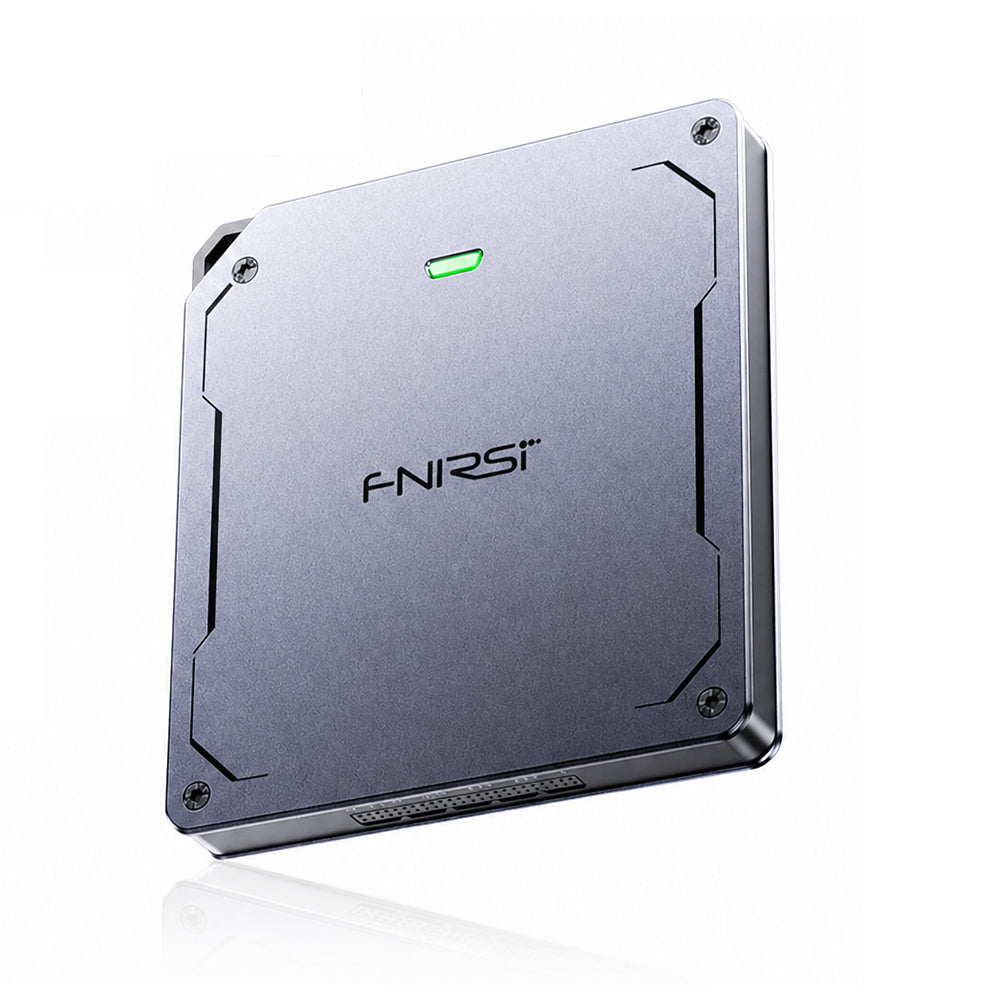

DLA-16 Plus DLA-32 Plus USB 3.0 High-Speed Analyzer 1GHz Sampling Rate 4Gbit Memory 16CH 32CH 170+ Protocol Decoders
Description
Specification
Product Model |
DLA-16 Plus |
DLA-32 Plus |
Number of Channels |
16ch |
32ch |
Max Sampling Rate - Buffer |
1CH/1G; |
1CH/1G; |
Max Sampling Rate - Stream |
1CH/1G; |
1CH/1G; |
Min Collectable Pulse Width |
2ns |
|
Max Collectable Frequency |
200MHz |
|
Hardware Storage Depth |
4Gb |
|
Max Sampling Rate Buffer Stream |
4Gbit At low sampling rates, depends on the computer's memory size |
|
Data Cache Mode |
Buffer / Stream / Roll |
|
Acquisition Accuracy |
±1 sampling cycle |
|
Trigger Type |
Rising Edge / High Level / Falling Edge / Low Level / Any Edge |
|
Protocol Support |
170+ (open protocol decoding library, customizable for any protocol) |
|
Input Withstand Voltage |
-40V~+40V |
|
Input Impedance |
250K/15pF |
|
Threshold Range |
-5V ~ +5V (0.1V step) |
|
Waveform Output |
3.3V, 1Hz~20MHz, 4-channel PWM |
|
Channel Interface |
1.27mm shielded cable interface |
|
Power Supply Voltage |
5V±0.2V |
|
Power Supply Current |
460mA (@5V max) |
|
Dimensions |
≈90*81*11.5mm |
|
Operating Temperature |
0~70°C |
|
Features
1) USB 3.0 high-speed transfer for faster debugging and smarter signal analysis.
2) Up to 1GHz real-time sampling rate with 2ns minimum collectable pulse width.
3) 4Gbit deep memory supports long-time signal recording without loss.
4) Supports 170+ protocols with open protocol decoding library and customizable protocol capability.
5) Adjustable logicthreshold and built-in 3.3V, 1Hz~20MHz, 4-channel PWM output.
Package Included
1 x Analyzer
4 Set x 5 Shielded Cables
1 x Storage Bag
1 x Packaging Box
1 x User Manual
18 x Mini IC Test Hooks (High Configuration Version)
1 x USB 3.0 Data Cable
10 x IC Test Hooks
1 x Transparent Storage Case for Test Hooks
