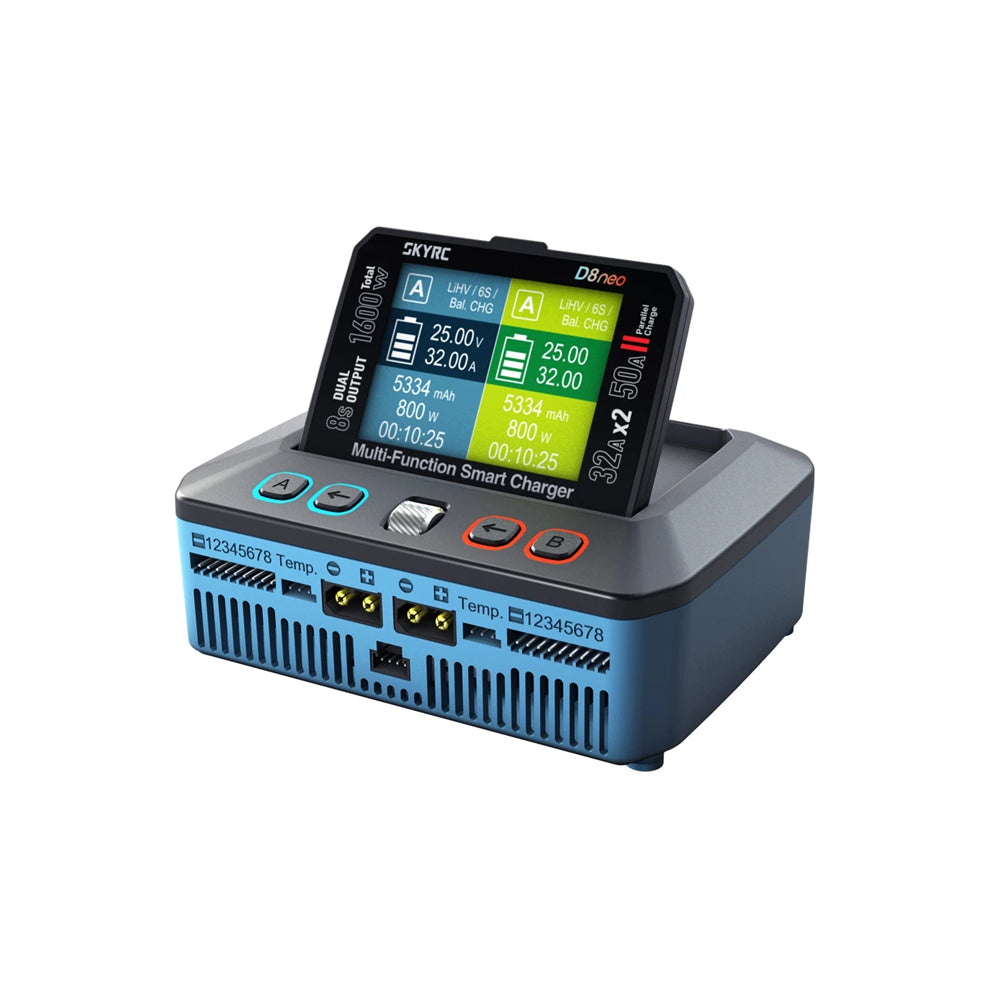

D8neo 1600W Dual Output Support 8S Multi-Function Smart Charger - Black

Specification:
Model: D8neo

Size and Weight
Case Size: 131 × 98 × 46.5mm
Weight: 530g

Display
Display Type: TN
Size: 2.8 inch
Panel Active Area: 43.20 × 57.60mm
Resolution: 240 × 320 Pixel
Number of Colors: 262K

Power
Input: 9-49V
Charge Power
Single Channel: 1100W
Multi-channels: 1600W in total (A+B+DC Power+Type-C)
Discharge Power
Main Port: 45W
Balance Port: 20W Max (LiPo/8s)
Reverse Discharge Power: 1100W

Battery Types/Cells
LiPo/LiFe/Li-ion/LiHV: 1-8S
NiMH/NiCd: 1-20S
Pb: 3S/6S/12S

Charge and Discharge
Charge Current
LiPo/LiFe/Li-ion/LiHV (2~8S): 0.1A ~ 32.0A
LiPo/LiFe/Li-ion/LiHV (1S) / NiMH/NiCd: 0.1A ~ 10.0A
Pb: 0.1 ~ 15.0A
Parallel charge
LiPo/LiFe/Li-ion/LiHV (2~8S): 33.0A ~ 50.0A
Discharge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb: 0.1A ~ 4.0A
External discharge current
LiPo/LiFe/LiIon/LiHV/NiMH/NiCd/Pb: 0.5A~40A
Balance current
LiPo/LiFe/Li-ion/LiHV: Max. 1.9A

Working and Storage
Operating temperature: 0℃-40℃
Working humidity: 5% ~ 75% RH (Non-condensing)
Storage temperature: -10℃ ~ 70℃
Storage humidity: 5% ~ 75% RH (Non-condensing)

Feature:
-1600W dual‑output power with up to 32A per port and 8S support, giving RC cars, drones and boats fast turnaround between runs.

-Multi‑chemistry smart charging for LiPo, LiHV, LiFe, Li‑ion, NiMH, NiCd and Pb packs, ideal for mixed RC garages and hobby workshops.

-ColorX adjustable flip display with aluminum scroll wheel and Bluetooth app control, making every setting clear, precise and easy to tune.

-Built‑in digital DC power supply and PD 3.0 100W USB‑C output, so you can power RC accessories or charge phones, tablets and game consoles.

-ARM Cortex‑M3 core, HyperBoost algorithm, dual intelligent fans and multi‑safety circuit deliver accurate charging, cool operation and reliable battery protection.

Note to Buyers:
- Arm and Cortex are trademarks and/or registered trademarks of Arm Limited (or its affiliates).
- 40 A discharge requires the BD380+ Discharger (sold separately).
- Battery Analysis Software is free to download!
- The cable is made from high-temperature silicone wire rated up to 200°C and supports up to 60A of current—safe, stable, and performance-ready.
- Two versions of parallel charging cables are available:
• XT60 on both input ends, XT90 on the output end
• XT60 on both input ends, 4mm to 5mm bullet reducer on the output end
- BD380+ Discharger sold separately
- Only Channel A supports BD380+ connection

Package Included
1 x SkyRC D8neo Multi-Function Smart Charger
1 x User Manual
