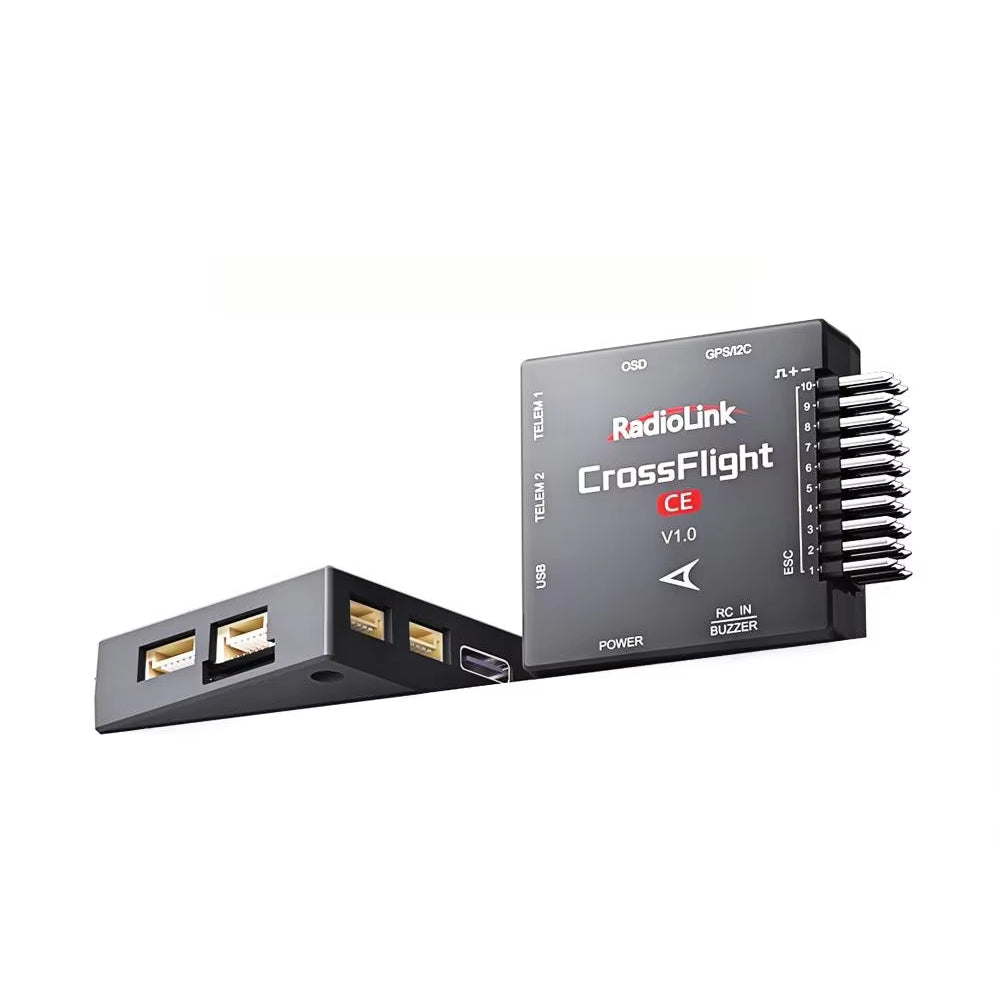

CrossFlight-CE 2-12S Flight Controller 5.3V BEC Output Support 10-channel PWM Output Build-in OSD for RC FPV Racing Drones
Description
Specification:
Model:
Weight & Dimension |
Dimension |
39.7*39.7*12.1mm (1.56"*1.56"*0.48") |
Weight |
16.5g(0.58oz) 54g(1.9oz when all the connect wires included) |
|
Hardware |
Processor |
HC32F4A0PITB |
Sensor |
Gyro & Accelerometer |
QMI8658A |
Compass |
VCM5883L |
|
Barometer |
SPA06-003 |
|
OSD Module |
OSD Module AT7456E Integrated |
|
FRAM |
Without FRAM, use the internal flash to store parameters, 2617 waypoints for multi-copters, and 2623 waypoints for airplanes, cars, and boats. |
|
Buzzer |
1 |
|
Switch |
None |
|
Connector |
Type |
JST GH1.25 Connector |
PWM Output |
10-channel PWM output |
|
Mavlink UART |
2(without CTSRTS) |
|
USB Port |
1(Type-C) |
|
GPS UART/I2C Port |
1 |
|
Signal Input |
PPM/SBUS/CRSF |
|
RSSI Output |
Support |
|
ESC Protocol |
PWM, DShot, and OneShot Protocol |
|
RTK |
Support |
|
Power Module Specifications |
Weight |
16.5g(0.58oz) without wire |
Input Voltage |
2-12S |
|
Maximum Detection Current |
90A |
|
Output Voltage(BEC) |
5.3V±0.2V |
|
Output Current(BEC) |
2A |
|
Single ESC Maximum Detection Current |
22.5A |
|
Adaptable Models |
Airplane, 2-8 Copters, Helicopter, Car, Boat, Submarine, Radartracker |
|
Operating Paramteters |
USB Voltage |
5V±0.3V |
Servo Voltage |
Not applicable |
|
Operating Temperature |
-30~85℃ |
|
Package included:
1 x Flight Control(CrossFlight-CE)
1 x Power Module(Support 2-12S)
1 x Buzzer
1 x I2C Transfer Board
1 x FC Status Indicate LED
1 x 4G TF (MicroSD) Card
1 x Buzzer&Receiver Connect Cable
1 x Power Module Connect Cable
1 x I2C Transfer Board Connect Cable
1 x OSD Port Connect Cable
2 x TELEM1&2 Ports Connect Cable
1 x FC Status Indicate LED Cable
1 x Double-sided Adhesive Tape
1 x Type-C Cable
1 x User Manual
1 x Packing Box
