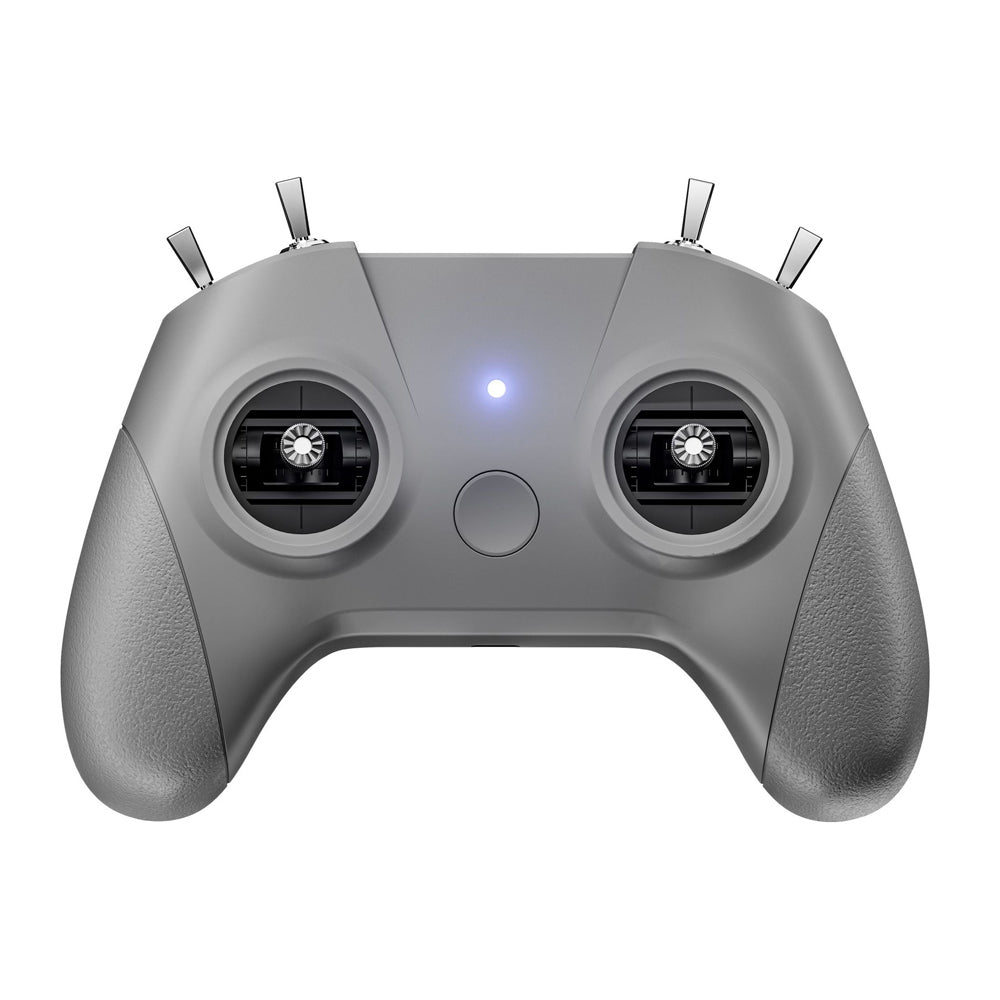

C8 2.4GHz 8CH 100mW ELRS Radio Controller for DJl/Velocidrone/Liftoff/Tryp/DRL/DCL Simulator FPV Racer Drone RC Car Boat Helicopter
Description
STARTRC C8 2.4GHz 8CH 100mW ELRS Radio Controller for DJl/Velocidrone/Liftoff/Tryp/DRL/DCL Simulator FPV Racer Drone RC Car Boat Helicopter
Specification:
| Model | Parameter |
| C8 Controller | Channels: 8 channels
Power Output: 100mW
Control Distance: 1000 meters
Operating Frequency: 2400-2500MHz
Battery: 650mAh 1S battery
Charging Port: Type-C
Product Weight: 155g
Product Dimensions: 162 * 120 * 66mm
Charging Cut-off Voltage: 4.2V ± 0.02V
Low Voltage Warning: 3.4V
Flight Time: ≤2.5 hours
Charging Time: 2 hours
Input Voltage: 5V
Input Current: 1A
Simulator Functionality: Supported
Compatible Aircraft Models: Fixed-wing aircraft, multi-rotor drones, gliders, applicable to global drones, cars, boats, etc., equipped with the ELRS protocol.
Compatible Simulator Software: Liftoff, DRL, DCL, AI Drone Simulator, TRY P FPV, Uncrashed, Freerider (Velocidrone), FPVLogic, SkyDive, FPV Worldwide, FPV Battleground, Black Sheep. |
| CR8 Nano ELRS Receiver | Chip: ESP8285 + SX1281
Crystal Oscillator: Epson Crystal Oscillator
Frequency Band: 2.4GHz
Antenna: T-Type Antenna
Antenna Connector: IPEX-MHF
Transmission Power: 100mW
Refresh Rate: 50Hz - 1000Hz
Input Voltage: DC 5V
PCBA Weight: 0.8g
Dimensions: 18.9mm x 11.2mm x 1mm
Firmware Version: ExpressLRS V3.3
Firmware Upgrade: Supports WiFi Upgrade |
Features:
- Wide Compatibility: Suitable for drones, RC cars, boats, and helicopters equipped with ELRS protocol with seamless performance across multiple models.
- Precision-Control Joysticks: High-accuracy customizable analog sticks for stable flight operation and enhanced gaming experience.
- Multi-Platform Integration: Direct plug-and-play compatibility with FPV simulators like Liftoff, DRL, DCL, and TRY P FPV without additional drivers.
- Long-Lasting Battery: Built-in 650mAh 1S battery supports up to 2.5 hours of usage; recharges fully in only 2 hours via Type-C.
- Optimized Control Distance: 1,000-meter signal range ensures stable operation even in interference-prone environments.
STARTRC C8 Controller Manual, click here
Package Included:
1 x STARTRC C8 Controller
1 x Type-C Cable
1 x User Manual
1 x STARTRC CR8 Receiver(Optional)
