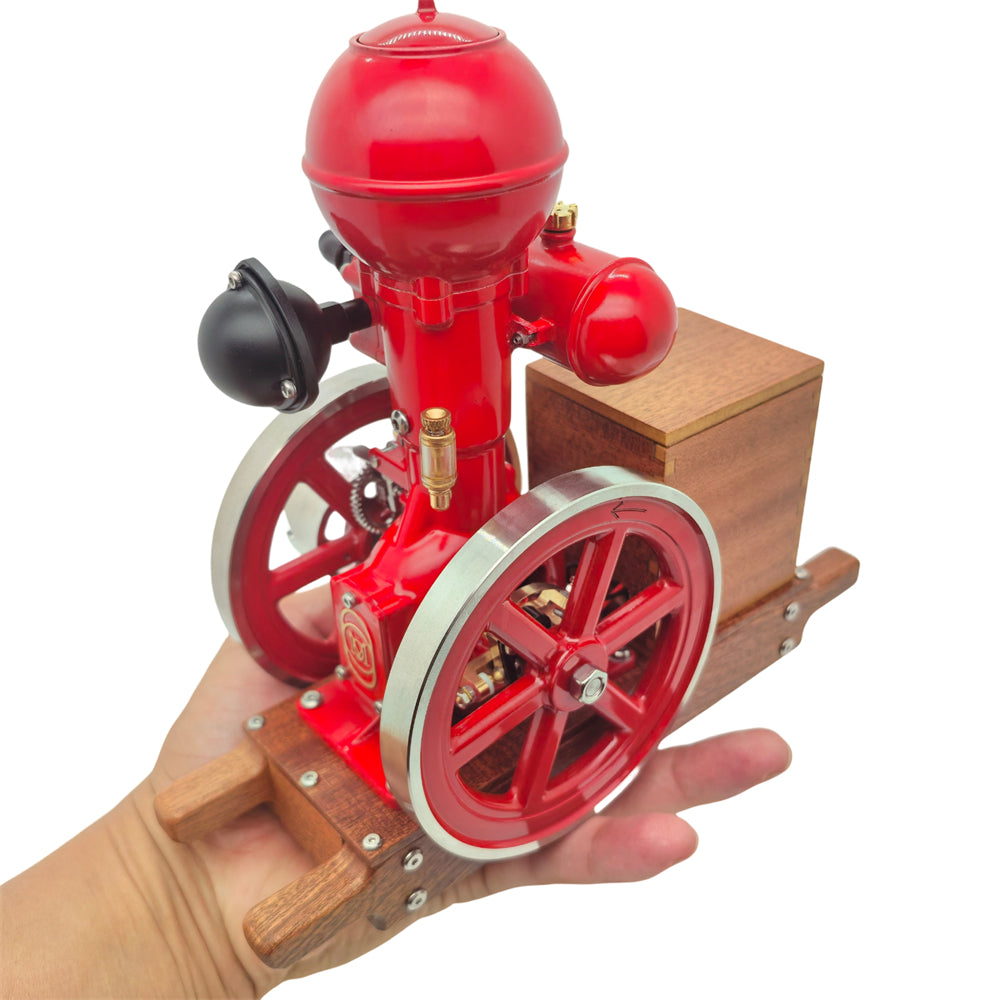

B01 3.6CC Ball Top Monitor Hit and Miss Vertical Water-cooled Single Cylinder 4-Stroke Engine Science Discovery Education Toys - Red

Key Advantage:

The Revolutionary Mechanical Ignition System

 At the heart of the B01 engine lies its advanced mechanical ignition system—a game-changer that eliminates reliance on electricity or gas, setting a new benchmark in the industry. Powered by a single energy source, it delivers exceptional endurance, with test runs clocking nearly 24 hours of continuous operation. ✔ Low operating temperature ✔ Consistent, reliable ignition ✔ No frequent power swaps needed ✔ Pure mechanical control at your fingertips

Performance Specs: Engineered to Stand Out B01 Engine doesn’t just look the part—it performs. With a 13mm bore and 19mm stroke, it establishes a unique differentiation in its class. The optimized startup ensures smooth piston movement after fueling, and future upgrades will push its capabilities even further.

Specification:
Model: B01
Material: Brass + Aluminum Alloy + Wood
Displacement: 3.6cc
Bore Diameter: 16 mm
Stroke: 19mm
Speed: 300-3000 rpm
Cooling Method: Water Cooling
Lubrication Method: Channel Lubrication
Starting Method: Hand Start / Drill Start
Ignition Method: mechanical ignition
Spark Plug Type: 3/16-40 British Standard Thread Spark Plug
Fuel Type: 95# and above gasoline
Oil Type: 2T/4T Mixed Oil
Starting Power: 1.5V AA Battery *1 (Not Included)
Product Weight: 1600g
Product Dimensions: 20.4 x 10 x 18.4cm



Package included:
1 x Engine Model
