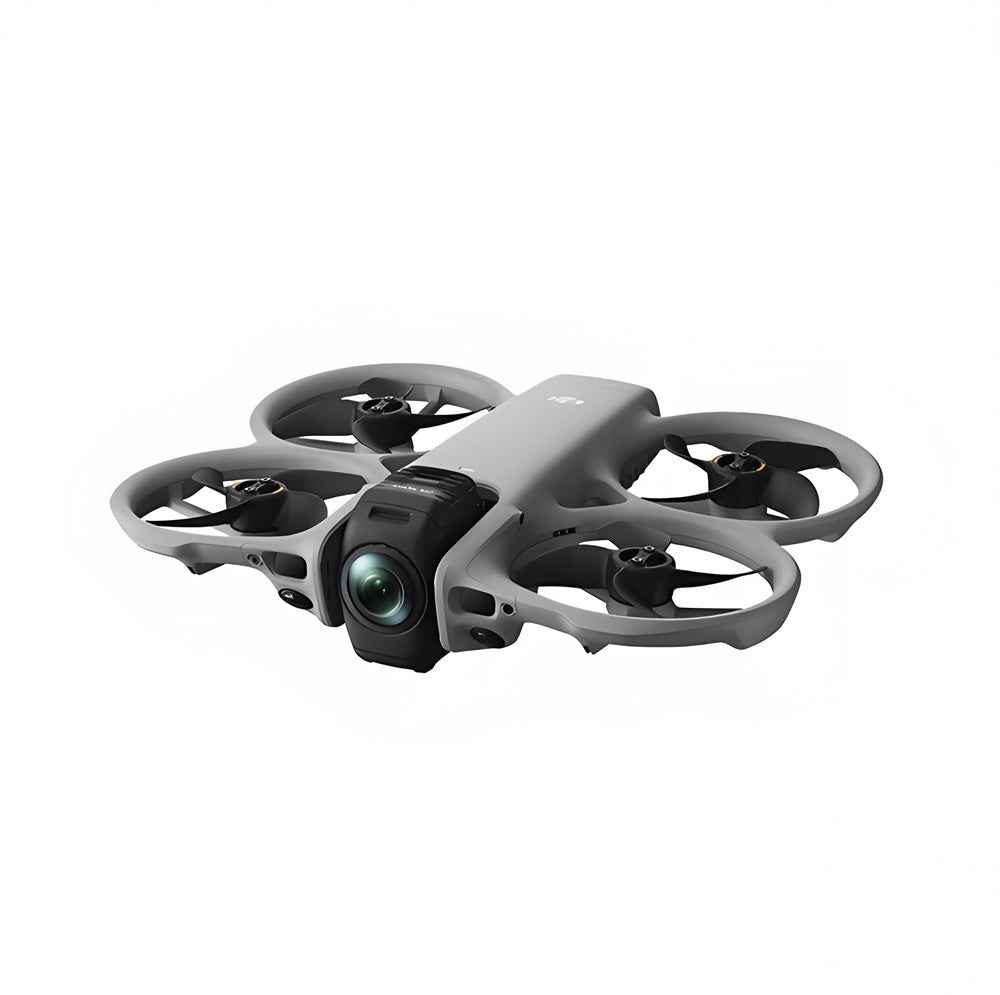

AVATA 360 8K 60fps HDR Panoramic RC FPV Racing Drone BNF RTF with HD O4+ Video Transmission 360° Virtual Gimbal

Drone

Takeoff Weight

Approx. 455 g

Dimensions

246×199×55.5 mm (L×W×H)

Maximum Asccent Speed

2 m/s (Cine mode)

6 m/s (Normal mode)

10 m/s (Sport mode)

Maximum Descent Speed

1.5 m/s (Cine mode)

6 m/s (Normal mode)

10 m/s (Sport mode)

Maximum Horizontal Speed

6 m/s (Cine mode)

16 m/s* (Normal mode)

18 m/s (Sport mode)

Maximum Takeoff Altitude

4500 m

Maximum Flight Time

Approx. 23mins

Maximum Hovering Time

Approx. 22 mins

Maximum Flight Distance

13.5 km

Maximum Wind Speed Resistance

10.7 m/s (Level 5)

Maximum Pitch Angle

48°

Operating Temperature

-10° to 40° C (14° to 104° F)

Global Navigation Satelite System

GPS + Galileo + BeiDou

Hovering Accuracy Range

Vertical:

±0.1 m (with vision positioning)

±0.5 m (with satelite positioning)

±0.3 m/3 mins (with ETK positioning)

Horizontal:

±0.3 m (with vision positioning)

±1.5 m (with satelite positioning)

±0.3 m/3 mins (with ETK positioning)

Internal Storage

42 GB

Class

C1 (EU)

Camera

Image Sensor

Two 1/1.1-Inch Square CMOS Sensors

Effective Pixels per Sensor: 64MP

Lens

FOV: 200°

Format Equivalent: 7.8 mm

Focal Length: 2.5 mm

Aperture: f/1.9

Focus mode: FF

Focus: 1.5 m to ∞

ISO Range

360° Video:

8K@60/50/48fps: 100-12800 (Normal/D-Log M)

8K@30/25/24fps: 100-25600 (Normal), 100-12800 (D-Log M)

6K@60/50/48/30/25/24fps: 100-25600 (Normal), 100-12800 (D-Log M)

360° Photo: 100-6400

Single-Lens Video: 100-12800

Shutter Speed

Video: 1/8000-1/25 s

Photo: 1/8000-1/30 s

Still Photography Mode

Single Shot:

In 360° mode, the resolution is 30 MP* or 120 MP**.

* For 30MP/8K 360° photos, the resolution is 7776×3888 (30 MP) in JPEG and 7680×3840 (29.49 MP) in DNG.

** For 120MP/16K 360° photos, the resolution is 15520×7760 (120 MP) in JPEG and 15360×7680 (118 MP) in DNG.

Maximum Image Size

360° Photo: 15520×7760

Photo Format

JPEG/DNG (RAW)

Video Resolution

360° Mode:

8K (2:1): 7680×3840@60/50/48/30/25/24fps

6K (2:1): 6000×3000@60/50/48/30/25/24fps

Single Lens Mode:

4K (4:3)*: 3840×2880@60/50/48/30/25/24fps

4K (16:9): 3840×2160@60/50/48/30/25/24fps

2.7K (4:3)*: 2688×2016@120/100/60/50/48/30/25/24fps

2.7K (16:9): 2688×1512@120/100/60/50/48/30/25/24fps

* Only supported when using DJI Goggles 3/N3 paired with DJI RC Motion 3 or DJI FPV Remote Controller 3.

Video Format

OSV/MP4 (H.265)

Maximum Video Bitrate

180 Mbps

Color Mode

Normal

D-Log M

EIS

Single Lens Mode:

With RC 2/RC-N2/RC-N3: Supports only RockSteady 3.0

With Goggles 3/N3 paired with RC Motion 3 or FPV Remote Controller 3: Supports a switch between RockSteady 3.0 and HorizonBalancing

Camera FOV

Single Lens Mode:

With RC 2/RC-N2/RC-N3: Natural Wide

With Goggles 3/N3 paired with RC Motion 3 or FPV Remote Controller 3: Standard (Dewarp)/Wide/Natural Wide

Supported File System

exFAT

Gimbal

Stabilization

Single-Axis Mechanical Gimbal (tilt)

360° Virtual Gimbal

Mechanical Range

Tilt: -95° to 173°

Controllable Range

Single-Axis Mechanical Gimbal:

Tilt (With RC 2/RC-N2/RC-N3): -30° to 60°

Tilt (With Goggles 3/N3 paired with RC Motion 3 or FPV Remote Controller 3): -60° to 60°

360° Virtual Gimbal:

Tilt: -180° to 180°

Roll: -180° to 180°

Maximum Control Speed

Single-Axis Mechanical Gimbal:

Tilt: 100°/s

360° Virtual Gimbal:

Tilt: 100°/s

Roll: 100°/s

Angular Vibration Range

Single-Axis Mechanical Gimbal:

±0.01°

Sensing

Sensing Type

Omnidirectional vision system, supplemented with forward-facing LiDAR and an infrared sensor at the bottom of the aircraft

Forward

Measurement Range: 0.5-20 m

FOV: Horizontal 90°, Vertical 90°

Backward

Measurement Range: 0.5-18 m

Lateral

Measurement Range: 0.5-18 m

Upward

Measurement Range: 0.5-18 m

Downward

3D ToF Effective Measurement Height: 10 m

Precise Hovering Range: 0.3-10 m

3D ToF FOV: Horizontal 60°, Vertical 60°

Measurement Range: 0.5-20 m

FOV: Horizontal 90°, Vertical 90°

Operating Environment

Diffuse reflective surfaces with discernible patterns, diffuse reflectivity > 20%

(such as concrete pavement)

Adequate lighting (lux > 1, normal indoor lighting conditions)

Video Transmission

Video Transmission System

O4+

Live View Quality

Single Lens Mode:

1080p@100*/60/50/48/30/25/24fps

360° Mode:

1080p@60/50/48/30/25/24fps

* In Single Lens Mode, 1080p/100fps is supported only when the aircraft is used with Goggles 3/N3 and RC Motion 3.

Operating Frequency

2.400-2.4835 GHz

5.170-5.250 GHz*

5.725-5.850 GHz

* 5.170-5.250 GHz can be used only in countries and regions where permitted by local laws and regulations.

Transmitter Power (EIRP)

2.400-2.4835 GHz:

< 33 dBm (FCC)

< 20 dBm (CE/SRRC/MIC)

5.170-5.250 GHz:

< 23 dBm (CE)

5.725-5.850 GHz:

< 33 dBm (FCC)

< 30 dBm (SRRC)

< 14 dBm (CE)

Communication Bandwidth

Max 40 MHz
