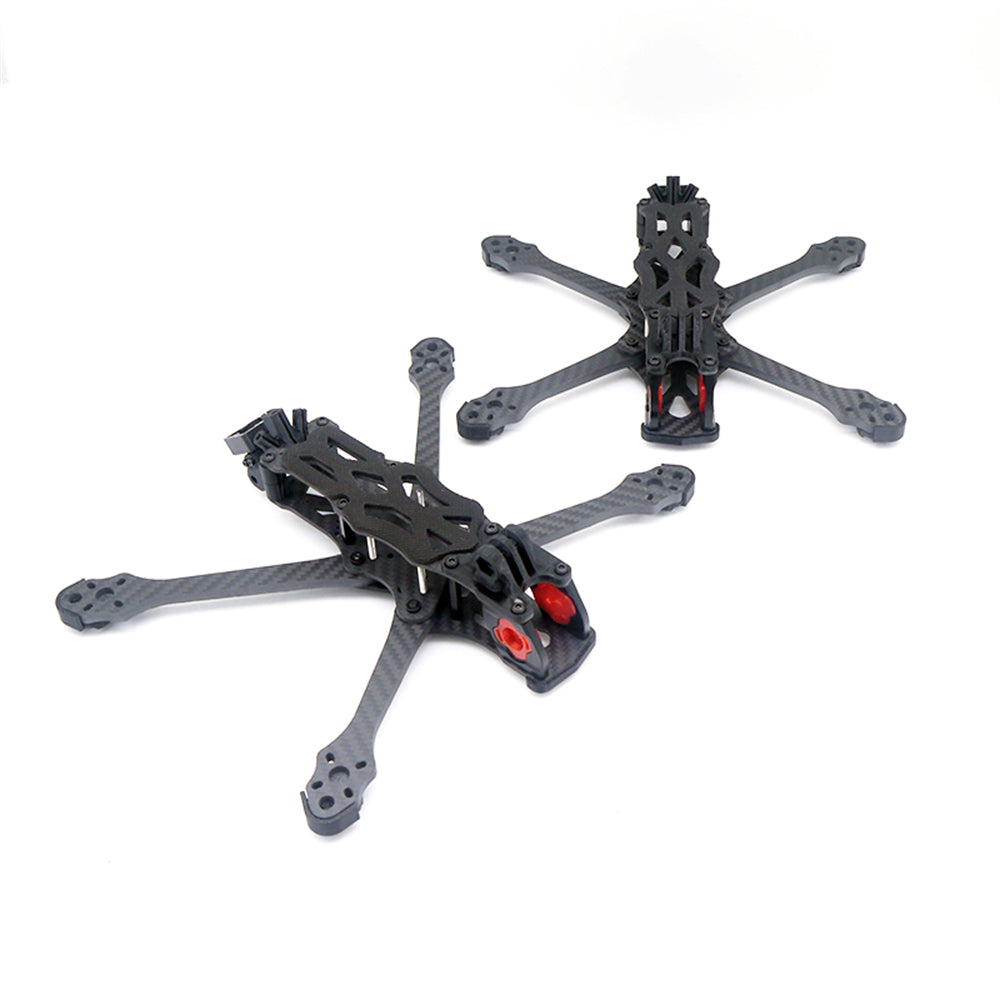

APEX EVO X5/ X5 MAX 5 Inch / X6 /X6 MAX 6 Inch / X7/ X7 MAX 7 Inch X Frame Kit Compatible with DJI O4 Pro FPV Racing Drones

Model

APEX X5

(Support O4 Pro）

APEX X5 MAX

(Support O4 Pro）

APEX X6

(Support O4 Pro）

APEX X6 MAX

(Support O4 Pro）

APEX X7

(Support O4 Pro）

APEX X7 MAX

(Support O4 Pro）

Wheelbase:

225mm

275mm

315mm

Dimensions:

Approx. 165mm(L)x 213mm(W)x 35mm(H)(without printout)

Approx. 189mm(L) x 253mm(W)x 35mm(H)(without printout)

Approx. 212mm(L)x 286mm(W)x 35mm(H)(without printout)

Weight:

Approx.152g

Approx.175g

Approx.159g

Approx.182g

Approx.166g

Approx.189g

Structure:

X-type Split

Thickness:

Arm 5.5mm, upper plate 2.0mm, bottom plate 2.5mm, splint 2.5mm

Material of the Nose:

7075 Magnsium Aluminum Alloy CNC

Camera Side Panel:

3D Printed Parts TPU

Material of Aluminum Column:

7075 Hexagonal Aluminum Column

Applicable Propeller Size:

5-5.1 inch

6 inch

7 inch

Flight Control Hole Spacing:

20*20mm (M3), 30.5*30.5mm (M3)

Tail Image Transmission Installation Hole Spacing:

20*20mm (M2), 25.5*25.5mm (M2) 30.5*30.5mm (M3)

Camera Installation Width:

20mm/19mm (compatible with DJI O4 PRO/DJI O3 Air Unit/Analog, etc.)

Internal Height:

Approx. 20-28mm

Motor Installation Hole Spacing:

16*16mm (M3), 19mm*19mm (M3)

Applicable Image Transmission:

DJI O4 PRO/DJI O3 Air Unit/VISTA SKY Unit/Analog, etc.

Plate Material:

3K (T700 level)

Applicable GPS:

-

BZ181

-

BZ181

-

BZ181

3D Printed Material and Color:

-

3D Printed TPU Material, Black

-

3D Printed TPU Material, Black

-

3D Printed TPU Material, Black

3D Printed List:

-

1 Universal Base for Sports Cameras (such as Gpro),

4 Arm Protection Bases,

1 Front Lip Protection Base,

1 Universal Antenna Base (compatible with dual antennas, single antennas, BZ181 GPS, ELRS915/2.4g, antennas, etc.)

-

1 Universal Base for Sports Cameras (such as Gpro),

4 Arm Protection Bases,

1 Front Lip Protection Base,

1 Universal Antenna Base (compatible with dual antennas, single antennas, BZ181 GPS, ELRS915/2.4g, antennas, etc.)

-

1 Universal Base for Sports Cameras (such as Gpro),

4 Arm Protection Bases,

1 Front Lip Protection Base,

1 Universal Antenna Base (compatible with dual antennas, single antennas, BZ181 GPS, ELRS915/2.4g, antennas, etc.)

Note:

1.APEXEV0X series (5-inch/6-inch/7-inch), only the length of the arm is different, the body size is the same

2.MAX version refers to the one with a full set of printed parts.
