AL01 Portable Digital Multimeter High Precision Voltage Current Resistance Capacitance Frequency Temperature Tester Inductance NCV Detection True RMS Backlight Display Auto-Off - Black / Standard
Description
Features:
1. [Multifunctional Use]: The ANENG AL01 is a portable digital multimeter designed per international electrical safety standards. It's capable of measuring AC/DC voltage, AC/DC current, resistance, capacitance, diode, inductance, NCV, and includes a buzzer function.
2. [Meticulous Measurement and High Precision]: The device can accomplish detailed resolution and has high precision, featuring AC voltage ranging from 0V-750V, DC voltage from 0V-1000V, AC current from 0A-10A, and DC current from 0A-10A.
3. [Temperature Measure]: The ANENG AL01 can accurately measure temperature from -20℃ to 1000℃ or -4℉ to 1832℉, making it a versatile tool for various electrical tasks.
4. [Convenient Design]: The device includes a clear backlit display for easy readings, supports data hold, and offers low power indication as well as auto power-off to conserve battery life.
5. [Durabl & Compact]: Weighing just 113g and housed in sturdy ABS material, this compact yet robust digital multimeter is easy to handle and ideal for professional electricians.
Specifications:
Function |
Range |
Resolution |
Accuracy |
AC voltage |
0V-750V |
0.001V-1V |
± (1.0%+3) |
mV AC voltage |
60mV-600mV |
0.01mV-0.1mV |
± (1.0%+3) |
DC voltage |
0V-1000V |
0.001V-1V |
±(0.5%+3) |
mV DC voltage |
60mV-600mV |
0.01mV-0.1mV |
±(0.5%+3) |
AC current |
0A-10A |
0.001A-0.01A |
±(1.5%+3) |
mA AC current |
60mA-600mA |
0.01mA-0.1mA |
±(1.5%+3) |
DC current |
0A-10A |
0.001A-0.01A |
±(1.2%+3) |
mA DC current |
60mA-600mA |
0.01mA-0.1mA |
±(1.2%+3) |
Resistance |
0 Ω -60M Ω |
0.1Ω-0.01MΩ |
±(1.5%+3) |
Capacitor |
0nF-60mF |
0.001nF-0.01mF |
±(5.0%+5) |
Hz frequency |
0Hz-9.999MHz |
0.001Hz-0.001MHz |
±(0.1%+2) |
% Duty cycle |
0%-99% |
0.1% |
±(0.1%+2) |
°C °F temperature |
(-20~1000)℃ |
1℃ |
±(2.5%+5) |
(-4~1832)°F |
1°F |
±(2.5%+5) |
|
L lnductance |
0mH-60H |
0.001mH-0.01H |
±(5%+50) |
NCV detection |
√ |
Relative value |
√ |
Diode |
√ |
Low power indication |
√ |
Buzzer |
√ |
Data retention |
√ |
Max Count |
6000 COUNTS |
Back support |
√ |
Weight |
113g |
Backlit screen |
√ |
Battery |
AAA battery *2(without shipment) |
Auto power off |
√ |
Material |
ABS |
True RMS |
√ |

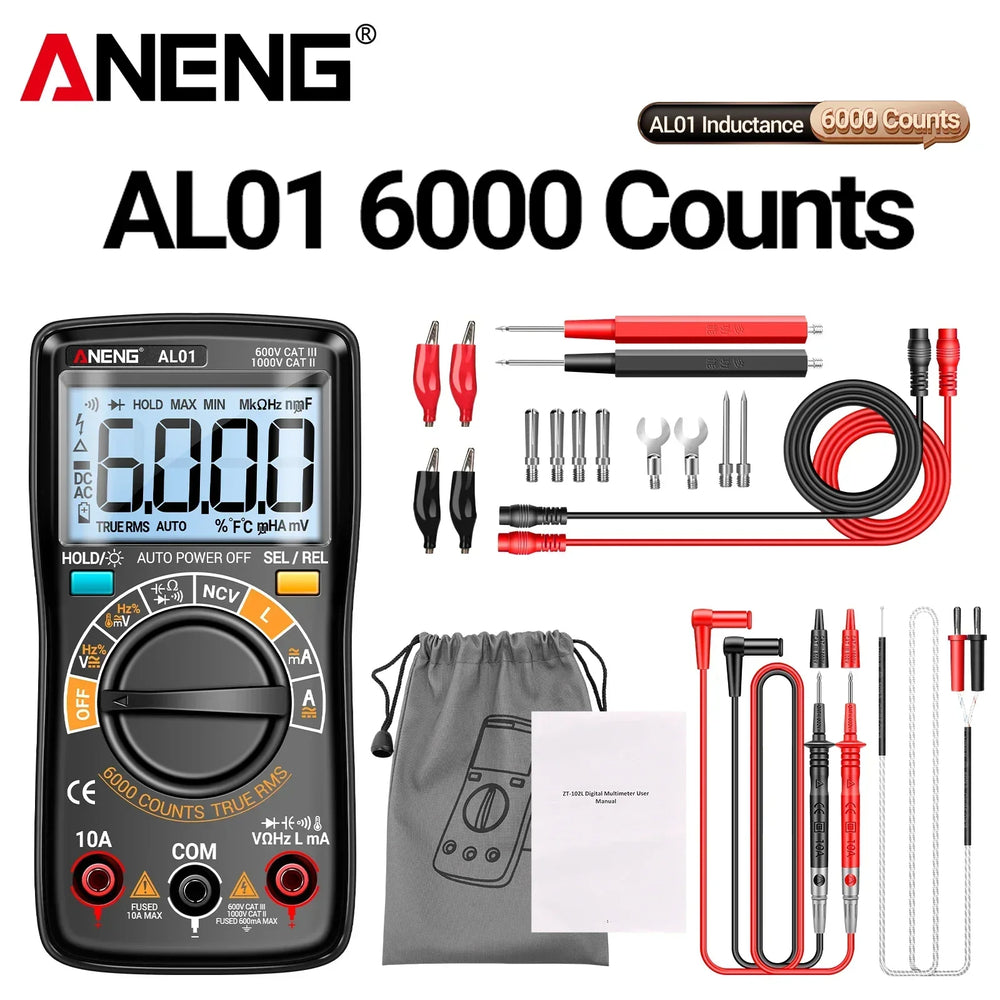

Package Included:
Type A:
1 x Standard Version AL01 (Red)
2 x Test Leads
1 x Probe
1 x Dustproof Bag
1 x Manual
Type B:
1 x Standard Version AL01 (Black)
2 x Test Leads
1 x Probe
1 x Dustproof Bag
1 x Manual
Type C:
1 x Upgraded Version AL01 (Red)
2 x Test Leads
1 x Probe
4 x Alligator Clips
1 x Pack of Accessories
1 x Dustproof Bag
1 x Manual
Type D:
1 x Upgraded Version AL01 (Black)
2 x Test Leads
1 x Probe
4 x Alligator Clips
1 x Pack of Accessories
1 x Dustproof Bag
1 x Manual
