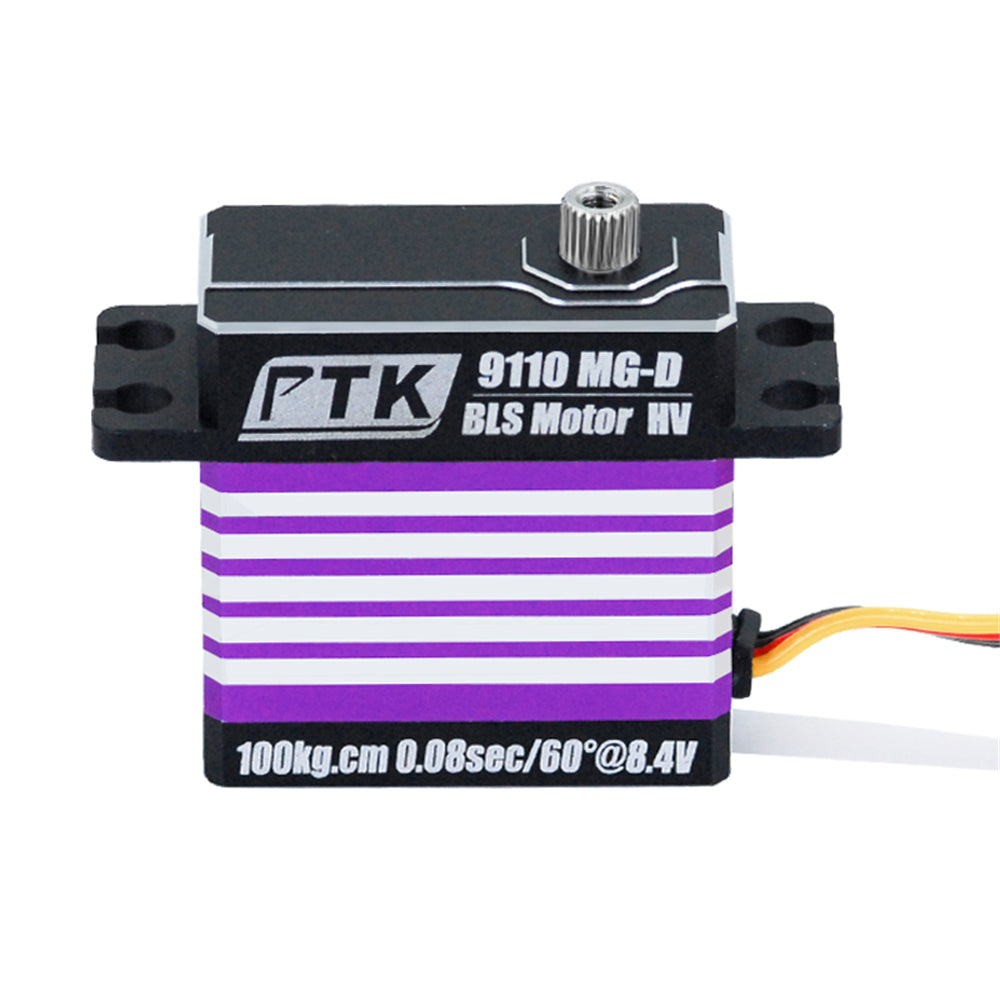

9110 MG-D 100KG 0.08/Sec High Torque Digital RC Servo for Turbojet Aircraft Models - Purple
$54.99
In Stock
Description
Specification:
Model: 9110 MG-D
Gear Material: Stainless Steel Gear
Case Material: CNC Al Alloy
Operating Temperature: -15°C~+70°C
Operating Travel: 180°±10°
Refresh Rate: 333Hz
Net Weight: 88g
Pulse Width: 500 To 2500 μSec
Motor Type: Brushless Motor
Dead Band: 2 μs
Neutral Position: 1520 μs
Size: 40x20x40.4mm
Bearing: Double Ball Bearing
Operating Voltage: 8.4V~16.8V
Wire: JR 300mm
Mechanical Limit Angle: No Limit
Programmable: Yes
Operating Speed:
0.16 Sec/60° @ 8.4V
0.105 Sec/60° @ 12.8V
0.09 Sec/60° @ 15V
0.08 Sec/60° @ 16.8V
Stall Torque:
62 Kg-Cm @ 8.4V
90 Kg-Cm @ 12.8V
96 Kg-Cm @ 15V
100 Kg-Cm @ 16.8V
Package included:
1 x RC Servo
