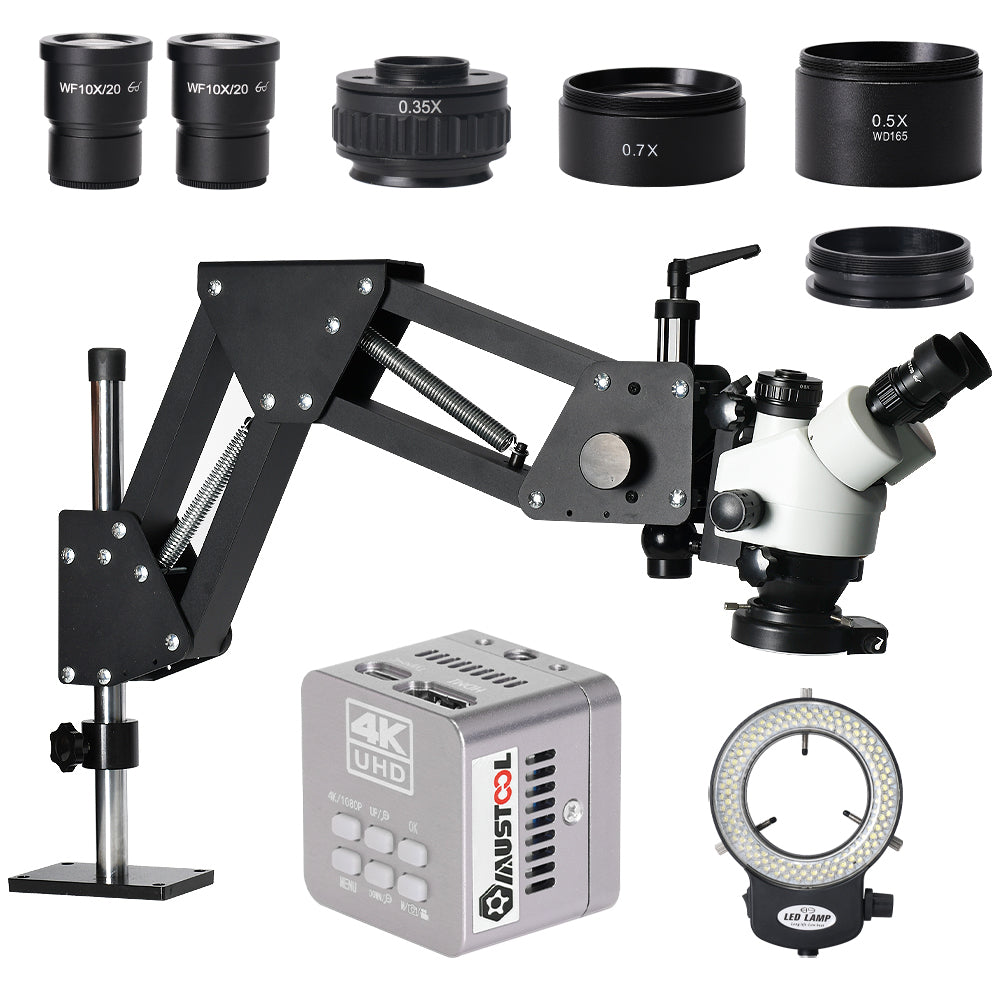

7X-45X 4K Binocular Stereo Microscope Magnifier Stand Diamond Setting Microscope Camera EU Plug For Jewelry Optical Tools

Specification

Trinocular Stereo:

Head: 45-degree inclined 360-degree swiveling trinocular simul-focal

Eyepiece:  super widefield high-eyepoint WF10X/20

Objective: 0.7-4.5X

Zoom Range: 6.5:1

Trinocular Port: 25mm photo port

Interpupillary Distance: 2-1/8" to 3"(54-76mm)

Field of View: 1-1/4" (33mm)

Working Distance: 7X-45X (100mm)    Use 0.5x objective lens 3.5X-22.5X(165mm)

Use0.7x objective lens 9.8X-31.5X (120mm)

Head Mounting Size: 3" (76mm) diameter

Accessory Mounting Size: 1-7/8" (48mm female thread) diameter

 7X to 45X Continuous Zoom Magnification Power

45-degree Inclined Trinocular Simul-focal Head with SUPER WIDEFIELD High-Eyepoint Eyepieces

Trinocular port for adding photo or video capability

30mm Super Widefield WF10X Eyepieces with 20mm Field of View

High Resolution with Great Flatness and Contrast

Sharp Stereo Erect Images over a Wide Field View

Crystal Clear Original True Color Images

Large Working Distance

Accurate Alignment Ensuring a Fatigue-Free Viewing

Full Optical Glass Elements

Precise Ground Glass Lens

All Metal Mechanical Components

Adjustable Interpupillary Distance

Manufactured under ISO 9001 Quality Control Standard

Bracket Hole: 76mm
Control High Rang:50mm
Spin Angle:Horizontal±15°
Straight: ±15°
Main Staight:270°
Materiel:Hard Aluminum Alloy
Total Height:500mm
Expansion Amount:200-500

Package Size :50*50*24cm

Package Weight:9.7Kg

4K Camera:

This is UltraHD 4K industrial camera,The resolution is 3840 x 2160 pixels,Adopt standard HDMI interface,It can be used as education, scientific research, laboratory, demonstration, maintenance and inspection,Use HDMI splitter to project to a large FHD TV for the best display.
Module: HY-6120S
Sensor: For Sony CMOS IMX334 Sensor
Optical Format: 1/1.8inch
Pixel Size: 2.0μmx2.0μm
Interface: HDMI (Type A). USB (Type B). Small memory card
HDMI Image Resolution: 8MP
HDMI Video Resolution: 4K:3840x2160P 2K:1920x1080

HDMI Scale: Support 4: 3,16: 9 screen
USB2.0 (Drive Free): 1920 x 1080 at 60FPS 1280 x 720 at 60FPS
Small Memory Card: Up to 512GB (not included)
AWB:AWB color correction/automatic/manual
R.G.B value setting independent
Exposure: Automatic/manual. AE value can be set
Cross Line: 8 lines, color, width, position can be set
Scale Line: 2 lines.
Dotted Line: 2 lines, color, width, position can be set
Sharpness Contrast Color Gain: Support
Mono Negative Film: Support
Mirror: Horizontal and vertical mirror
Language: English/Simplified Chinese/French/Spanish/Japanese/German And other languages.
Digital Zoom: Support
Infrared Remote Control: Support
Voltage Input: DC 12V
Power Supply Voltage: Input: AC100-240V
Output: DC12V
Power Consumption: Maximum 0.15W 12V, 0.12A
Lens Interface: C/CS port
Remote Control Battery: 1 x 2302 button battery (delivered without battery)
Camera size:
