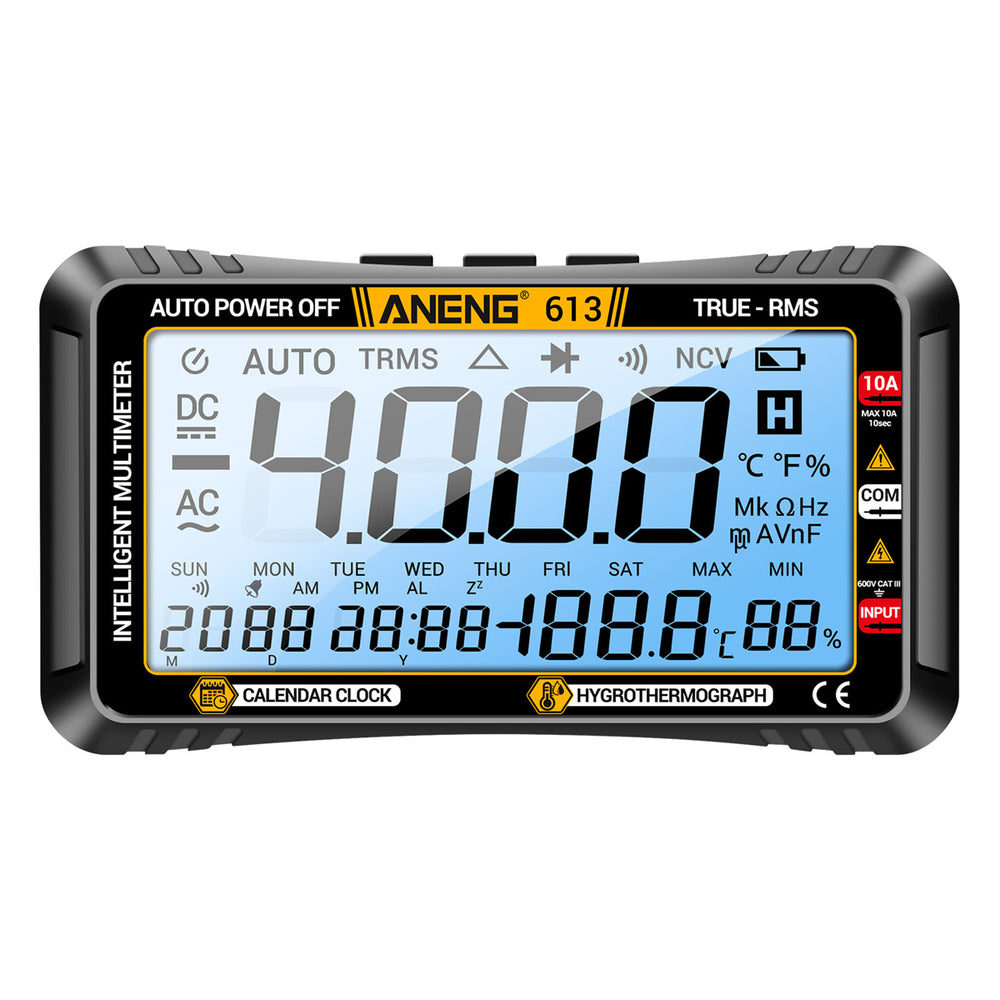

613Pro Smart Multimeters DC/AC Voltage Capacitor Tester 4000 Counts 10A Current 600V Voltmeter Test Alarm Clock Set Tools - Black / 613
Description
This multifunctional multimeter is designed and produced according to the safety requirements of the international electrical safety standard IEC-61010 for electronic measuring instruments and handheld digital multimeters.
Meets the requirements of 600V CAT IV, 600V CAT III, and Pollution Level 2 of IEC61010. Before using this instrument, please read the user manual carefully and pay attention to the relevant safety work guidelines.
Specification :
Function |
Range |
Resolution |
Precision |
AC current |
0mA-10A |
0.1mA-0.01A |
±(2.2% reading + 10) |
DC current |
0mA-10A |
0.1mA-0.01A |
±(1 .8% reading + 8) |
AC voltage |
0mV-600V |
1mV-1V |
± (1.5% reading + 8) |
DC voltage |
0V-600V |
1mV-1V |
±(1.2% reading + 5) |
Resistance |
0Ω-40MΩ |
0.1Ω-10kΩ |
±(1.5% reading + 10) |
Capacitor |
0nF-40mF |
10pF-1μF |
±(6% reading+ 20) |
Hz |
40Hz-4MHz |
0.1Hz-0.001MHz |
±(1.5% reading + 10) |
Diode |
√ |
Temperature°C°F |
√ |
Buzzer |
√ |
Humidity |
√ |
Auto power-off |
15 min no operation auto power-off |
Perpetual calendar |
√ |
Weight |
126g |
Alarm clock |
√ |
Maximum count |
4000 count |
Data retention |
√ |
Material |
ABS |
Backlit display |
√ |
Battery model |
AAA Battery*2 |
Low power prompt |
√ |
Package Included(Batteries without shipment)
1 x Multimeter
1 x Manual
1 x Watch pen line
1 x Packing box
1 x Storage bag
16 in 1 Combination Line(according your choice)
Usage Precautions:
1. Do not touch the probes directly with your hands to avoid electric shock and ensure personal safety during testing.
2. Before use, inspect the test probes to ensure there is no damaged insulation or exposed metal.
3. Do not use the current and voltage ranges interchangeably to prevent damage to the instrument.
4. It is best to remove the batteries when not in use for a long time to prevent battery corrosion of other internal components of the instrument.
5. If you do not know the magnitud of the voltage or current to be measured, start with the highest range and then select the appropriate range based on the measured value.
