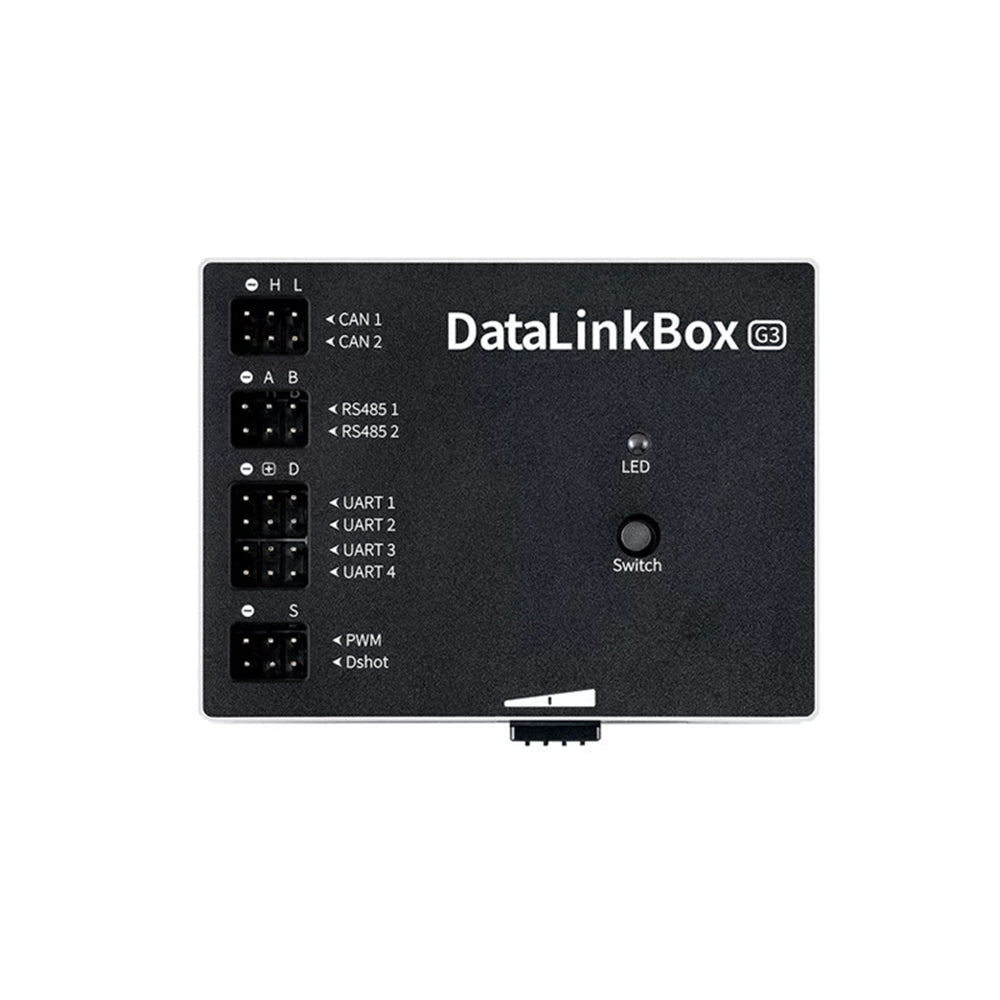

6-81V DataLinkBox G3 Throttle Instant Control Parameter Tuning with Bluetooth for RC FPV Racing Drones

Note:
1. The mobile app currently supports Bluetooth connection only, while the PC app supports USB connection only.
2. The DataLinkBox G3 is compatible only with products featuring CAN communication.
3. Once the ESC firmware is compatible, DataLink V2 will no longer support the use of Independent Parameters or Common Parameters. However, firmware upgrade and related functions in UART mode will remain available.

Specification:
Product Name: DataLinkBox G3
Communication Protocol: UART, CAN, RS485, USB*, Bluetooth*
Operating Voltage: 6~81V
Throttle Mode: CAN*, RS485*, PWM, Dshot
Throttle Output Type: Software interface/Throttle slider
Dimensions: 67mm x 52.8mm x 15mm
Weight: 50g
Internal Storage Function: 128M Byte
*Based on the HOBBYWING protocol Feature:

1. Multi-Surface Application, Means You can Be Ready, Any Time, and Anywhere. 2. Parameter Tuning with Bluetooth.

3. Refreshed FeaturesEnhance User experience, With Real-Time Accessto Device information.

4. Throttle Tuning —Instant Control with a Swipe.

5. All-New Upgrade, Refreshed User Experience.

6. Brand-New Help Center, Support on the Go.

Package Included:
1 x DataLinkBox G3
