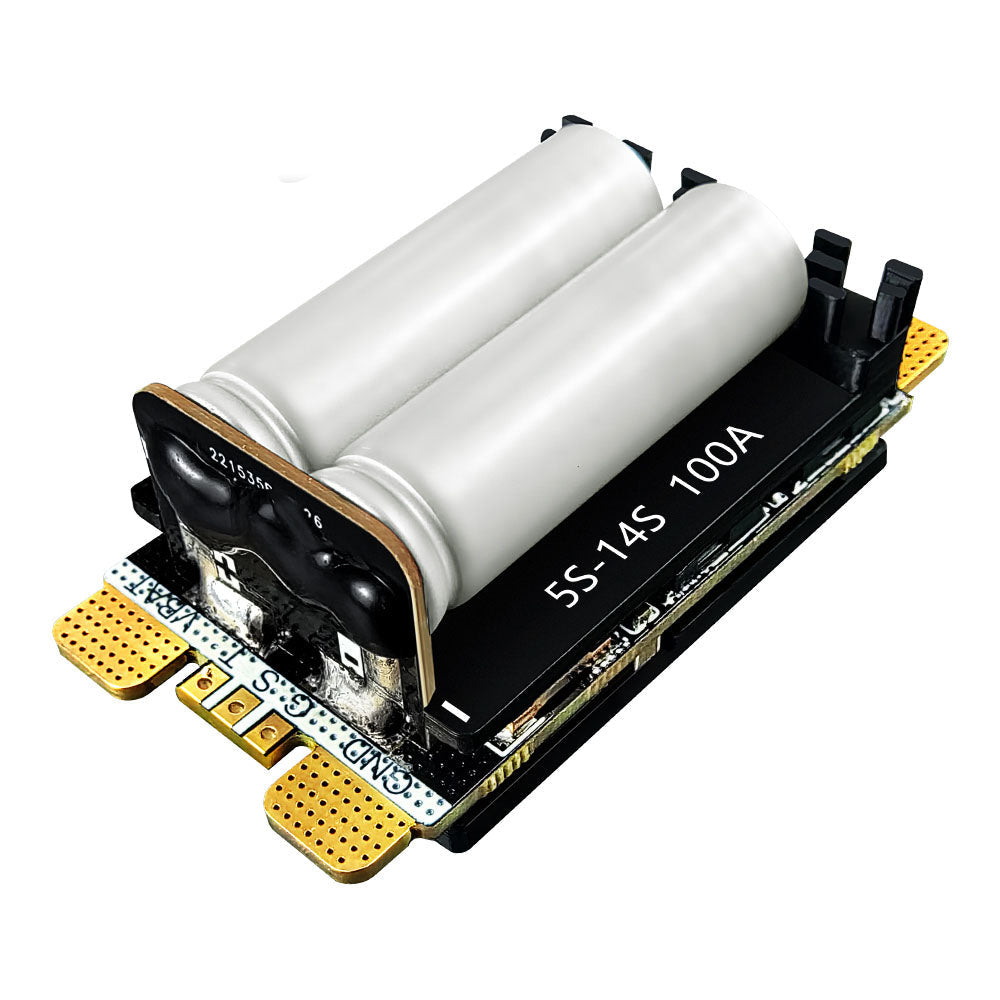

5-14S 100A Brushless ESC AM32 Support Dshot600 Servo PWM for RC FPV Racing Drones Fixed-wing Aircraft RC Cars RC Boats Agricultural Spraying Drones

Description:
The 5-14S 100A ESC is a high-performance brushless electronic speed controller (ESC) that supports 5-14S LiPo battery input and provides a continuous current rating of 100A. It is widely used in FPV racing drones, multi-rotor UAVs, fixed-wing model aircraft, RC cars, RC boats, agricultural spraying drones, and other high-performance RC applications.

5-14S 100A ESC Specifications:
Type: Brushless Motor Electronic Speed Controller (ESC)
Continuous Current: 100A
Burst Current: 130A
Weight: Net Weight 72g ± 5g
Dimensions: 68.5mm (Length) × 34mm (Width) × 24.5mm (Height)
Input Power: 5S–14S LiPo Battery
Firmware Version: MAXKGO_V1_F421
Firmware Upgrade: Supports online firmware updates via AM32.ca
Communication Protocols: Dshot300, Dshot600, Servo PWM
Telemetry Feedback: The TX telemetry port supports ESC data feedback, including voltage, current, temperature, motor RPM, and other operating parameters
BEC: No BEC output
Cooling Fan: No built-in cooling fan
Water Resistance: Not waterproof; only resistant to light splashes

5-14S 100A ESC Features:
1. Mini Size, Powerful Performance
Compact design with high power output, providing excellent performance for various RC applications.

2. Multiple Protection Functions:
-Low Voltage Protection
-Over Temperature Protection
-Motor Stall Protection
-Low-Speed Protection

3. Equipped with a high-performance ARM 32-bit Cortex-core MCU with a processing frequency of up to 120MHz.

4. Stall Protection for RC Cars and Crawlers
Helps prevent ESC damage caused by motor blockage during low-speed or high-load operation.

5. Stuck Rotor Protection for Multi-Rotor Drones
Provides protection against propeller blockage or sudden motor stoppage during flight.

6. Flexible Firmware Upgrade Support
Firmware can be upgraded through:
- Betaflight Passthrough
- Single-wire Serial
- ViaArduino

7. AM32 Web Configurator Support
Supports online parameter configuration through AM32.ca.

8. Multiple Protocol Compatibility
Supports:
-Servo PWM
-Dshot300
-Dshot600

9. EDT (Extended Dshot Telemetry) Support
Enables full Dshot telemetry feedback through the signal wire for real-time ESC monitoring.

10. Sinusoidal Startup Mode
Provides smoother startup performance for RC cars and crawlers, reducing vibration and improving control response.

5-14S 100A ESC Applications:
-Multi-rotor drones
-Fixed-wing model aircraft
-RC cars
-RC boats
