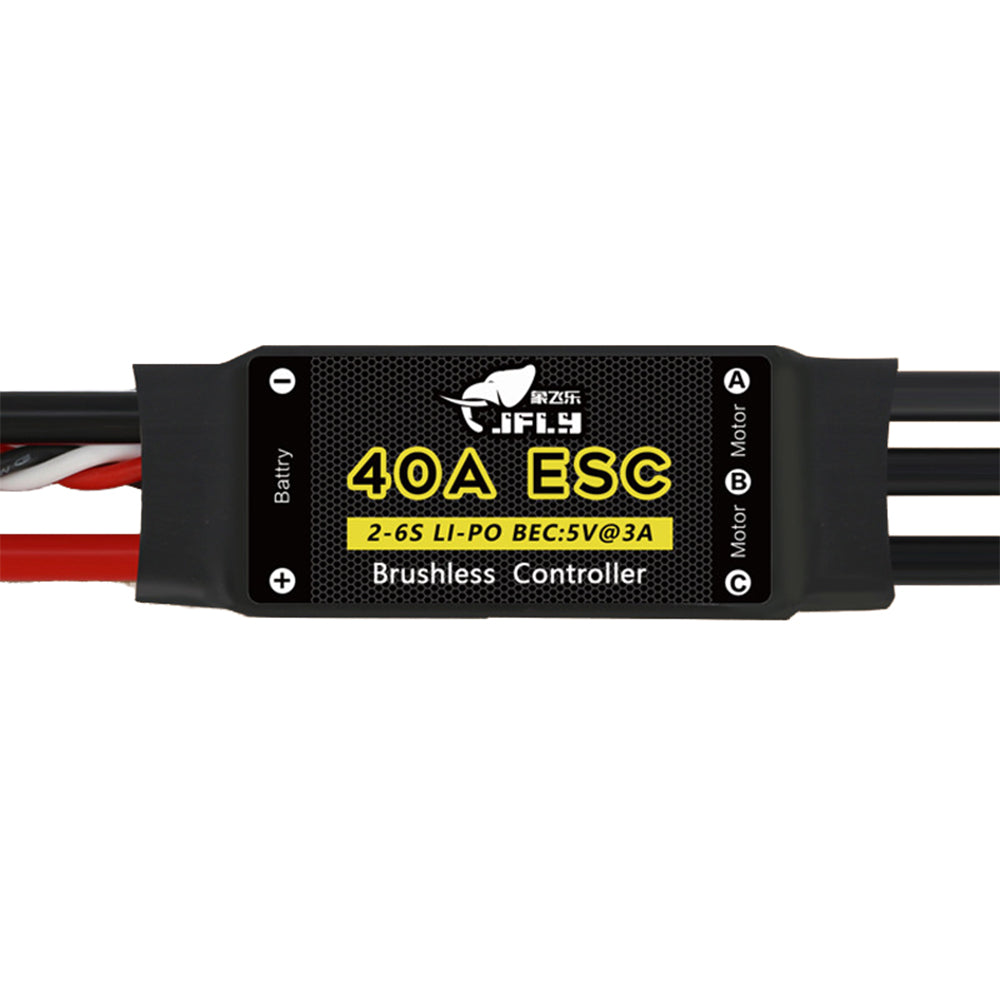

40A Brushless ESC Speed Controller 2-6S Programmable BEC 5V/3A Compatible with PWM for RC Airplane

Specifications:

Brand Name: JFLY

Model: 40A ESC

Continuous Current: 40A

Dimensions: Length 68mm × Width 26mm × Thickness 8mm

Momentary Maximum Current (10s): ≥55A

Supported Battery Type: 2-6S (Lithium Polymer Battery Packs)

Supported NiMH Cells: 5-12 cells

BEC Type: Switching Mode

BEC Output: 5V 3A

Power Cables: Red/Black 14AWG-110mm × 2

Battery Connector Type(Optional): XT60 Plug / T Plug

Motor Cables: Three black 14AWG-90mm × 3

Signal Cable Length: 30cm

Programmable: Yes

PWM Frequency: 8-18KHz

Throttle Range: 1000us-2000us

Weight: Approximately 42.6g

Features:

1. Programmable Parameters: Includes programmable and default parameters. Adjustable via ground control software to unlock additional functions.

2. Default Mode: Default parameters suitable for fixed-wing and multi-rotors, enabling motor startup within 50 milliseconds.

3. Supports Multiple Signal Inputs: Compatible with PWM, Dshot300, Dshot600, Proshot1000 protocols.

4. High Compatibility: Supports various motor models with KV ratings ranging from 100KV to 15000KV.
5. High Efficiency: Motor drive efficiency reaches up to 97%.
6. Wide Voltage Input: Supports 2-6S input voltage range [7.4V - 25.2V].
7. UBEC Integrated Output: Combines DC-DC BEC output for stable, clean power at 5V-3A.
8. Fail-Safe Protection: Automatically stops the motor within 0.5 seconds of signal loss.

40A ESC T Plug Included:

1 x 40A ESC With T Plug

40A ESC XT60 Plug Included:

1 x 40A ESC With XT60 Plug

Program Card Included:

1 x ESC Parameter Tuners (Note: ESC is not included)
