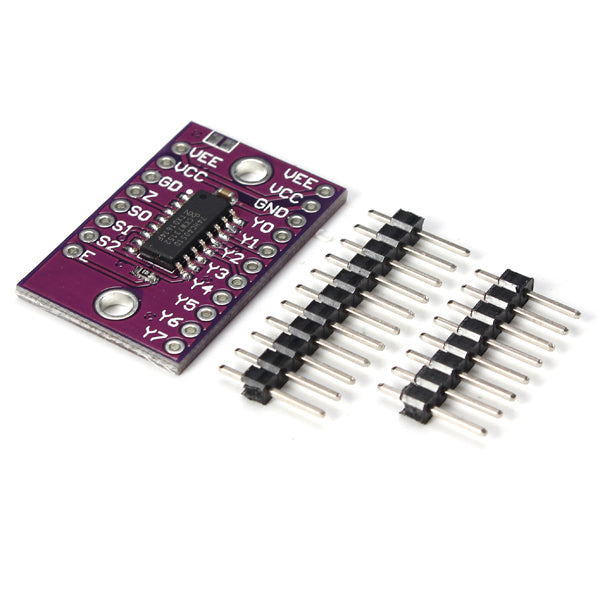

4051 74HC4051 8 Channel Analog Multiplexer Module Sensor Board
$6.99
In Stock
Description
- Brand: LinkMejor
74HCT4051 is a single-pole octal-throw analog switch (SP8T) suitable for use in analog or digital 8:1 multiplexer/demultiplexer applications. The switch features three digital select inputs (S0, S1 and S2), eight independent inputs/outputs (Yn), a common input/output (Z) and a digital enable input (E). When E is HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Features:
Wide analog input voltage range from -5 V to +5 V Complies with JEDEC standard no. 7A Low ON resistance:
80 ohm (typical) at VCC - VEE = 4.5 V 70 ohm(typical) at VCC - VEE = 6.0 V 60 ohm(typical) at VCC - VEE = 9.0 V
Logiclevel translation: to enable 5Vlogic to communicate with±5 V analog signals Typical ‘break before make’ built-in
ESD protection:
HBM JESD22-A114F exceeds 2000 V MM JESD22-A115-A exceeds 200 V CDM JESD22-C101E exceeds 1000 V
Multiple package options Specified from -40℃ to +85℃ and -40℃ to +125℃
Package included:
1 x LinkMejor-4051 74HC4051 8 Channel Analog Multiplexer Module
