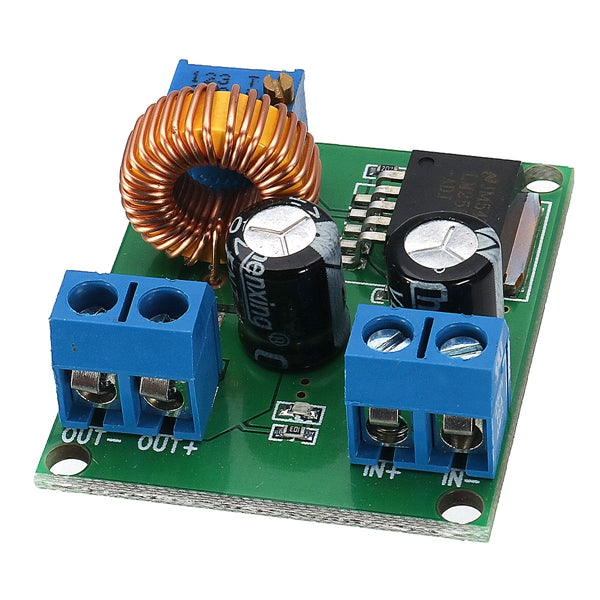

3V-35V To 4V-40V Adjustable Step Up Power Module 3V 5V 12V To 19V 24V 30V 36V Boost Converter
$8.99
In Stock
Description
- Voltage: Boost
Specification:
Input: 3V - 35V
Output: 4V - 40V adjustable
Efficiency: 94% (MAX)
Module size: 37mm x 32mm x 15mm (L x W x H)
Operating temperature: -40 ℃ - 85 ℃
Load capacity: 80W (MAX)
Mode of connection: Wiring terminals are free of soldering, IN is input, OUT is output
Note: The smaller the voltage difference between input and output voltage is, the greater the load capacity is, the higher the efficiency is.
Actual test reference table:
| Input voltage | Output voltage | Maximum output current | Power |
| 3V | 5V | 1A | 5W |
| 5V | 12V | 1A | 12W |
| 5V | 9V | 1.5A | 13.5W |
| 9V | 12V | 2A | 24W |
| 12V | 19V | 1.5A | 28.5W |
| 12V | 24V | 1.2A | 28.8W |
| 19V | 24V | 2A | 48W |
| 24V | 30V | 2A | 60W |
| 30V | 35V | 2A | 70W |
Package included:
1 x adjustable step up power module
1 x adjustable step up power module
