2C23T 3IN1 Dual Channel 10MHZ*2 50MS/s Handheld Digital Oscilloscope Multimeter + Function Signal Generator
Description
Features:
FNIRSI handheld digital oscilloscope multimeter boasts a dual-channel 2X10MHz bandwidth and a 50MS/s real-time sampling rate. This precise oscilloscope promises a detailed, stutter-free waveform capture.
The maximum voltage measurement of this device is ±400V. Suitable for a multitude of electrical applications.
Implements a high-performance FPGA+ADC+MCU hardware architecture, guaranteeing exceptional detail capture in waveform analysis.
Furnished with a full set of trigger functions including auto, single, and normal mode. It allows users to capture specific events or isolates an individual cycle from a train of pulses.
Designed with a one-click self-tuning and a waveform screenshot saving feature. Enables convenient waveform export for subsequent analysis.
Specifications:
Display screen |
2.8 inch HD color screen |
|
Resolution ratio |
320*240 |
|
Charging specifications |
TYPE-C (5V/1A) |
|
Battery |
3000mAh lithium battery |
|
Support functions |
Oscilloscope, Signal generator, Multime (view functional parameters for detail! |
|
Standby time |
6h (laboratory theoretical maximum) |
|
Language |
English |
|
Product volume |
167*89*35mm |
|
Weight |
300g |
|
Channel |
Dual channel |
|
Sample rate |
50M |
|
Analog bandwidth |
10M(dual channel independent 10M) |
|
Storage depth |
32kb |
|
Impedance |
1MQ |
|
Time Base Range |
50ns-10s |
|
Vertical sensitivity |
20mV/div-10V/div (×1) |
|
Maximum measured voltage |
±400V |
|
Trigger mode |
AUTO/Normal/Single |
|
Trigger type |
Rising edge, Falling edge |
|
Display mode |
YT/Scroll/XY |
|
Coupling method |
AC/DC |
|
Save waveform screenshot |
Yes |
|
Computer viewing waveform |
Yes |
|
Channel |
Single channel |
|
Frequency |
1Hz-2MHz |
|
Amplitude |
0.1-3.3V |
|
Function |
Range |
Accuracy |
DC Voltage |
9.999V/99.99V/999.9V |
±(0.5%+3) |
DC current |
9.999V/99.99V/750.0V |
±(1%+3) |
AC current |
9999uA/99.99mA/999.9mA/9.999A |
±(1.2％+3) |
Temperature |
9.999MQ/999.9KQ/99.99KQ/9.999KQ/999.9Q |
±(0.5％+3) |
|
99.99MQ |
(1.5％+3) |
Diode |
999.9uF/99.99uF/9.999uF/999.9nF/99.99nF/9.999nF |
±(2.0%+5) |
|
9.999mF/99.99mF |
±(5.0％+20) |
Resistance |
(-55~1300℃)/(-67~2372°F) |
±(2.5%+5) |
Capacitance |
√ |
|
Continuity test |
√ |
|
Live line detection |
√ |
|
Package Included:
Type A: Standard Version

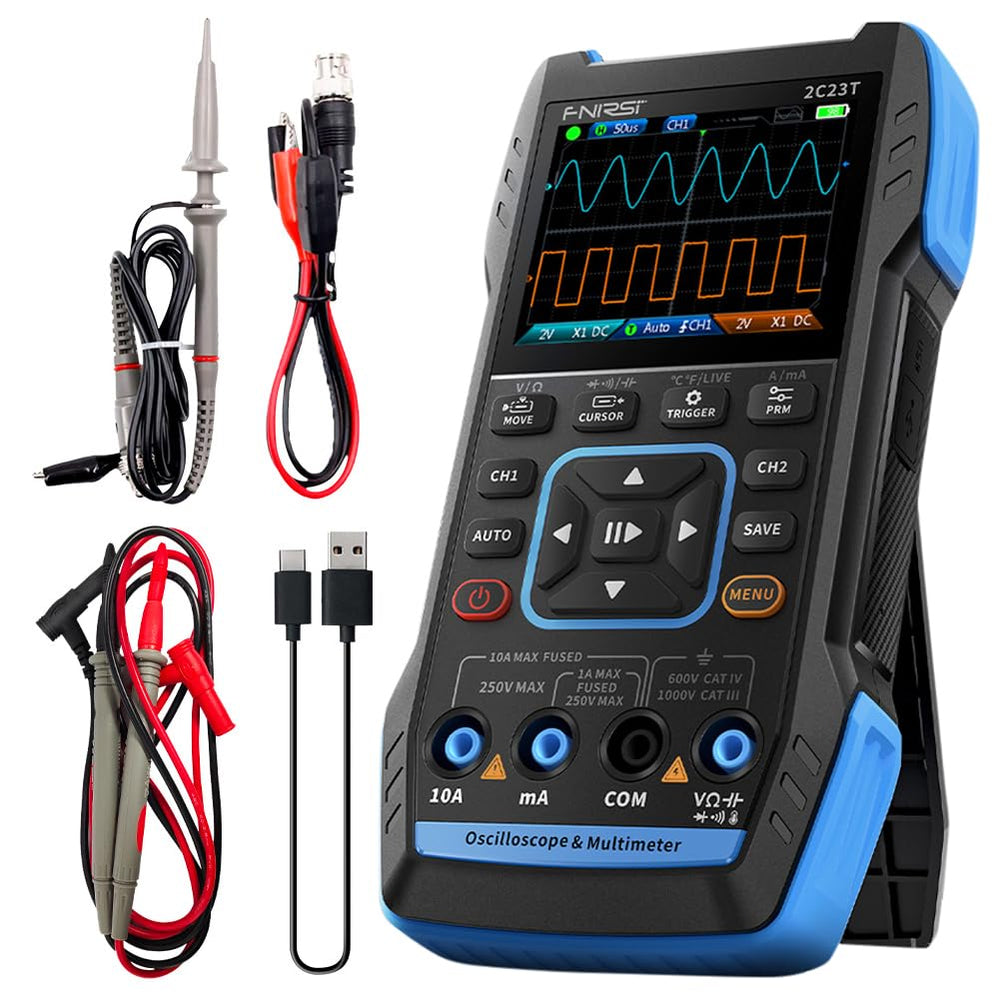

1 x FNIRSI Handheld Digital Oscilloscope Multimeter
1 x 10X Probe
1 x Multimeter Leads
1 x Alligator Clip Probe
1 x Charging Cable
1 x Packing Box
1 x Instructions
Type B: Upgraded Version
1 x FNIRSI Handheld Digital Oscilloscope Multimeter
2 x 10X Probe
1 x Multimeter Leads
1 x Alligator Clip Probe
1 x Charging Cable
1 x Packing Box
1 x Instructions
