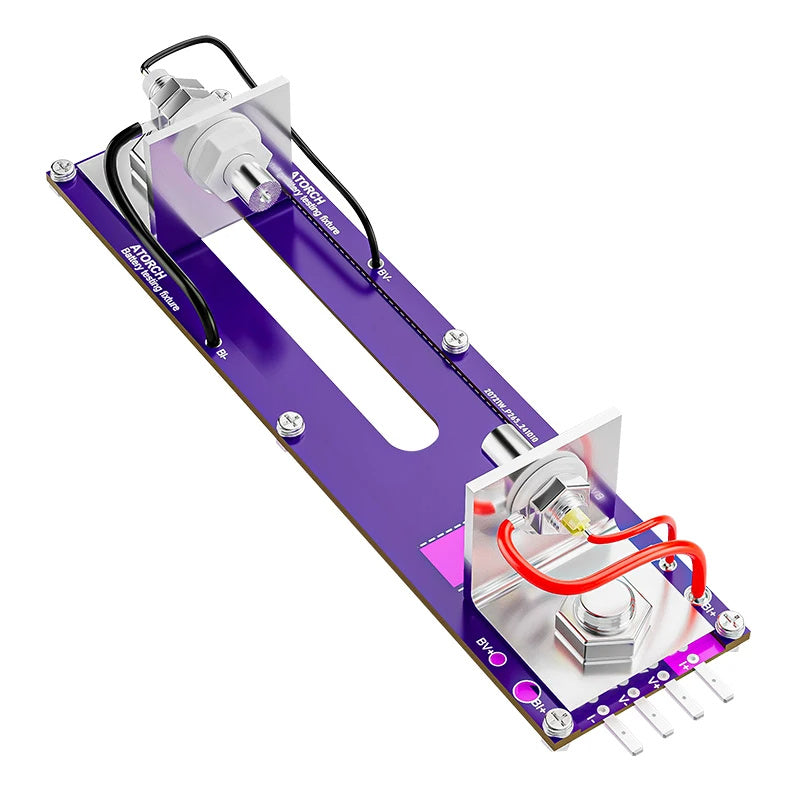

20A 4-wrie Battery Test Stand 18650 Internal Resistance Capacity Tester Fixture Seat Current Voltage Meter

Specifications:

- Material: PCB + Metal + Plastic

- Type: Battery Capacity Tester

- Nominal Current: 20A

- Maximum Current: 30A

- Interface: I+/I- Current Terminal, V+/V- Voltage Wiring

- Size: 20.3 x 5 x 5.5 cm (5.31 x 1.57 x 1.57 in)

- Quantity: 1 Pc (Note: Battery and load tester not included)

Adapt to battery model testing:

【1】18650, 26650, 14500, 16340, 26850, 18350, 32650, 46950 and all other lithium batteries;

【2】All dry batteries, including A, AA, AAA, etc

【3】All button batteries such as 2032, GPA76, LR44, etc.

Features:

1. High Current Testing Capability: Capable of handling up to 30A peak current, ensuring robust performance for diverse testing requirements.

2. Long-Term Testing Stability: Maintains a steady 20A current for extended periods, suitable for comprehensive battery aging tests.

3. Versatile Compatibility: Works seamlessly with ATORCH DL24 series/CL24 series/DL2EW series loads, providing a wide range of testing options.

4. 4-Wire System Precision: Employs a precise 4-wire wiring system for improved accuracy in current and voltage measurements.

5. Wide Battery Range: Suitable for various battery types including lithium batteries, dry batteries, and button batteries, making it highly adaptable to different testing scenarios.

Package Included:

 1 x Battery Capacity Tester Fixture Seat
