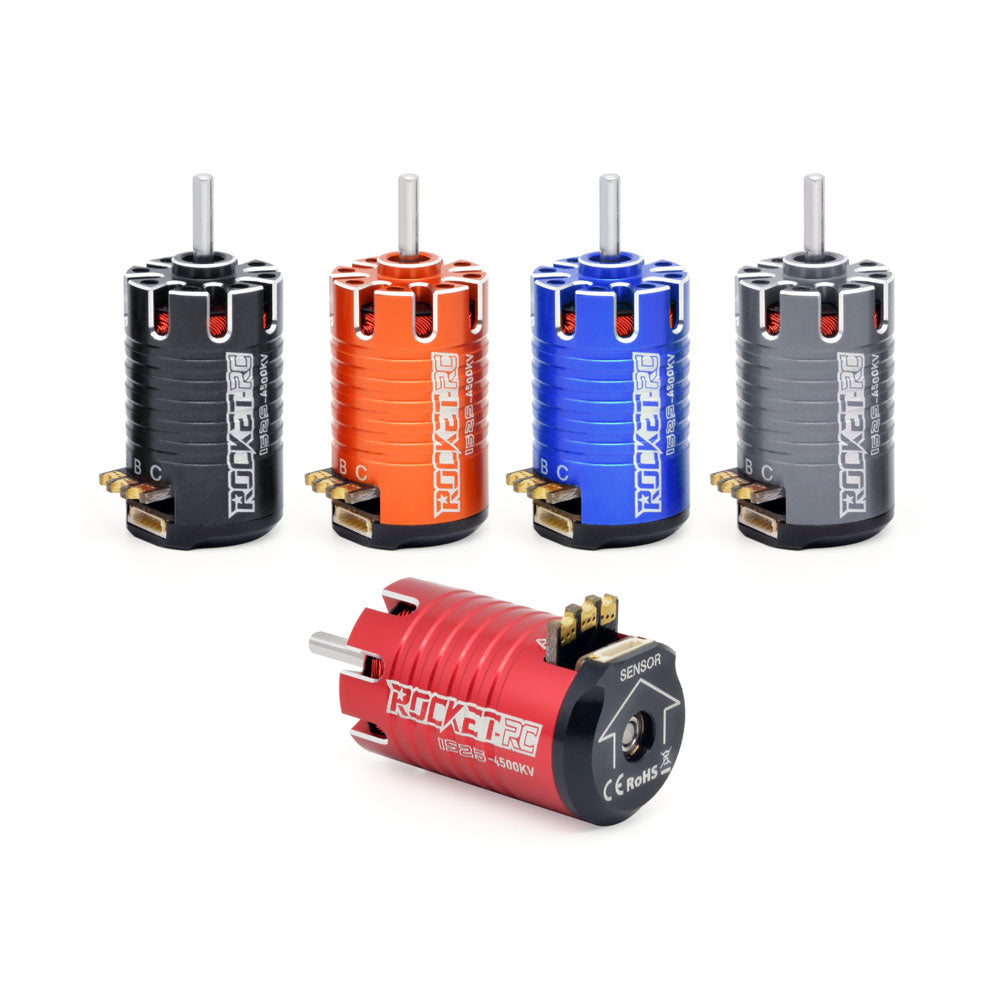

1525 Brushless Sensored Motor 30A ESC LED Program Card for MINI Wltoys 284161 K989 K969 SG 2810 2811 1/24 1/28 RC Cars Vehicles Spare Parts
Description
- Scale: 1:28
- Motor: Brushless
- Color: Black
- ESC Ampere: 20-40A
Description:
Item Number:1525
Item Name:Motor/esc/program card
Material:Metal
Color:Red,black,orange,blue and titanium
Product Size:Motor size is about 15*25mm(diameter*length),esc size is about 21*13.8*11mm
Product Weight:Motor Weight is about 17g,esc weight is about 7.6g(including wires)
Compatible Models:1/24 1/28 drift speed racing rc cars vehicles models,like wltoys 284161 k989 k969 sg 2410 2411 rc car
Specification of Motor:
Sensor Timing:Sensor 0°
KV(RPM/Volt):3500/4500/5500/6800
Teeth:25.5T/21.5T/17.5T/13.5T
Watts:80
Max Voltage:<8.4V/<8.0V(6800kv)
Max Amps:8/9/10/12A
Rotor Poles:2
IO(7.4V):0.25/0.35/0.50/0.60A
Resistance(mQ):0.652/0.414/0.275/0.195
Max RPM:60000
Rotor Size(mm):Diameter 6.0x14.5
Shaft(mm):Diameter 2X10
Online Manual Download Please Click Here
Specification of ESC:
Voltage Input:2S Lipo(6V-8.4V)
Peak Current:80A
continuous Current:30A
Motor Type:Sensored brushless motors for MINI RC Car
B.E.C:6V/7.4V 3A
Waterproof:NO
Car Applicable:1/28 and 1/27
Online Manual Download Please Click Here
Only Motor Package Included:(optional chosen by yourself)
1X Brushless Motor 1525
ESC + Program Card Set Package Included:optional chosen by yourself)
1X Brushless ESC 30A
1X Program Card
