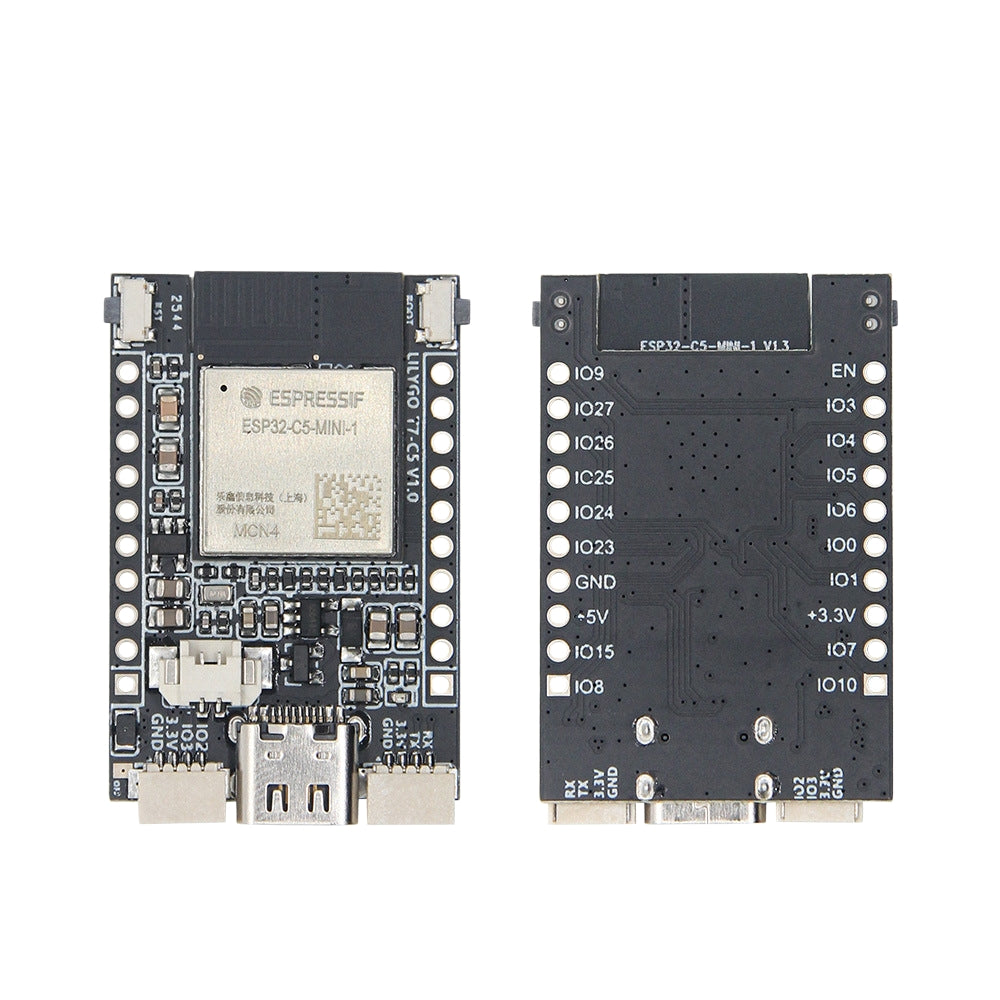

T7-C5 ESP32-C5-MINI-1 Development Board Dual-Band WiFi 6 BLE 5 Thread SoC High Performance Onboard Qwiic Dev Module - Black

Specification:
Model: T7-C5
Product Name: ESP32-C5-MINI-1 Development Board
Main chip: ESP32-C5-MINI-1 (dual‑band Wi‑Fi 6, BLE 5, IEEE 802.15.4)
Flash memory: 4MB
Interface: USB Type‑C for power and programming
Power pins: 5V, 3.3V, GND
I/O pins: Labeled IO0–IO10, IO15, IO23–IO27, EN, RX, TX
Qwiic JST-SH 4‑pin connector (GND, 3V3 OUT, SDA, SCL)
Size: 41mm (L) x 27mm (W) x 4mm (H)

Features:
1. Compact ESP32-C5 Wi‑Fi 6 + BLE 5 + 802.15.4 board for IoT and smart devices.
2. USB Type‑C port for fast uploading and easy power supply from PC or adapter.
3. Clearly marked GPIO and ADC pins for quick wiring and prototyping.
4. Onboard Qwiic connector for plug‑and‑play sensor and module expansion.
5. 4MB flash suitable for MicroPython, ARDUIN0, and ESP-IDF projects.
6. Breadboard‑friendly layout with dual rows of through‑hole pins.

Package Includes:
1 x LILYGO T7-C5 ESP32-C5-MINI-1 development board
2 x 1x15 male pin headers
1 x 2‑wire power cable (JST connector)
