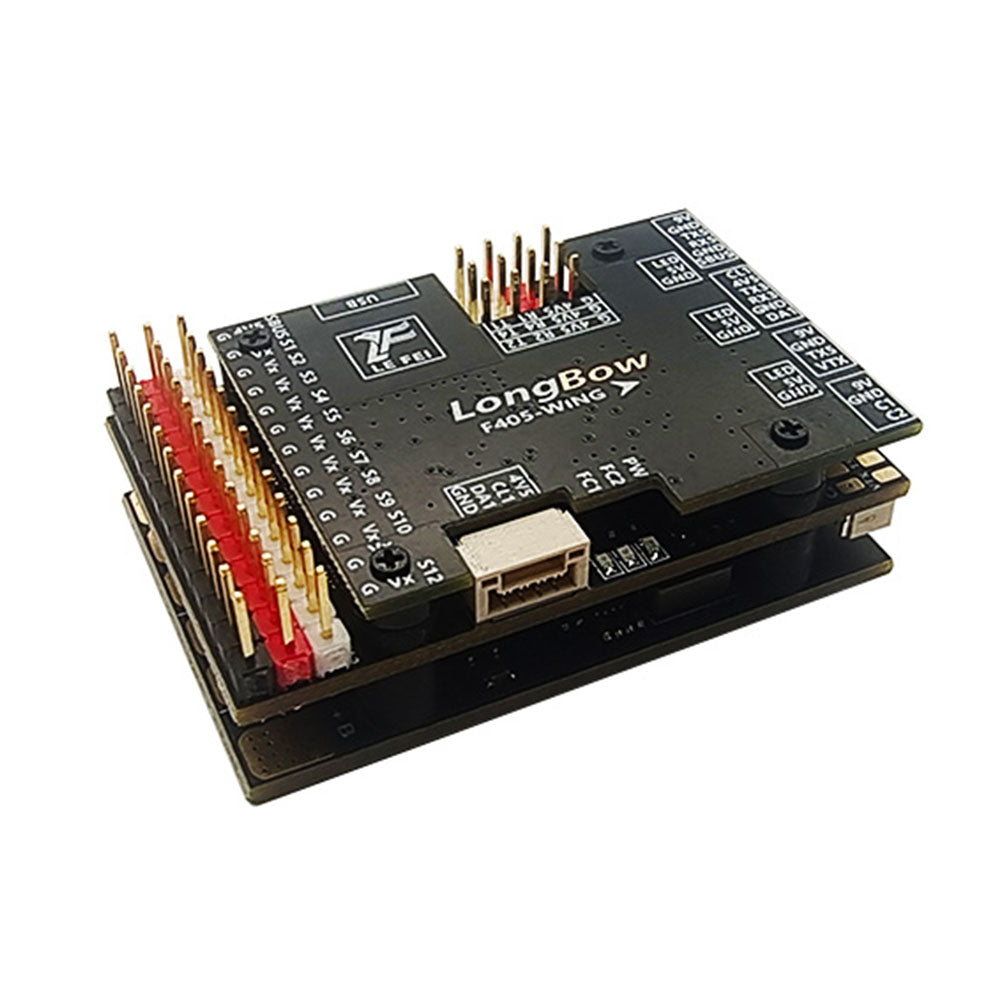

Lefei LongBow F405 WING Flight Controller for RC Airplane Support VTOL Ardupilot INAV

• RC Drone Spare Parts: Flight Controller

Specifications:

Brand Name: Lefei

Product Name: LongBow F405 WING
MCU: STM32F405, 168MHz,1MB Flash

IMU: ICM-42688-P

BARO: SPL006-001

OSD: AT7456E

BLACK BOX: MicroSD

UART: x6 uarts(UART1,UART2, UART3, UART4, UART5,UART6 (connect to wireless))

I2C: 1x Compass,AirSpeed

ADC: 2x (Voltage, Current)

PWM: 12

ELRS/CRSF: Connect to UART1

SBUS: Built in inverter (UART2 - RX)

STATUS LED: 3×LED

FIRMWARE:
INAV: Longbow F405WING
Default: Ardupilot: LongBow F405 WING

LongBow F405 WING PDB Speceifications:

Input: 7~36V (2~6S LiPo)

Voltage: Ratio: 1K: 10K

Current: Continuous 120A, MAX 215A

FC BEC: 5.2V, Continuous 2A, Max 3A

VTX Camera BEC: 9V/12v, Continuous 2A Max 3A

Servo BEC: 5.2V/6V/7.2V, Continus 6A, Max 8A

LongBow F405WING WIRELESS BOARD Speceifications:
Mode:

BLE, connect LongBow APP

Wifi, connect Qground, MIssionPlanner, Inav Configure

BT SPP, connect Qground, MIssionPlanner, Inav Configure

Onboard RGB:

3× WS2812. indicate Arm and GPS status

5.2V - 1.3A, support 6 LEDS

English Manual, Click Here

Firmware

APM Firmware, Click Here

INAV Firmware, Click Here

Package Included:
1x Lefei LongBow F405 WING Flight Controller
