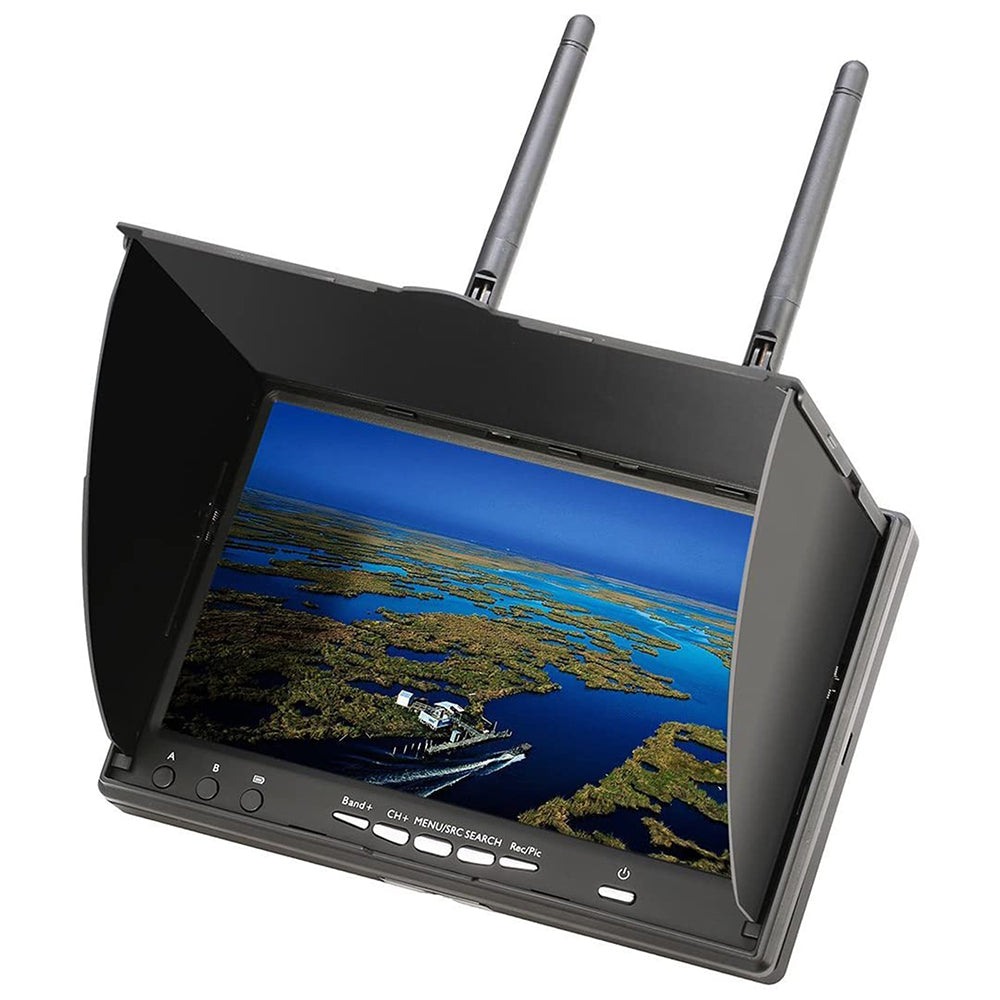

LCD LT5802D 5.8GHz 40CH 800*480 7" DVR FPV Monitor Built in Dual Receiver Battery with Antennas for RC Drones - Black / Monitor Set
Description
- Brand: Others
- Camera Resolution: Without
- RC Drone Spare Parts: FPV Monitor
- Frequency: 5.8GHz
- Applicable User: Intermediate
- Interface Type: RP-SMA Female
- Application: Other
Specifications:
Built-in 5.8Ghz Dual receiver automatically for best reception
Built-in 2CH 5.8Ghz AV output and 1CH AV input
Built-in high performance Li-POLYMER Battery: 2000mAH/7.4V
Work status OSD display: RSSI indication; Battery indicator; Channel indication
A key to automatic signal search
Monitor：
| Item Name: | LT5802D Monitor |
| Format: | JPEG, AVI |
Screen Size: |
7" |
| Screen Type: | TFT LCD Screen/long life, LED backlight |
| Menu language | Support Chinese and English menu |
| Resolution: | 800*480 |
| Brightness: | 600cd/m2 |
| View Angle: | 140/120 degree (Horizontal/Vertical) |
| Size: | 180mm x 120mm x 50mm(Note:Sunshield height:28mm) |
| Working Voltag: | DC 7~16V |
| Power Consumption: | max 650 mA @12V |
| Battery Charging Current: | 850mA @12V ( max ) |
| Working Temperature: | -10℃~+ 65 ℃ |
| Connectors: | RP-SMA female(outer needle) |
| Antennas Connectors: | RP-SMA male (inner hole) |
| Note: |
The AV IN port supports audio & video input only, no audio output function. |
Features:
Built-in Dual Receiver for best reception
Dual buffered AV outputs
Not affect by 2.4GHz R/C Radios
AV Receiver with Diversity inputs
Small, light weight
5 Bands and total 40 Channels
Built-in battery , easy to carry and outdoor use
A key to automatic signal search,Simple operatio
Work status OSD display:Always be aware of the device working condition.
Notice: It can't receive 2 different channels at the same time.
Package Included:
Combo One： 1 x 7 Inch LCD Screen Receiver Monitor with built in Rechargeable Battery
2 x 5.8G Antenna
2 x AV Cable
1 x Charger
