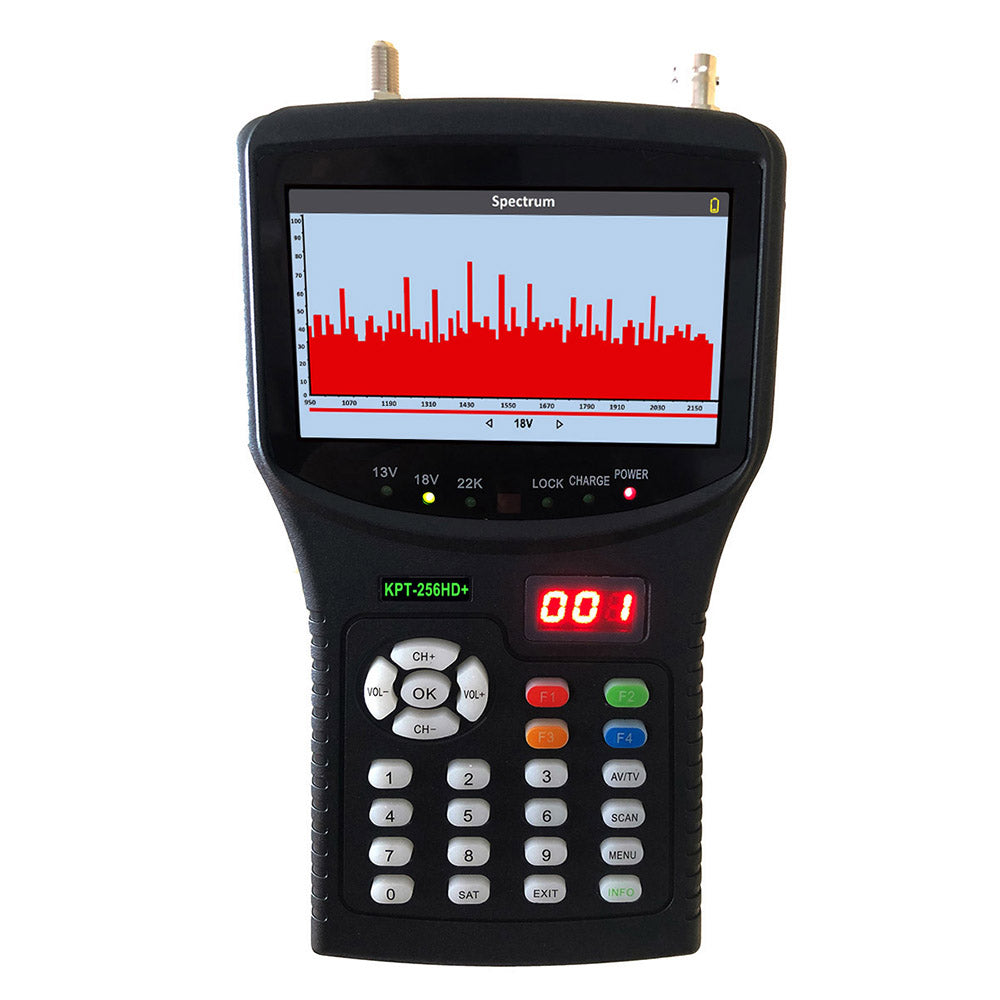

KPT-256HD+ Digital Satellit Finder Meter 4.3" LCD DVB-S2 H.265 Spectrum Analyzer AHD TVI CVI 8MP CCTV Camera Tester Monitor

Specification

Display: 4.3" high-resolution digital display LCD

Dots Pixels: IPS 480*272 (391680 Pixels)

Color System: PAL/NTSC

Satellit Support: DVB-S/S2, MP4 HEVC (H.265), AVS/AVS+

Frequency Range: 950MHz-2150MHz

LNB Power & Switch: 13V/18V/22K

Input Impedance: 75Ω (F)

AHD Input: Support AHD/TVI/CVI camera, Max: 8MP

HDMI Output: 576i, 576P, 720P, 1080i, 1080P

Lithium Battery: DC 12V 5000mAh (build-in)

Input Voltage: DC 12V 2A

Product Size: 212x123x48mm

Net Weight: 540g (including battery pack)

Menu Language: English, Farsi, Arabic, French, Russian, Turkish, German, Portuguese, Spanish, Vietnamese, Indonesian

Features

1) Play live FTA digital channels on the 4.3-inch screen with support for DVB-S/S2 and H.265 HEVC formats.

2) Provides real-time spectrum analysis to lock satellit signals, displaying Strength, Quality, BER, and PWR.

3) Functions as a CCTV test monitor, supporting AHD, TVI, and CVI camera video input up to 8MP.

4) Includes a built-in 5000mAh battery and features a DC12V power output to supply power to CCTV cameras.

5) Multifunctional 2-in-1 design combines a Satellit TV Finder, and an AV input monitor.

Package Included

1 x Adapter

1 x Car Power

1 x LNB Line

1 x DC Line

1 x AV line

1 x Bag

1 x Manual

1 x Remote
