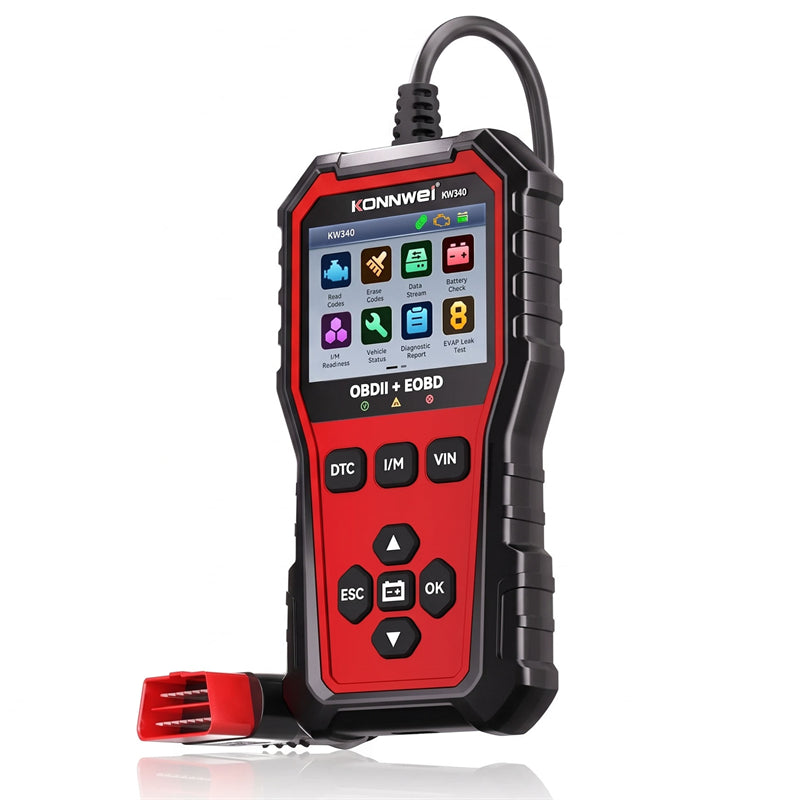

KONNWEi KW340 Car CAN OBD2 EOBD Diagnostic Tool Engine Battery Test Read Fault Code Clear Real-Time Data O2 Inspection Tool - Red

Specification:

Brand Name: KONNWEi

Model: KW340

Item name: Car OBDII Diagnostic Code Reader

Feature: Read Codes, Erase Codes, O2 Sensor Test, On-Board Monitoring, I/M Readiness, Evap System, Data Stream, Vehicle information, Freeze Frame, Battery Voltage Test

Voltage: 8V ~ 18V

Current: min--max: 131mA ---- 171mA

Storage Temperature: -20 to 70°C (-4 to 158°F)

LCD Screen: 2.8" 320x240 pixel TFT Color Screen (day & night mode theme)

Dimensions: 163 (L) x 85.5 (W) x 23.5 (H) mm

Power: From vehicle battery

One-click keys: DTC, I/M, VIN, battery check

Language: English, German, French, Russian, Spanish, Polish, Italian, Portuguese, Dutch

Update & Print: Yes

Size: 24 x 164 x 86 mm

Weight: 0.36 kg

Features

1. Designed for car OBDII and EOBD diagnostics, suitable for engine and battery testing on compatible vehicles.

2. Supports read codes, erase codes, and clear fault codes for efficient engine diagnostics.

3. 2.8-inch TFT color screen shows real-time data, vehicle information, and freeze frame clearly.

4. Supports O2 sensor test, on-board monitoring, I/M readiness, and evap system inspection.

5. One-click keys for DTC, I/M, VIN, and battery check improve operation convenience.

Package included

1 x KW340

1 x 16 PIN OBD2 Cable

1 x Colorful Box

1 x User Manual

1 x Type-C USB Cable
