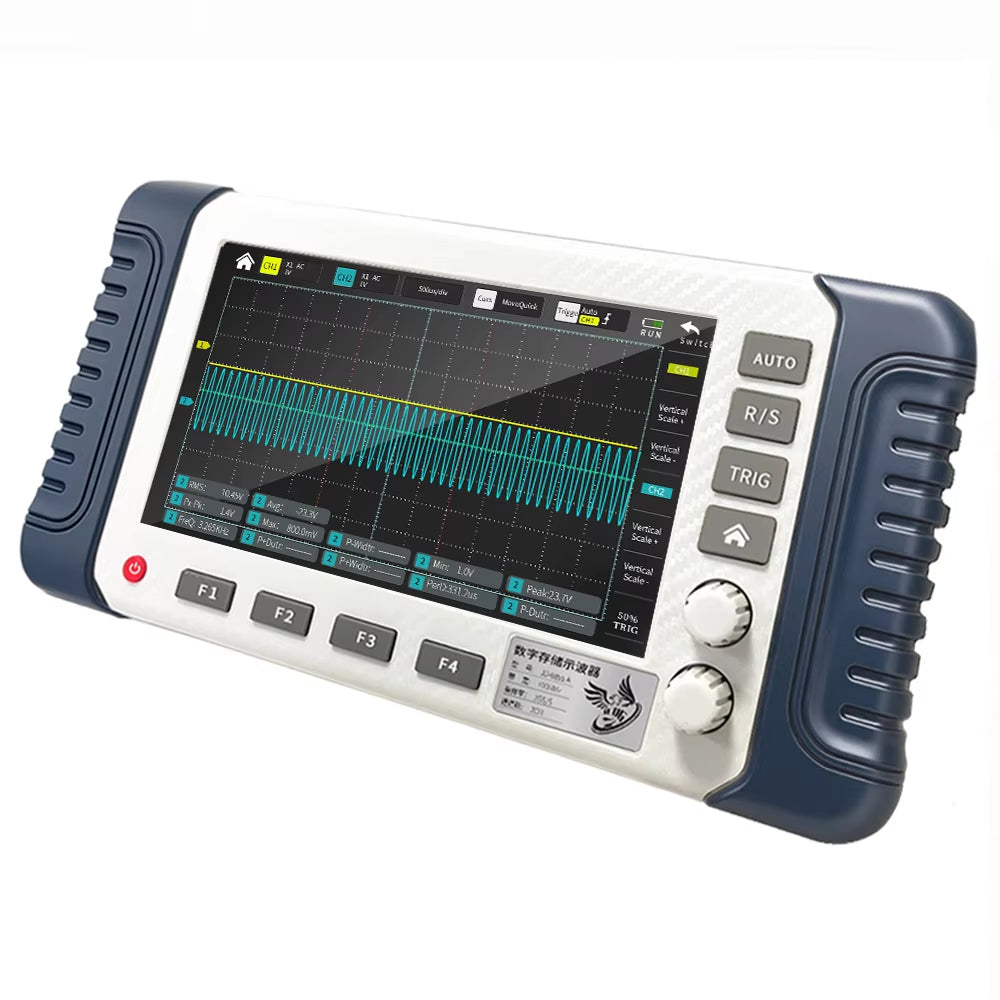

JD-6855B 3-in-1 Digital Oscilloscope Multimeter Signal Generator Dual Channel 100M Bandwidth 1GSa/S Sampling Multifunction Tester
$159.99
In Stock
Description
Specifications:
Product Model: JD-6855B
Function: Oscilloscope + Multimeter + Signal generator
Oscilloscope
Channels: Dual Channel
Sampling Rate: 1GSa/S
Bandwidth: 100M
Sensitivity: 10mv---100v
Time Base: 10ns ---200ms
Coupling: AC, DC
Trigger Method: Rising edge, falling edge
Voltage: ±5%
Trigger Mode: Automatic, single, regular
Frequency Accuracy: 8 bit
Storage Depth: ±0.01%
Measurement Parameters: Max, Min, Pk-Pk, Peak, RMS, P+Duty, P-Duty, P+Width, P-Width, FreQ, PerD
Digital Multimeter:
DC Voltage: 0.1mV~1000V
AC Voltage: 1mV~750V (TRMS)
Direct Current: 10μA~10A
Alternating Current: 100μA~10A (TRMS)
Resistor: 0.01Ω~100MΩ
Capacitance: 1pF~100mF
On-off: <50Ω Trigger buzzing
Diode: 0v~1.5v
Signal Generator:
Output Waveform: Zhengxuan wave, sawtooth wave, triangular wave, sqw
Frequency: 1HZ~50KHZ 100KHZ~10MHZ
Amplitude: 0V~3.0VPP
Phase: Non-adjustable
Duty Cycle: Adjustable
Bias: Adjustable
Features:
1. 3-in-1 design combines oscilloscope, multimeter, and signal generator in one unit for repair, testing, R&D, and debugging.
2. Dual channel oscilloscope with 100M bandwidth and 1GSa/S sampling rate supports clear waveform analysis.
3. Supports AC and DC coupling, rising edge and falling edge trigger methods, plus automatic, single, and regular trigger modes.
4. Built-in multimeter covers DC voltage, AC voltage, direct current, alternating current, resistor, capacitance, on-off, and diode functions.
5. Integrated signal generator supports Zhengxuan wave, sawtooth wave, triangular wave, and square wavewith adjustable duty cycle and bias.
Package Included:
1 x JD-6855B Kit
