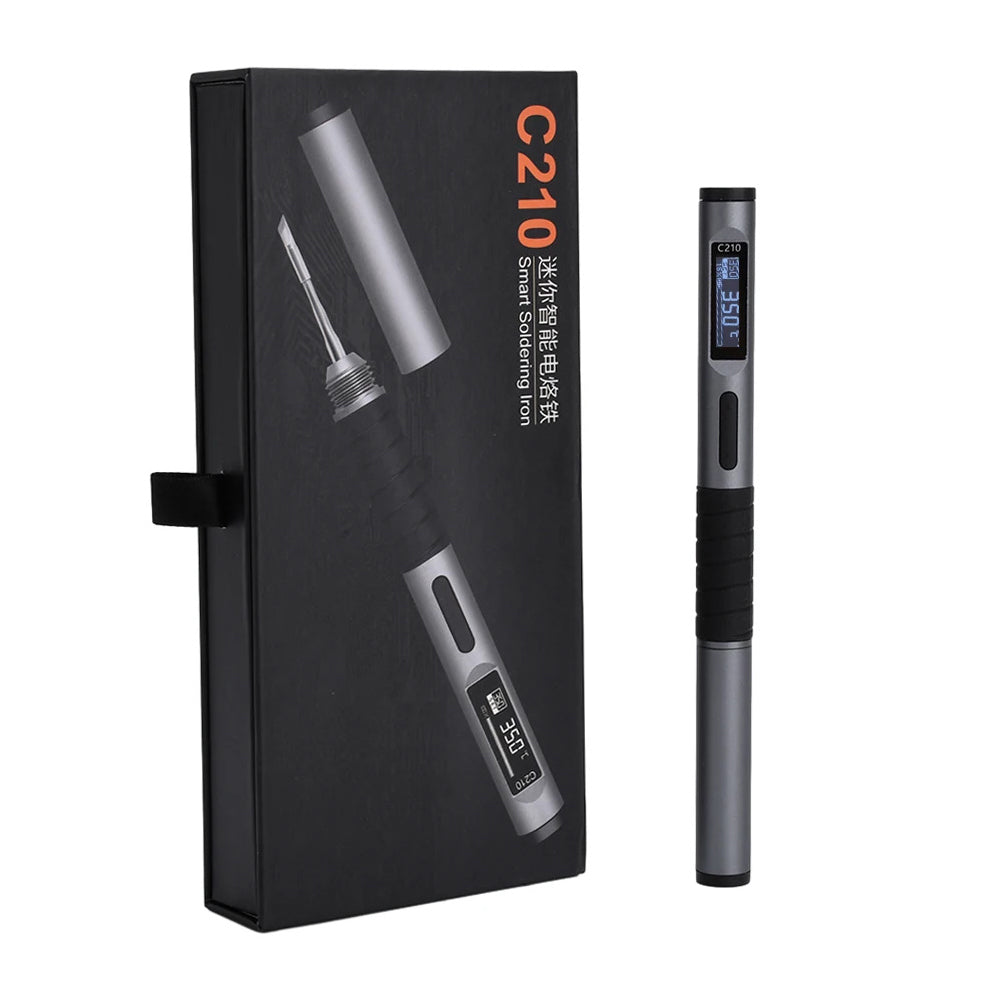

Intelligent Portable Welding Pen Type-C Interface 18-100W Adjustable Power OLED Display Fast Heating Temperature Control 80-450℃ 176-842℉ - Black

Specifications:

Product Name: Intelligent Portable Welding Pen

Power Interface: Type-C (needs to be used with fast charging head)

Working Voltage Range: DC 9~20V

Type-C Fast Charging Protocol: PD2.0/3.0 QC2.0/3.0

Temperature Control Range: 80~450℃ (176-842℉)

Heating Power (Adjustable): 18~100W

Overall Dimensions: L175mm φ14mm (including sleeve)

Screen: 0.87'' OLED (128*32 pixels)

Heating Core Model: C210

Heating Core Resistance: 2.1Ω

Tin Plating Time: 2s (100W)

Features:

[Versatile Power Supply] Features a Type-C interface supporting multiple power methods including PD/QC fast charging heads and power banks.

[Adjustable Power Output] Selectable voltage range and adjustable current for achieving power levels from 18 to 100W.

[Wide Working Voltage] Supports a broad working voltage range from 9 to 20V, catering to various tasks.

[OLED Display] Equipped with a clear and intuitive 0.87'' OLED screen, showing real-time working status.

[Intelligent Temperature Control] Fast tinning in 2-5 seconds, accurate temperature control, fast temperature recovery, and customizable settings including sleep mode, temperature units, and language options.

Package Included:

1 x Host

1 x Heating Element (KU Head)

1 x USB Cable (Type-C)
