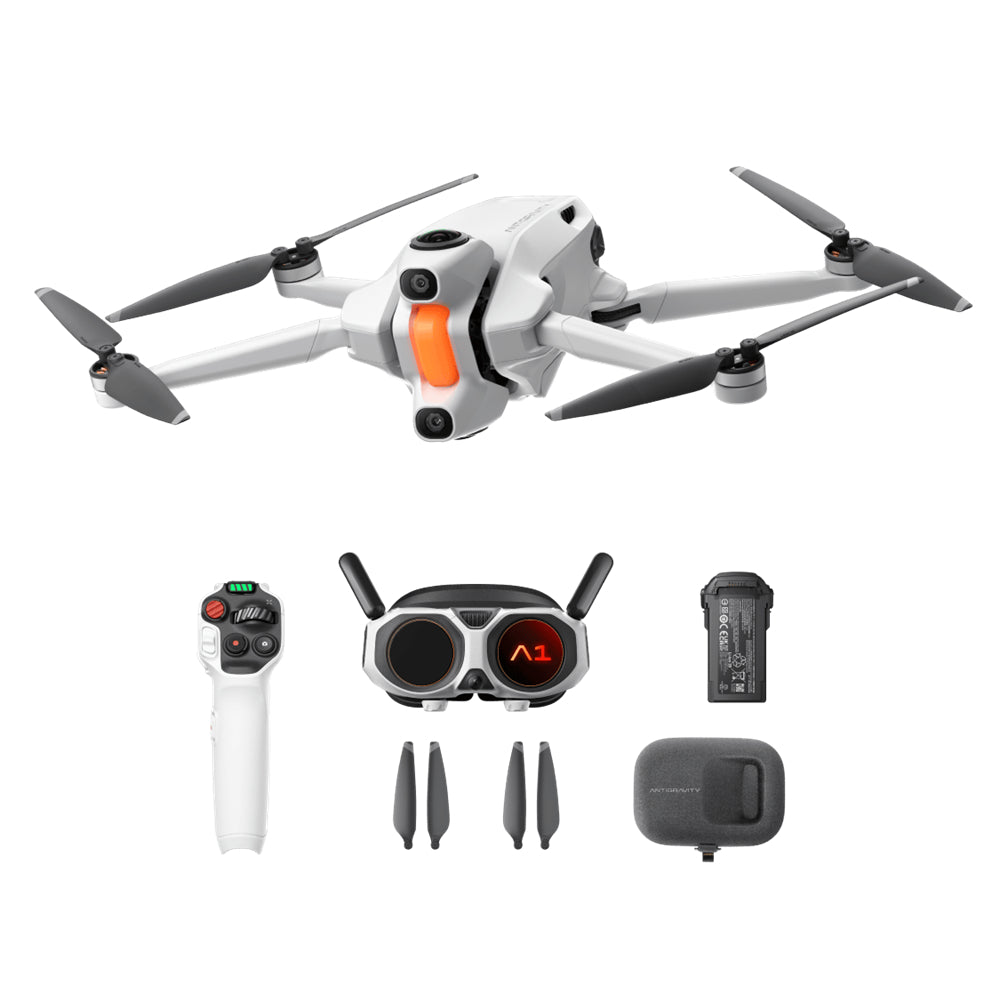

Antigravity A1 HD 360 Professional Panoramic RC FPV Racing Drone RTF with Vision Goggles and Grip Motion Controller

Drone

Class

EU C0 (with Standard Flight Battery)

EU C1 (with High-Capacity Battery)

Takeoff Weight

249 g (with Flight Battery)

291 g (with High-Capacity Flight Battery)

Dimensions

Folded: 141.3 × 96.2 × 81.4 mm (5.56 × 3.79 × 3.20 in) (L×W×H)

Unfolded (propellers extended): 308.6 × 382.3 × 89.2 mm (12.15 × 15.05 × 3.51 in) (L×W×H)

Maximum Flight Time

24 minutes (with Flight Battery)

39 minutes (with High-Capacity Flight Battery)

*Tested in a controlled windless environment at 25°C (77°F), 5.2K 30fps (video recording disabled), with the drone flying forward at 6 m/s (13.4 mph) at an altitude below 50m (164 ft) until low-battery auto-landing was triggered. Flight time may vary under different conditions.

Maximum Flight Distance (per charge)

13 km (8.0 mi) (with Flight Battery)

23 km (14.3 mi) (with High-Capacity Flight Battery)

‌‌*Tested in a controlled windless environment at 25°C (77°F), 5.2K30fps (video recording disabled), with the drone flying forward at 12 m/s (26.8 mph) at an altitude below 50 m (164 ft) until low-battery auto-landing was triggered. Flight time may vary under different conditions

Max Ascen Speed

8 m/s (17.9 mph) (S Mode)

6 m/s (13.4 mph) (N Mode)

3 m/s (6.7 mph) (C Mode)

*Tested in a controlled windless environment at 25°C (77°F) at an altitude below 50m (164 ft).

Max Descent Speed

8 m/s (17.9 mph) (S Mode)

6 m/s (13.4 mph) (N Mode)

3 m/s (6.7 mph) (C Mode)

*Tested in a controlled windless environment at 25°C (77°F) at an altitude below 50m (164 ft).

Max Horizontal Speed

(at sea level, no wind)

16 m/s (35.8 mph) (S Mode)

12 m/s (26.8 mph) (N Mode)

3 m/s (6.7 mph) (C Mode)

*Tested in a controlled windless environment at 25°C (77°F) at an altitude below 50m (164 ft).

Max Wind Speed Resistance

10.7 m/s (24 mph) (Level 5)

Max Takeoff Altitude

4,000 m (13,123 ft) (with Flight Battery)

3,000 m (9,842 ft) (with High-Capacity Flight Battery)

Global Navigation Satelite System

GPS + Galileo + Beidou

Hovering Accuracy Range

Vertical:

±0.1 m (0.33 ft) (with vision positioning) | ±0.5 m (1.64 ft) (with GNSS positioning)

Horizontal:

±0.1 m (0.33 ft) (with vision positioning) | ±0.5 m (1.64 ft) (with GNSS positioning)

Operating Temperature

-10°C to 40°C (14°F to 104°F)

Internal Storage

20GB

Internal File System

exFAT

Supported Storage

microSD (up to 1TB)

Recommended Memory Cards

SaDisk

SaDisk Extrem PRO 64GB V30 U3 A2 microSDXC

SaDisk Extrem PRO 128GB V30 U3 A2 microSDXC

SaDisk Extrem PRO 256GB V30 U3 A2 microSDXC

SaDisk Extrem PRO 512GB V30 U3 A2 microSDXC

SaDisk Extrem PRO 1TB V30 U3 A2 microSDXC

Lexa

Lexa Silver Plus 64GB A2 V30 microSDXC

Lexa Silver Plus 128GB A2 V30 microSDXC

Lexa Silver Plus 256GB A2 V30 microSDXC

Lexa Silver Plus 512GB A2 V30 microSDXC

Lexa Silver Plus 1TB A2 V30 microSDXC

Kington

Kington CANVAS GO! Plus 64GB A2 V30 microSDXC

Kington CANVAS GO! Plus 128GB A2 V30 microSDXC

Kington CANVAS GO! Plus 256GB A2 V30 microSDXC

Kington CANVAS GO! Plus 512GB A2 V30 microSDXC

Kington CANVAS GO! Plus 1TB A2 V30 microSDXC

Camera

Image Sensor

1/1.28-inch

Lens Aperture

F2.2

Video Resolution

8K: 7680×3840@30/25/24fps

5.2K: 5248×2624@60/50/30/25/24fps

4K: 3840×1920@100fps

4K Slow Motion: 3840x1920@30/25/24fps

Photo Resolution

55MP (10496×5248)

14MP (5248×2624)

Video Format

INSV (Exported through Antigravity App or Antigravity Studio)

Photo Format

INSP (Exported through Antigravity App or Antigravity Studio)

DNG

Video Modes

Standard Video, Slow Motion

Photo Modes

Standard Photo, HDR, Burst, AEB

Video Encoding Format

H.264、H.265

Max Video Bitrate

170Mbps

ISO Range

100-6400

Shutter Speed

14MP Photo: 1/8000-1/2s

55MP Photo: 1/8000-1/20s

Sensing

Sensing Type

Forward and downward binocular vision system, supplemented with a 3D infrared sensor at the bottom of the drone

Forward

Measurement Range: 0.5–18 m (1.6–59.1 ft)

Effective Sensing Speed: Flight Speed ≤ 12 m/s (26.8 mph)

FOV: Horizontal 93°, Vertical 104°

Downward

Measurement Range: 0.3–7.5 m (1.0–24.6 ft)

Effective Sensing Speed: Flight Speed ≤ 6 m/s (13.4 mph)

FOV: Front and Back 107°, Left and Right 90°

Operating Environment

Forward:

Surfaces with discernible patterns and adequate lighting (lux > 15)

Downward:

Surfaces with discernible patterns, diffuse reflectivity > 20% (e.g. cement pavement, stout trees), and adequate lighting (lux > 15)

Video Transmission

Video Transmission System

OmniLink 360

Live View Quality

2K@30fps

Operating Frequency

2.400 GHz-2.4835 GHz

5.150 GHz-5.250 GHz

5.725 GHz-5.850 GHz

*5.150GHz-5.250 GHz and 5.725 GHz-5.850 GHz can be used only in coutries and regions where permitted by local laws and regulations.

Transmitter Power (EIRP)

2.4 GHz: < 30 dBm (FCC) | < 20 dBm (CE/SRRC/MIC)

5.1 GHz: < 23 dBm (CE) | < 21 dBm (FCC)

5.8 GHz: < 30 dBm (FCC/SRRC) | < 14 dBm (CE)

Max Transmission Distance

(open, free of interference)

10 km (6.2 mi) (FCC)

8 km (5.0 mi) (SRRC)

6 km (3.7 mi) (CE)

4 km (2.5 mi) (MIC)

*Tested outdoors at 25°C (77°F) in an open, interference-free environment. Data reflects maximum one-way transmission distance without return-to-home under each standard. Actual performance may vary depending on environment, usage, and firmware.

Max Transmission Distance

(open, with interference)

Strong Interference (urban/industrial): approx. 1–4 km (0.6–2.5 mi)

Medium Interference (suburban): approx. 3–6 km (1.9–3.7 mi)

Low Interference (seaside/suburb): approx. 5–10 km (3.1–6.2 mi)

*Tested under FCC standard in open environments with typical interference. Used for reference purposes only.

Max Transmission Distance

 (obstructed, with interference)

Low Interference/Buildings: approx. 0.1–0.5 km (0.06–0.31 mi)

Low Interference/Trees: approx. 0.5–3 km (0.31–1.9 mi)

*Tested under FCC standard in obstructed environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.

Max Transmission Rate

30Mbps

Average Latency

Approx. 150ms

*Tested in a open, interference-free environment. Actual latency may vary depending on the environmental differences.

Antenna

4 antennas, 2T2R

Wi-Fi

Protocol

802.11 a/b/g/n/ac

Operating Frequency

2.400–2.4835GHz

5.150–5.250GHz

5.725–5.850GHz

*5.150–5.250 GHz and 5.725–5.850GHz are only available in select countries and regions in accordance with local regulations.

Transmitter Power (EIRP)

2.4 GHz: < 20 dBm (CE/SRRC/FCC)

5.1 GHz: < 20 dBm (FCC/CE/SRRC)

5.8 GHz: < 20 dBm (FCC/SRRC) | < 14 dBm (CE)

Bluetooth

Protocol

Bluetooth 5.0

Operating Frequency
