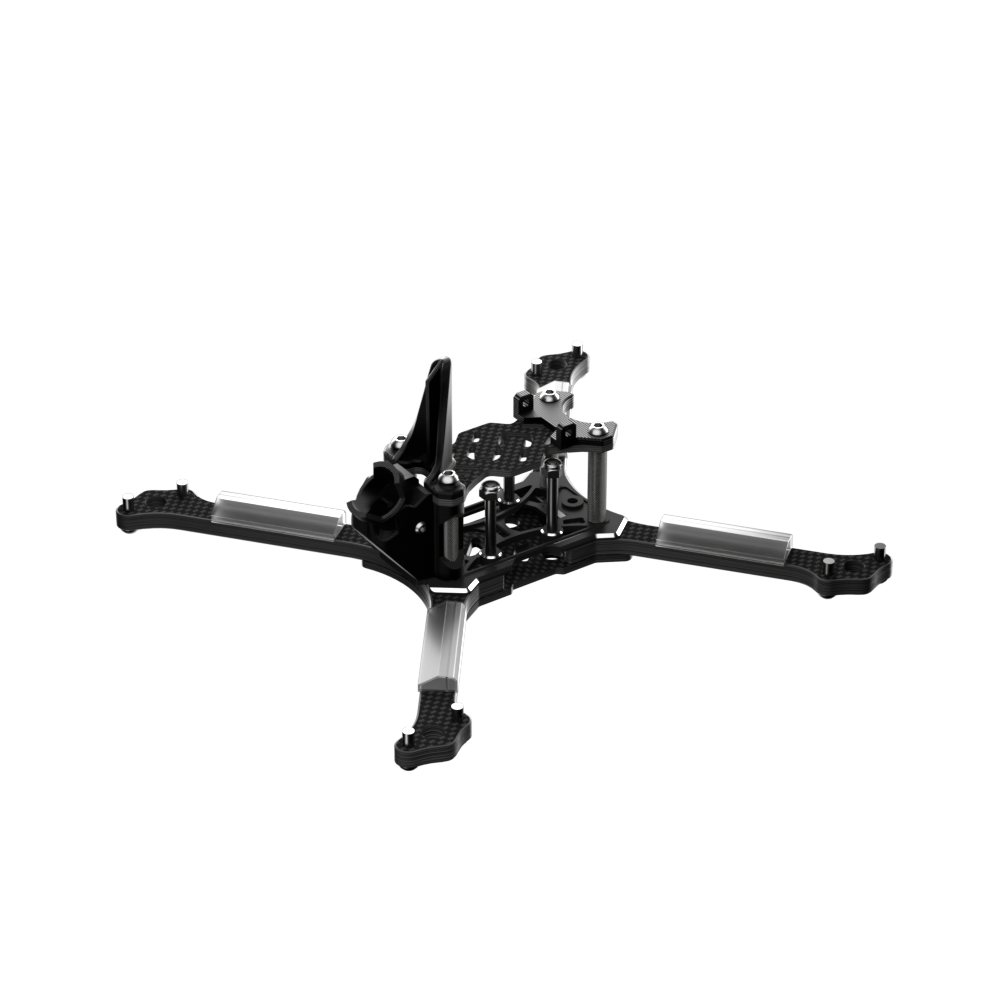

Mach R5 Ultra Trainer 190mm 5 Inch Frame Kit Compatible with Analog / HDZero VTX for DIY RC FPV Racing Drones

Note:
1. Tolerance Note: Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.

2. Comes unassembled. Need build by buyers.

Specifications:
Product Name: Mach R5 Ultra Trainer Race Frame Kit
Wheelbase: 190mm
Frame Dimension: 157*148*33mm
Top Plate: 2mm
Arm Thickness: 5mm
Bottom Plate Thickness: 2mm
Upper Plate Thickness: 2mm
Maximum Flight Stack Height: 22mm
Max VTX Height: 22mm
FC Mounting: 20*20/Φ3 mm
VTX Mounting: 20*20/Φ3 mm
Motor Mounting: 16*16/Φ3mm
Weight: 73±3g
Compatibility(not included): BLITZ Mini Force 600mW VTX, BLITZ RACE 5.8G 25mW VTX/HD Zero Race V3

Recommended parts(not included):

FC&ESC: 20x20mm iFlight BLITZ Mini F7 V1.1 FC 55A Stack

Burshless Motor: iFlight XING2 2207 1855KV motor

Propeller: 2 Pairs HQ Freestyle Prop 5X4.3X3V2S 5043 3-Blade Propeller

Lipo Battery: TATTU R-LINE 3.0 6S 22.2V 1400mAh 120C 6S1P LiPo Battery XT60

VTX: BLITZ Mini Force 600mW VTX / BLITZ RACE 5.8G 25mW VTX / HD Zero Race V3

Packing Included:
1 x Mach R5 Ultra Trainer Frame Kit (Non-assembled)
2 x Battery straps
1 x TPU Set
2 x Anti-slip Battery Pads
4 x Motor Wire Shield Tube
1 x Screw Bag
