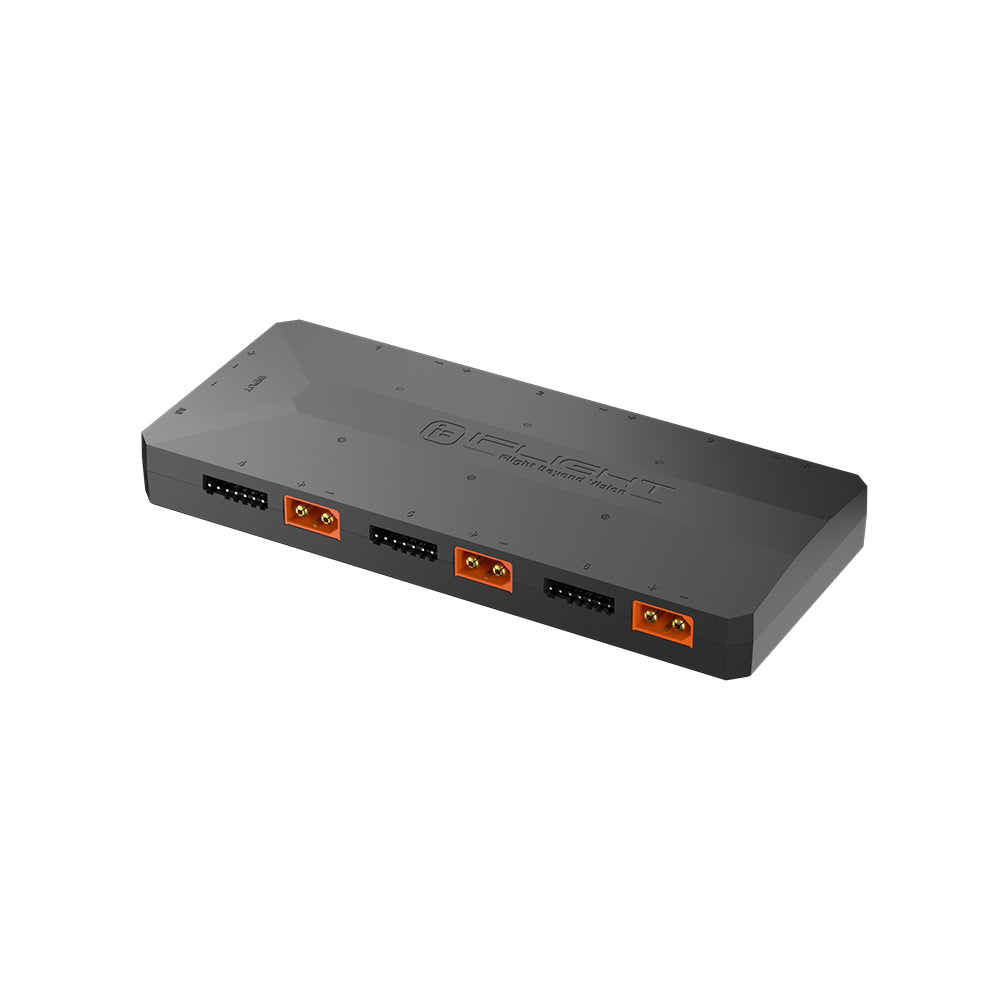

Dock 6-Channel Smart Charging Hub External Expansion Module for Dock Smart RC Charger 2-6S LiPo LiHv Batteries Charge - Black

Description:
When connected to the Dock 6 charger, this expands the charger's battery interface to 6 channels, supporting LiPo/LiHv battery charging (mixed charging is not supported). The system automatically identifies and sorts batteries, charging them sequentially from highest to lowest remaining charge; storage or discharging occurs sequentially from lowest to highest remaining charge.

During use, if a battery is connected but not to a power adapter, to prevent over-discharge, the system will automatically shut down after 10 minutes of inactivity. The system will resume operation after the battery is reinserted.

Specification:
Item Name: Dock 6-Channel Smart Charging Hub
Battery Input Voltage: 2-6S
Charging Current: Max 15A
Battery Balancing Current: Max 2A
Dimensions: 167mm*72mm*22mm
Weight: 137±5g

Package included:
1 x iFlight Dock 6-Channel Smart Charging Hub
