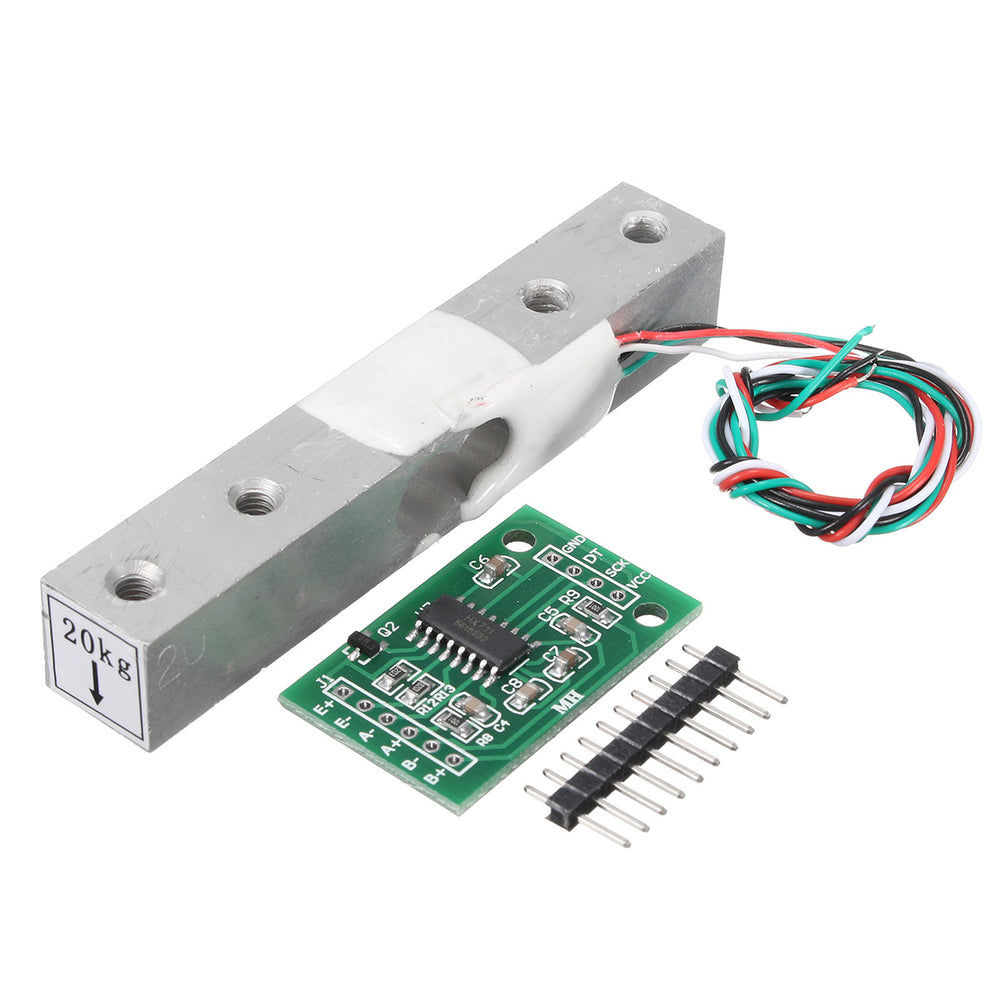

HX711 Module + 20kg Aluminum Alloy Scale Weighing Sensor Load Cell Kit
$2.99
In Stock
Description
- Voltage: DC3-5V
Parameter:
Comprehensive error: 0.05% F.S Rated output temperature drift: ≤ 0.15% F.S / 10 ℃ Output Sensitivity: 1.0 ± 0.1 mV / V Zero drift: 0.05% F.S (1 minute) Zero point temperature drift: 0.2% F.S / 10 ° C Zero output: ± 0.1 mV / V Input impedance: 1000 ± 50Ω Output impedance: 1000 ± 50Ω Overload capacity: 150% F.S Recommended excitation voltage: 5-10V Operating temperature range: -10 ~ +50 ℃ Application: for high-precision small-scale weighing for micro-automatic testing equipment, micro-weighing equipment, pushing and pulling equipment, pull pressure test Red: E + Black: E- White: A- Green: A +
Package included:
1 x Weighing Sensor Load Cell 1 x HX711 Module
Comprehensive error: 0.05% F.S Rated output temperature drift: ≤ 0.15% F.S / 10 ℃ Output Sensitivity: 1.0 ± 0.1 mV / V Zero drift: 0.05% F.S (1 minute) Zero point temperature drift: 0.2% F.S / 10 ° C Zero output: ± 0.1 mV / V Input impedance: 1000 ± 50Ω Output impedance: 1000 ± 50Ω Overload capacity: 150% F.S Recommended excitation voltage: 5-10V Operating temperature range: -10 ~ +50 ℃ Application: for high-precision small-scale weighing for micro-automatic testing equipment, micro-weighing equipment, pushing and pulling equipment, pull pressure test Red: E + Black: E- White: A- Green: A +
Package included:
1 x Weighing Sensor Load Cell 1 x HX711 Module
