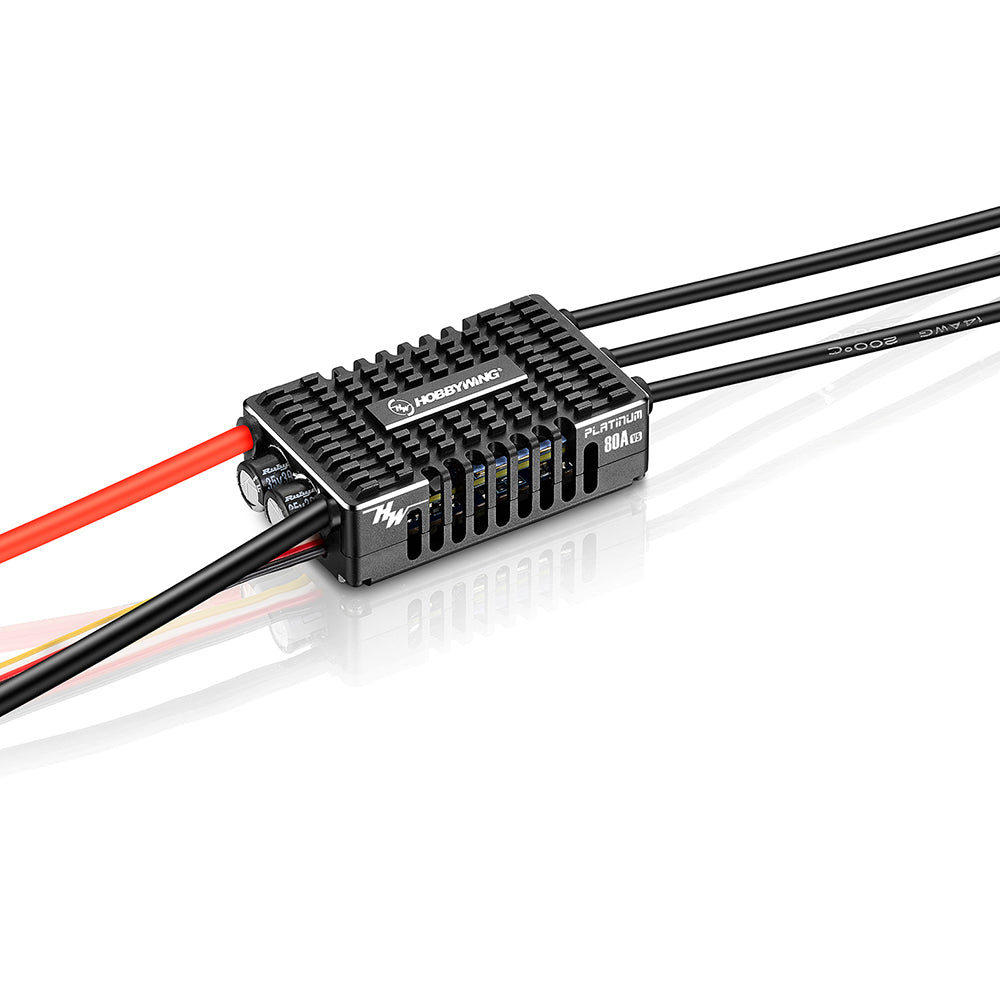

Hobbywing Platinum 80A V5 VBar Telemetry Ready Brushless ESC for Helicopter
Description
Product Name |
|
Platinum 80A V5 |
Product Number |
|
30203201 |
Type |
Brushed/Brushless |
BL |
High Voltage/Regular |
Regular |
|
|
Specifications |
Cont./Peak Current |
80A/120A |
Input Voltage |
3-8S Lipo |
|
BEC Output |
Switch Mode：5-12V & Cont. 8A，Peak 20A |
|
|
Wires & Connectors |
Input Wires |
Red-12AWG-100mm*1/Black-12AWG-100mm*1 |
Output Wires |
Black-14AWG-100mm*3 |
|
Input Connectors |
No |
|
Output Connecotors |
3.5mm Gold Connectors (Female) |
|
|
ESC Programing via |
Transmitter |
Not Supported |
LED Program Card |
Not Supported |
|
LED Program Box |
Not Supported |
|
LCD Program Box |
Supported |
|
OTA Programmer |
Supported |
|
Program Port |
Separate Program Port |
|
Firmware |
Firmware Upgrade |
Supported |
Telemetry Function |
|
Mikado VBar；Futabas S.Bus2；etc. |
Size & Weight |
Size |
60.5*33*17.6mm (without fan) |
Weight |
77.5g (with wires, no fan) |
|
Application scope |
|
325-420 class electric helicopter (main blade length 325-420mm),or fixed-wing |
Features:
1.High-quality brushless ESC engineered for smooth and efficient performance.
2.Double-sided open design enhances heat dissipation, solving the "sandwich" stacking circuit heat issue.
3.Side window design allows airflow through the ESC interior for rapid heat removal from circuit components.
4.Capacitor heat dissipation structure with thermal adhesive for additional cooling support to external capacitors.
5.Advanced fin and duct design channels powerful airflow from the cooling fan, boosting heat dissipation and improving stability.
Package Included:
1x Hobbywing Platinum 80A V5 VBar Telemetry Ready Brushless ESC
