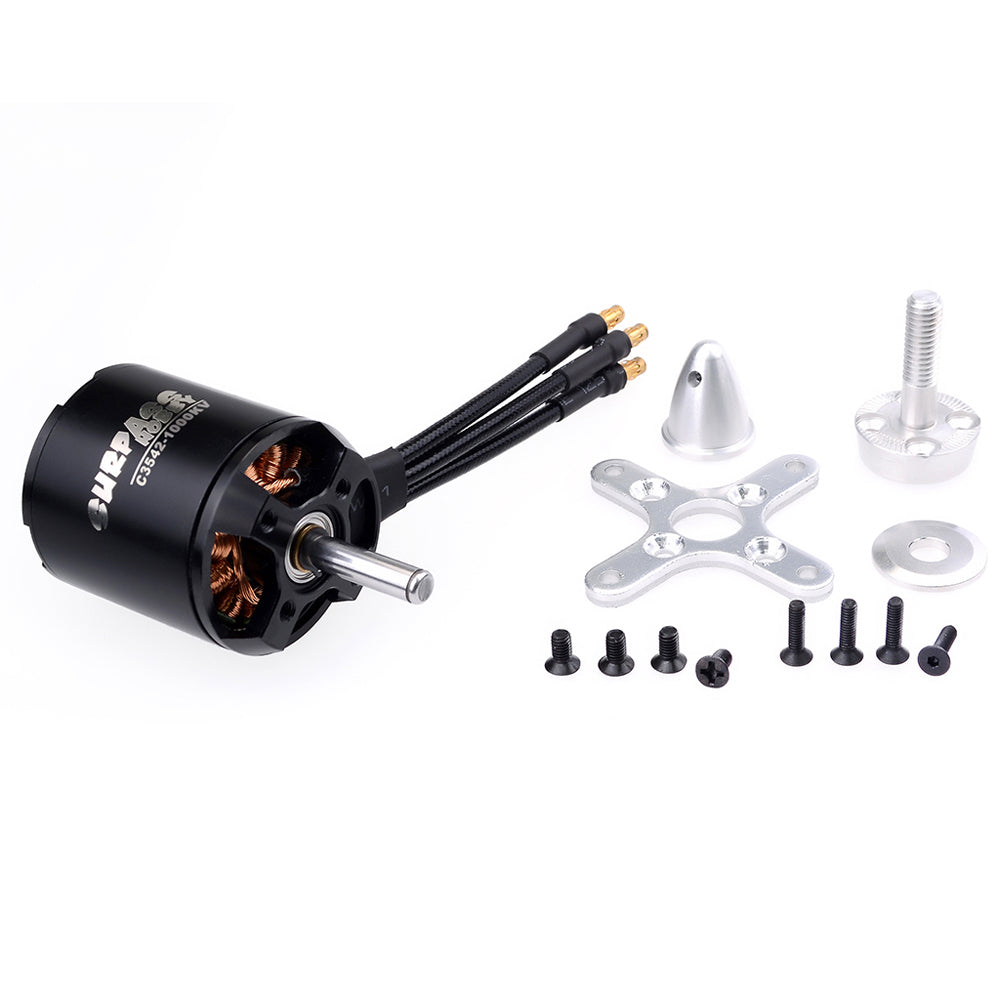

Hobby C3542 1000KV/1250KV/1450KV Outrunner Brushless Motor for RC Airplane Fixed-wing EDF Ducted Fan Unit
$210.52
Out of Stock
Description
- RC Drone Spare Parts: Motor
- Motor: Brushless
- Motor Rpm: 1000-1500KV
Item Name: C3542 Motor KV: 1000KV, 1250KV, 1450KV (optional) Color: Black
Shaft: 5.0mm
Connector: 3.5mm
Application: Suitable for RC Airplane Fixed-wing EDF Ducted Fan UnitSpecifications:
| Model | KV | Max Watts(W) | Voltage Range(V) | Max Current(A) |
Rotor Poles |
No load Current(A) | Resistance(Ω) | Motor Size(mm) | Stator Size(mm) | Weight(g) | Prop(Inch) |
| C3542-04 | 1450 | 1050 | 7~15 | 78 | 14 | 2.3 | 0.021 | ï¿ 35x42 | ï¿ 28x20 | 132 | 12*5/11*7/13*8 |
| C3542-05 | 1250 | 850 | 7~15 | 65 | 14 | 2.1 | 0.026 | ï¿ 35x42 | ï¿ 28x20 | 132 | 8*7/9*5/10*4 |
| C3542-06 | 1000 | 750 | 7~15 | 55 | 14 | 2 | 0.039 | ï¿ 35x42 | ï¿ 28x20 | 132 | 10*6/12*6.5/13*8 |
- 14Pole 12Slot Hi-torque Motor Design.
- CNC Machined 6061 for T6 Billet Aluminum Heatsink Can.
- High Purity Copper Windings Maximizes Efficiency.
- High RPM ABEC5 Oversized Bearings.
- Precision balanced rotor, smoothness for best reliability and maximum RPM.
- Stator - Super Thin (0.2mm) Laminations.
- Precision Engineered for Maximum Energy Conversion.
- The outer rotor dynamic balance is controlled within 10mg, ensuring no abnormal noise, no jitter, and smooth running.
- The motor adopts waterproof design and related waterproof technology, which has a certain anti-corrosion function, and runs normally in the rain.
Package Included:
1x LinkMejor Hobby C3542 Outrunner Brushless Motor 1x Accessories
