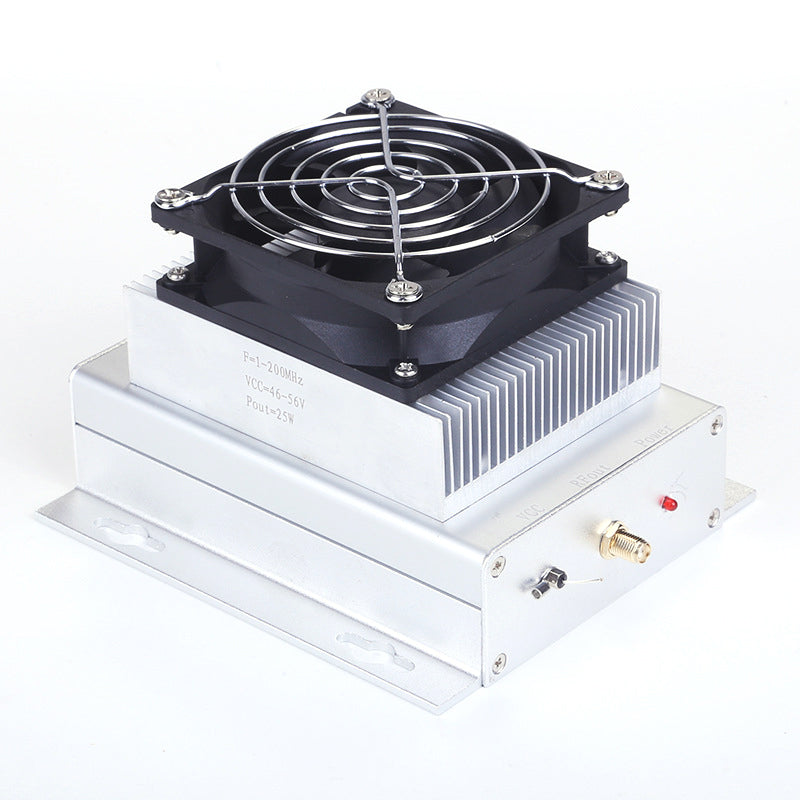

High Frequency Broadband Power Amplifier 1-200MHz 25-50W 35dB Gain 50 Ohm SMA Female 46-56V RF Signal Amplifier Module - Black

Specification

Module Name: WPA1M200M25W

Frequency Range: 1MHz to 200MHz

Gain: 35dB

Maximum Output Power: 47dBm / 50W

Supply Voltage: 46V to 56V

Supply Current: 1A to 1.5A

System Impedance: 50Ω

Load VSWR: Less than 2.5

Weight: 620g

Dimensions: 130 x 110 x 45mm

Interface Type: SMA female

Maximum Supply Voltage: 58V

Maximum Supply Current: 1.5A

Maximum Frequency Range: 230MHz

Maximum Input Power: 20dBm

Maximum Operating Temperature: 50°C

Features

1) Wide Frequency Range

Supports 1 MHz to 200 MHz, covering shortwave, VHF, FM broadcasting, and frequency bands commonly used in scientific research instruments.

2) High Output Power

Maximum output power reaches 50 W (typical range: 25–50 W), meeting requirements for medium-to-high frequency signal amplification.

3) High Gain

Module gain is 35 dB; recommended input power is 10–17 dBm, with an optimal input of 12 dBm.

4) High Efficiency

Efficiency reaches up to 65%; the unit is energy-efficient, stable, and suitable for continuous operation.

5) Wide Power Supply Range

Supports 46–56 V DC power input with an operating current of 1–1.5 A, making it compatible with various power systems.

6) Standard Interfaces

Features an SMA female RF interface and 50 Ω system impedance, facilitating easy connection to standard RF systems.

7) Rugged Construction

Housed in a fully shielded metal casing (dimensions: 130 × 110 × 45 mm; weight: 620 g), it offers excellent heat dissipation and is suitable for embedded installation.

Package Included

1 x High Frequency Power Amplifier Module
