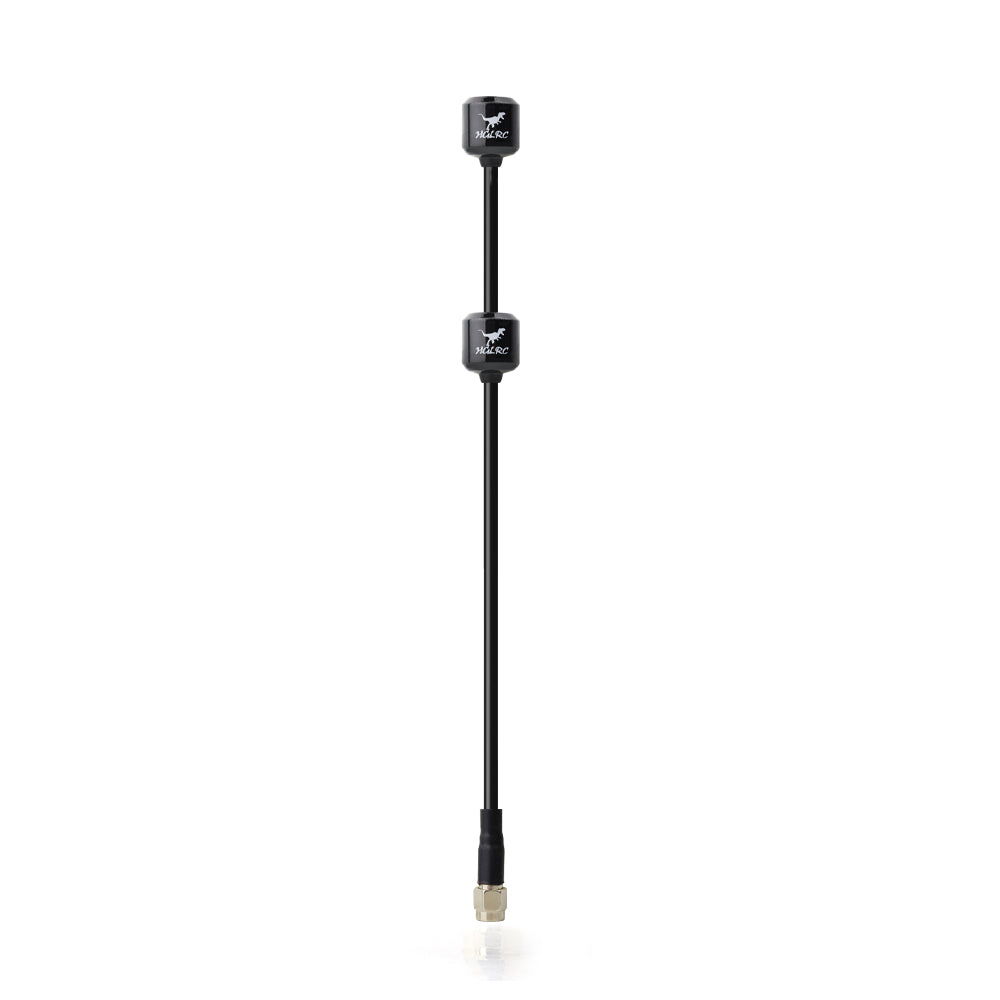

HGLRC Hammer 5.8GHz FPV Antenna - LHCP/RHCP 170/200mm, Dual SMA, High Gain for Goggles & VTX
Description
Best 5.8GHz FPV drone antenna 2025
Feature:
* Dual RF Architecture: Combines dual-antenna design with dual-channel transmission to enhance link stability, improving signal coverage by 30% compared to single-antenna systems.
* Anti-Interference Performance: Operates on the 5.8GHz high-frequency band to ensure reliable transmission in complex environments.
* Dynamic Compatibility: Utilizes RF field superposition technology for omnidirectional signal coverage, maintaining stable connectivity during flight attitude changes.
* Transmission Efficiency Optimization: Low VSWR design combined with Orthogonal Frequency Division Multiplexing (OFDM) technology enhances radiation efficiency and extends transmission range.
* Industrial-Grade Quality Control: Precision impedance matching and batch consistency testing ensure stable high-frequency signal output.
Specification:
| Brand: | HGLRC |
| Product Name: | 5.8GHz Hammer Dual Antenna |
| Connector: | SMA male (inner pin) |
| Frequency Range: | 5.35GHz–6GHz |
| Max Gain: | 4.4dBi (5800MHz) |
| Min Gain: | 3.1dBi (5350MHz) |
| Avg Gain: | 3.75dBi |
| Max VSWR: | 1.75 (5300MHz) |
| Min VSWR: | 1.17 (5550MHz) |
| Avg VSWR: | 1.46 |
| Max Radiation Efficiency: | 81% (5550MHz) |
| Min Radiation Efficiency: | 66% (5350MHz) |
| Avg Radiation Efficiency: | 73.5% |
| Polarization: | LHCP/RHCP(Optional) |
| Cross-Polarization Suppression: | -20dB |
| Axial Ratio: | ≤3 |
| Cable: | RG141 |
| Weight: | 13.8g (±0.5g) |
| Size: | Total length 170mm (±5mm) |
Package included:
1 × HGLRC 5.8G Hammer Dual Antenna
