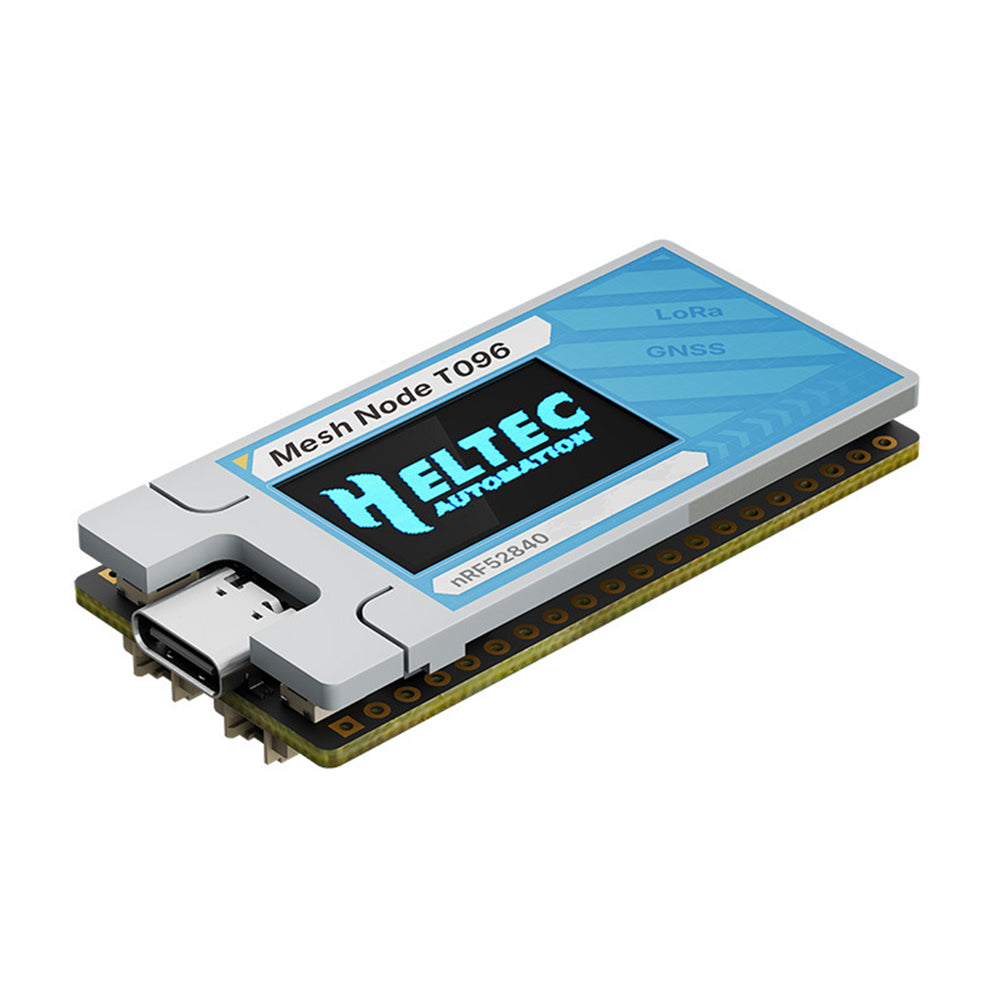

Heltec Mesh Node T096 Development Board Meshtastic Tracker nRF52480 SX1262 28dBm High Power Chip Support LoRa Meshcore
Description
Specification
MCU |
nRF52840 |
LoRa Chip |
SX1262 |
GNSS Chip |
UC6580(L1+L5) |
Frequency |
863~928MHz |
Max. TX Power |
28±1dBm |
Bluetooth LE |
Bluetooth 5, Bluetooth mesh |
Hardware Resource |
USB 2.0, 2 x LEDs, 2 x Buttons, 4 x SPI, 2 x TWI, 2 x UART, 4 x PWM, QSPI, I2S, PDM, QDEC Etc. |
Interface |
Type-C USB, 1.25-2P lithium battery connector, 1.25-2P solar panel connector, LoRa ANT (IPEX1.0), GNSS ANT (IPEX1.0), 2 x 13 x 2.54 Header Pin |
Power Supply |
USB-C 5V; Lithium battery 3.7V (3.3-4.2V) |
Operating Temperature |
-20 ~ 70 ℃ |
Dimensions |
52.00*25.40*10.26 mm |
Features
1) Supports Bluetooth, LoRa, and GNSS communication.
2) Ultra-low power consumption.
3) Maximum output power of 28±1dBm, and the LNA can be bypassed.
4) Supports GPS, GLONASS, BDS (BeiDou), Galileo, NAVIC, and QZSS.
5) Integrated lithium battery management system (charge/discharge management, overcharge protection, battery power detection, automatic switching between USB and battery power).
6) USB-C interface with comprehensive voltage regulation, ESD protection, short circuit protection, and RF shielding.
7) Supports the Arduinos development framework, providing LoRa/LoRaWAN examples.
8) Compatible with Meshtastic and MeshCore.
Package Included
1 x Board
2 x Pin Header
2 x SH1.25×2 Battery Connector
Optional:
1 x Antenna
1 x Spring
