V14-P 2.4GHz Built-in 1000mW ELRS Hall Sensor Gimbal Open Source EdgeTX LCD Screen Radio Transmitter for FPV Racing Drone
Description

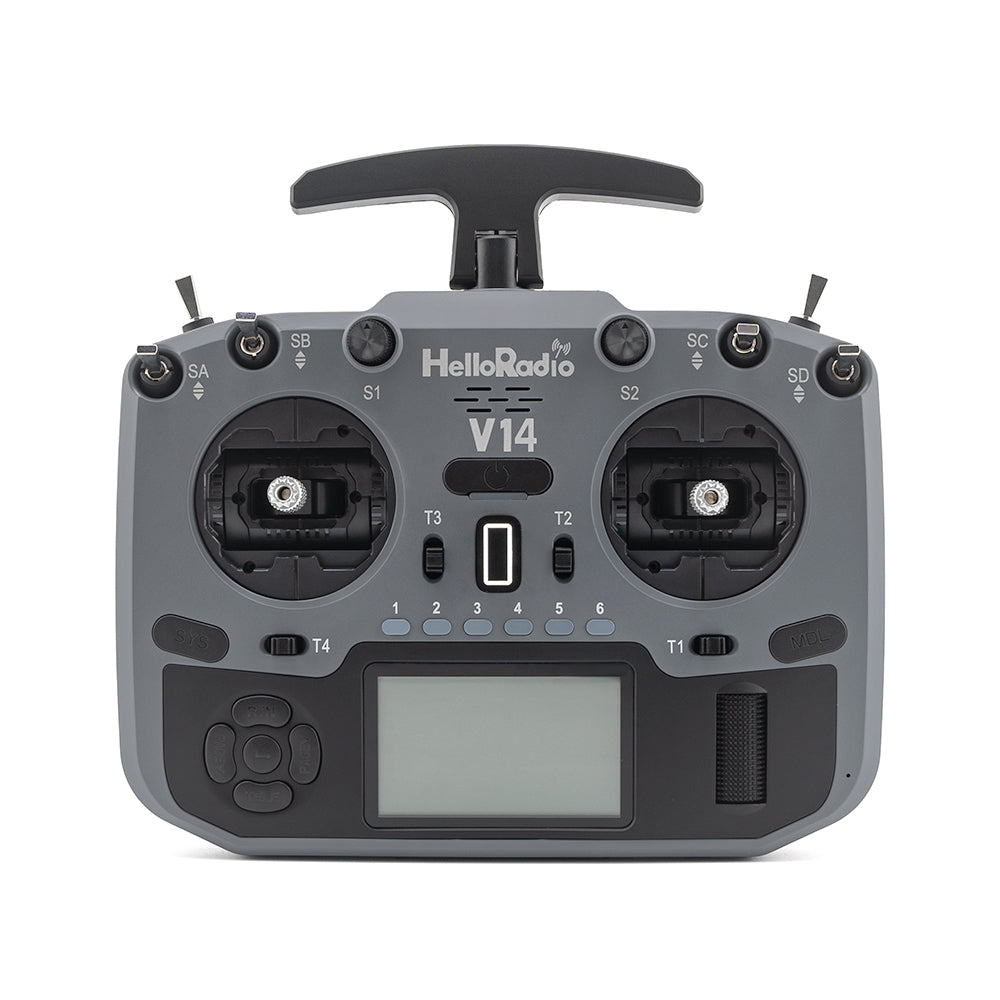

HelloRadioSky V14-P 2.4GHz Built-in 1000mW ELRS Hall Sensor Gimbal Open Source EdgeTX LCD Screen Radio Transmitter for FPV Racing Drone
Specification:
Item: V14-P
Product Size: 182x132x54mm
Product Weight: 350g
Frequency: 2.400GHz-2.480GHZ
Internal RF Options: Expresslrs
moduleTransmit Power: Expresslrs default 100mW, Max 1000mW
Remote Control Distance: >2KM@22DBM
Operating Current: 250mA
Operating Voltage: 6.6-8.4V
Open Source Firmware: EdgeTX
Channels: Max 16CH (Receiver dependent)
Rocker: Hall sensor
Upgrade Method: Support USB online upgrade or SD card offline upgrade
Display: 128x64 px Black and white LCD display
Battery Bay: Standard 18650 battery bay;support 21700-5000mAH
External HF Bay: Standard JR size
Item |
V14 MAX R9 |
V14 MAX |
V14-P |
V14 |
Rocker |
RDC9 sensor |
Hall sensor |
Hall sensor |
Hall sensor |
Joystick material |
CNC Metal |
CNC Metal |
plastic |
plastic |
Built in high-frequency head |
4N1 or ELRS |
4N1 or ELRS |
ELRS |
ELRS |
Built in high-frequency head power |
Maximum 1000MW |
Maximum 1000MW |
Maximum 1000MW |
Maximum 250MW |
Colored shell |
√ |
√ |
/ |
/ |
Voice assistant |
√ |
√ |
√ |
/ |
Somatosensory control |
√ |
√ |
√ |
/ |
Security Guard |
√ |
√ |
√ |
/ |
Programmable aperture |
√ |
√ |
√ |
/ |
Package Included:
1 x HelloradioSky V14-P Radio Transmitter
1 x Battery case
1 x USB Cable
1 x User Manual
