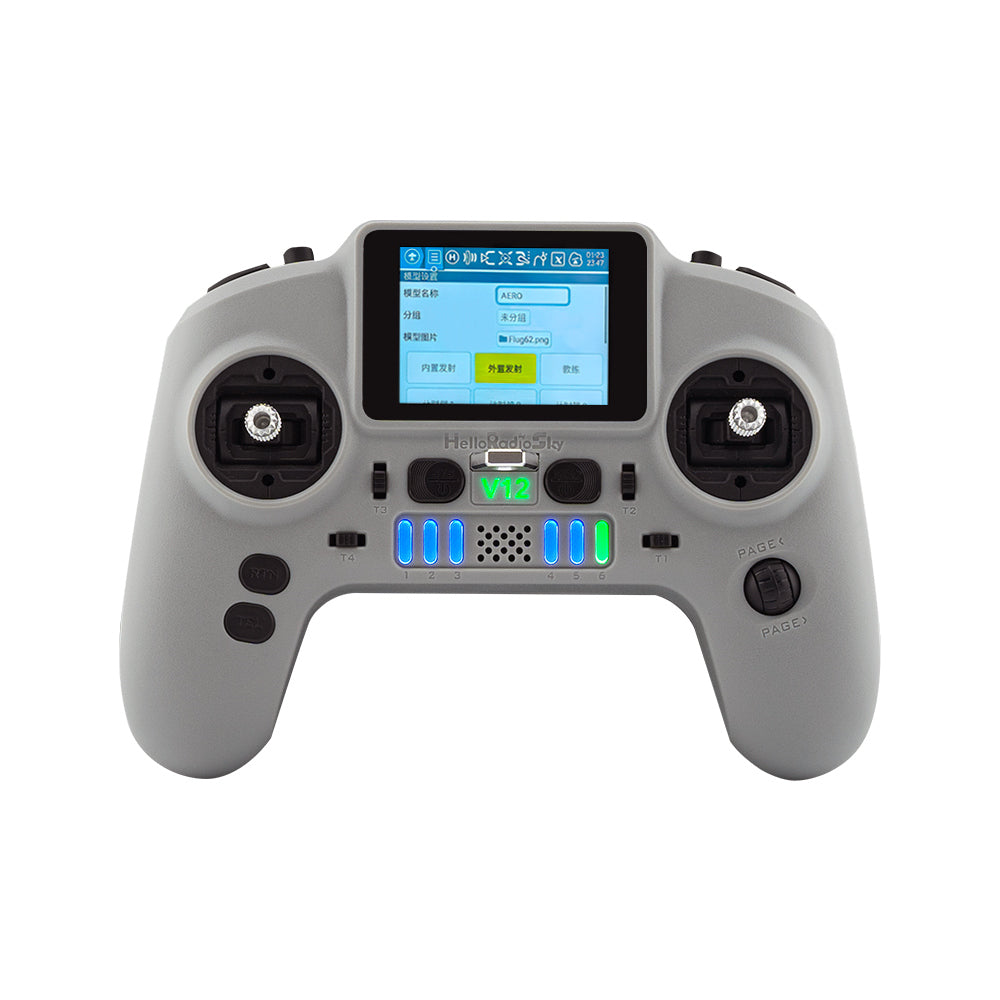

HelloRadioSky V12 2.4GHz Dual Frequency ELRS Radio H7 1000mW 2.4Inch Color Screen Display EdgeTX Remote Controller for FPV Racer Drone RC Airplane - Grey
Description
HelloRadioSky V12 2.4GHz Dual Frequency ELRS Radio H7 1000mW 2.4Inch Color Screen Display EdgeTX Remote Controller for FPV Racer Drone RC Airplane
Specification:
Brand: HelloRadioSky
Model: V12
Transmission Frequency: 2.4GHz
Main Control Chip: STM32H750XBH6
ELRS Transmitter Chip: LR1121
Transmitter Module: Built-in ExpressLRS high-frequency module
Number of Channels: More than 12 channels (depending on the receiver)
Operating Current: 260mA
Operating Voltage: 6.6-8.4V DC
Software System: EdgeTX
Display: 2.4-inch TFT color screen
Fan: Dual-channel turbine fan
Power Supply: 2*21700 batteries (batteries not included)
Upgrade Method: Supports USB online upgrade
Dimensions: 179*125*55 mm
Weight: 360 grams (batteries not included)
Model: |
V12 |
V12CNCMAX |
Main Control |
H750 |
H750 |
Built-in ExpressLRS High-frequency Module |
Dual Frequency ELRS |
Dual Frequency ELRS |
TX Module Power |
Max 1000mW |
Max 1000mW |
Antenna |
Single Internal Antenna |
Dual Internal External Antenna |
Gimbal Sensor |
Hall |
Hall |
Gimbal Material |
Plastic |
CNC Aluminum |
Button Material |
Plastic |
CNC Aluminum |
Shell |
Grey |
Color Optional |
Screen |
2.4-inch Screen |
2.4-inch Screen |
Package included:
1 x HelloRadioSky V12 Radio Transmitter
