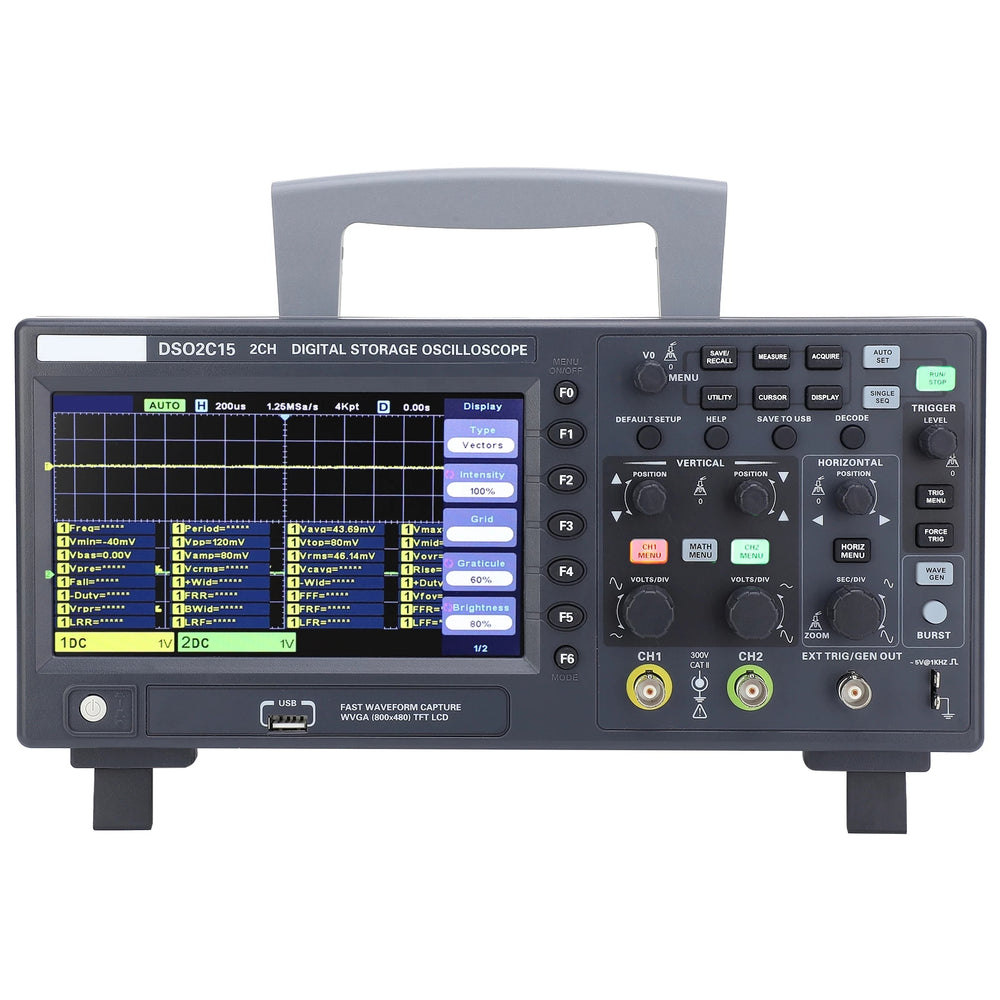

Hantek DSO2C15 150MHz 1GSa/s Sampling Rate Dual-Channel Digital Storage Oscilloscope

Hantek DSO2C15 150MHz 1GSa/s Sampling Rate Dual-Channel Digital Storage Oscilloscope

$279.99

In Stock

Description

Note: The model is of DSO2C15 .

Feature:

1) 2 channels, both are respectively controlled by independent knobes;

2) 150MHZ analog channel bandwidth;

3) 1 GSa/s real-time sample rate;

4) 8M memory depth;

5) Vertical range 2mV/div ~ 10V/div;

6) Vertical resolution : 8bit;

7) Trigger: Edge, Pulse width, Video, Slope, Overtime, Window, Pattern, Interval, Delay, UART, LIN, CAN, SPI, IIC;

8) CAN decode and protocol analysis: RS232/UART、I2C、SPI、CAN、LIN

9) Can save as multiple data formats, such as setting, waveform, referance waveform, CSV, picture;

10) 5 bits digital voltage meter and 6 bits hardware frequency indicator function;

11) 32 kinds of auto measurements with statistics, real-time statistics of maxmum, minimum, standrad deviation and etc.;

12) 2 sets of digital voltmeter;

13) Support threshold testing, free measurements within the screen;

14) Abundant SCPI remote command control;

15) Many external interface: USB Host/Device.

Product Model(NOTE:Click on the model to reach the purchase link of the corresponding model)：

Model	Channels	Bandwidth	Sampling Rate	Storage Depth	Signal Source (AWG)
>>DSO2C10<<	2CH	100MHz	1GSa/S	8M	/
>>DSO2C15<<	2CH	150MHz	1GSa/S	8M	/
>>DSO2D10<<	2CH+1CH	100MHz	1GSa/S	8M	1CH
>>DSO2D15<<	2CH+1CH	150MHz	1GSa/S	8M	1CH

>>Please Click Here to Download the English User Manual<<

>>Click to Download DSO2000 Software<<

Specifications:

Model: DSO2C15

Channel: 2 CH

Bandwidth: 150MHz

Sample rate: 1GSa/S

Memory depth: 8M

AFG: Without

Parameters

Model	DSO2D15	DSO2D10	DSO2C15	DSO2C10
Bandwidth	150MHz	100MHz	150MHz	100MHz
Oscilloscope channels	2CH	2CH	2CH	2CH
Waveform generator	1CH	1CH	-	-
Oscilloscope
Sample rate	1GSa/s (single channel) 500MSa/s (two channels)
Acquisition
Sampling	Sample data
Peak-to-peak value	Display high frequency and random burr
Average	Average waveform, times: 4, 8, 16, 32, 64, 128
High resolution	Up to 12bit
Input
Input coupling	DC, AC, GND
Input impedance	1MΩ±2% ‖20pF±3pF
Probe attenuation factor	1X, 10X, 100X, 1000X
Voltage classes	300V CAT II
Maximum input voltage	300VRMS (10X)
Horizontal
Waveform interpolation	(sin x)/x
Maximum record length	Single channel maximum 8M
	Two channels maximum 4M
Horizontal scale range	2ns/div~100s/div 1, 2, 5 step by step
Time base mode	Y-T, X-Y, Roll
Zero offsets	±0.5 div×minimum time base gear
Sample Rate and Delay Time Accuracy	±25ppm
Clock drifting	≤±5 ppm/year
Increment Time Measurement Accuracy	single, ''acquisition'' mode
(Full Bandwidth)	±（1 sample interval+100ppm×reading+0.6ns）
	＞16 times averages
	±（1 sample interval+100ppm×reading+0.4ns）
	Sample interval=sec/div÷200
Sample Rate and Delay Time Accuracy	±50ppm（at any interval greater than 1ms）
Vertical
Model	DSO2D15	DSO2D10	DSO2C15	DSO2C10
Bandwidth	150MHz	100MHz	150MHz	100MHz
Rising time in BNC position (typical)	2.3ns	3.5ns	2.3ns	3.5ns
Vertical resolution	8 bits resolution, each channel samples simultaneously
Vertical sensitivity	2mV/div to 10V/div
Offsets range	2mV/div to 20mV/div, ±100mV; 50mV/div to 200mV/div, ±1V;
	500mV/div to 2V/div, ±10V; 5V/div to 10V/div, ±50V
Mathematical operation	+, -, ×, ÷, FFT
FFT	Window: Rectangular, Hanning, Hamming, Brackman, Bartlett, flat top window
